TED® Optima Jointers Tent by TRIGANO XL - Orange - 200 x 200 x 220cm

TED® Optima Jointers Tent by TRIGANO XL – Orange – 200 x 200 x 220cm

The TED® Optima Jointers Tent by TRIGANO XL – Orange – 200 x 200 x 220cm is a premium professional site shelter designed to provide telecommunications engineers and utility contractors with a spacious, weatherproof working environment during fibre optic splicing, jointing and maintenance operations. Offering 2m x 2m of internal workspace with a height of 2.2m, the XL design allows technicians to work comfortably while accommodating bulky equipment and multiple personnel.

Constructed from premium UV-treated, fire-retardant fabrics with a reinforced fibreglass frame, the tent provides exceptional protection from rain, wind, cold and direct sunlight. High-visibility orange PVC with retro-reflective strips improves technician safety during both daytime and night-time operations, while the white interior fabric maximises natural light without glare, making colour identification during fibre splicing easier.

The tent can be erected by a single person within seconds and features a full front opening, partial rear cable entry, removable awning panels, ventilation openings and an integrated tool storage pocket. Once work is complete, it folds into a compact waterproof carrying bag for convenient transport and storage.

Key Features:

• Extra-large 2m × 2m working area

• Fast single-person assembly and dismantling

• Total protection from rain, wind, cold and sun

• Reinforced fibreglass frame for excellent stability

• High-visibility orange finish with retro-reflective strips

• White interior improves natural light diffusion

• Partial rear opening for cable entry

• Two side ventilation openings

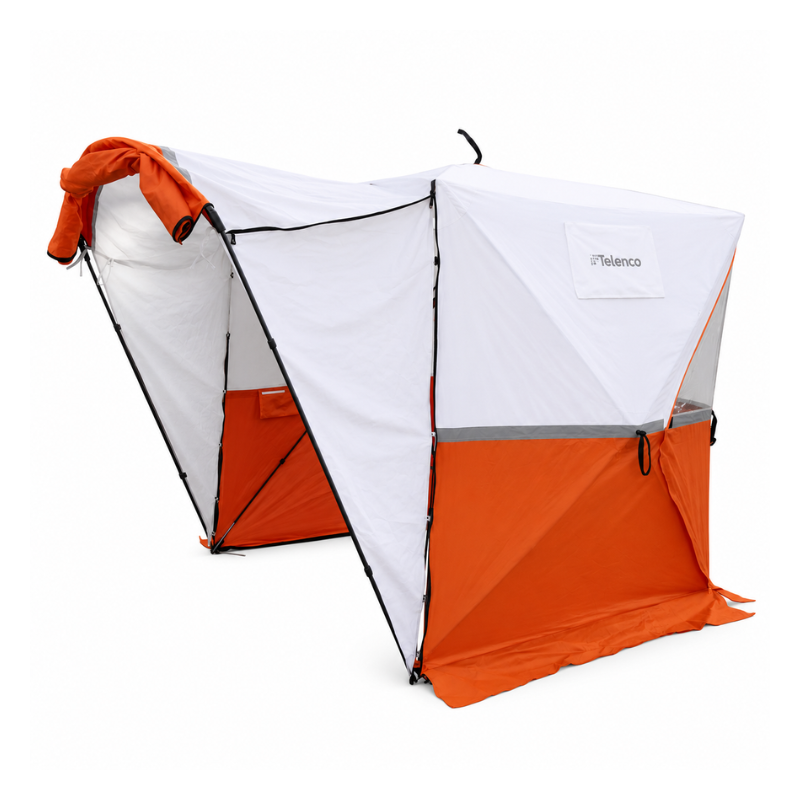

• Front awning with removable panels

• Waterproof carrying bag included

• Washable PVC fabric

• Internal storage pocket for tools

Technical Specifications:

• Product Type: Jointers Tent

• Brand: TED®

• Manufacturer: TRIGANO

• Model: Optima XL

• Colour: Orange

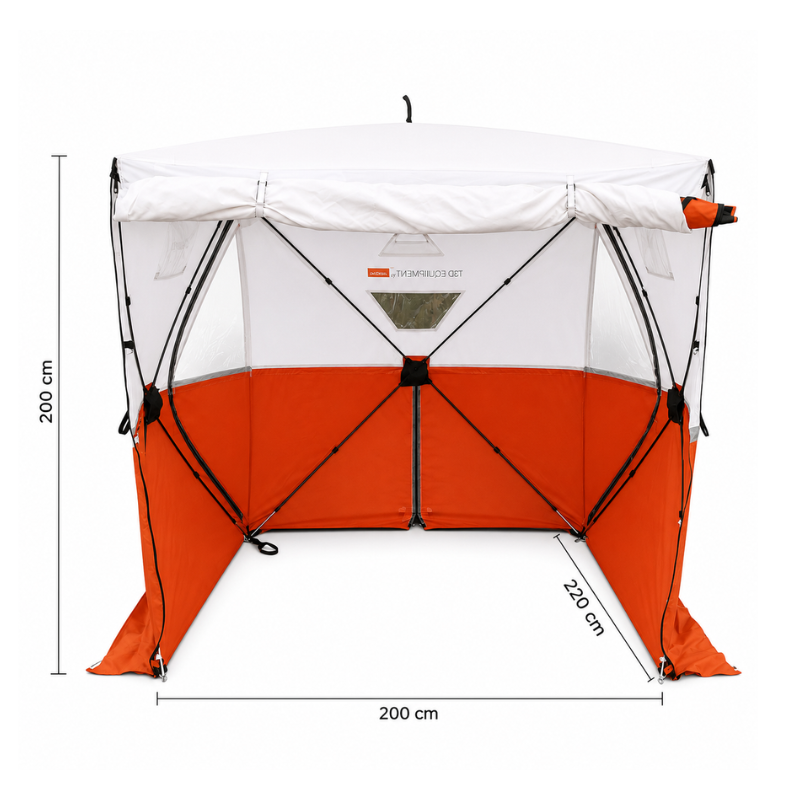

• Dimensions: 2000 × 2000 × 2200mm

• Weight: 24.15kg

Tent Construction

• Roof Fabric: 210D Oxford with PVC Coating

• Roof Rating: M2 Fire Retardant

• UV Protection: UV30+

• Side Fabric: 540g/m² Laminated PVC Tarpaulin

• Side Fabric Rating: M2 Fire Retardant

• Seam Sealing: Heat-Sealed Waterproof Tape

Frame

• 12.5mm Diameter Fibreglass Hoops

• Aluminium Central Connectors

• Nylon Ball Joint

• Pin-Lock Feet

• Two Forward Reinforcement Masts

Ventilation & Access

• Full Front Opening

• Partial Rear Cable Access with Zip

• Two Side Ventilation Panels

• Zip & Velcro Vent Closures

• Additional Ground Skirt

• Interior Tool Storage Pocket

Safety Features

• 50mm Retro-Reflective Strip Around Perimeter

• High Visibility Orange Finish

• Waterproof Construction

Carrying Bag

• Waterproof PVC

• Dimensions: 1400 × 270 × 270mm

Applications:

• Fibre optic splicing

• Fibre jointing

• Telecommunications maintenance

• Utility network installations

• Cable jointing

• Broadband network deployment

• Civil engineering projects

• Electrical maintenance

• Outdoor service work

• Highway and roadside interventions
