TED® Cobra Rod and Frame - Multiple Options

TED® Cobra Rod and Frame – Multiple Options

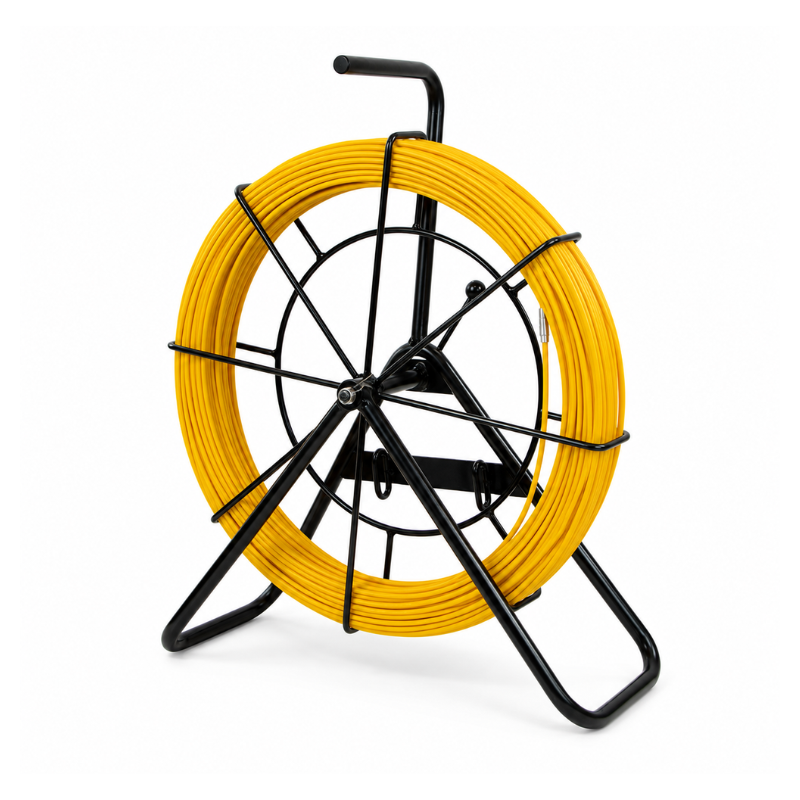

The TED® Cobra Rod and Frame is a professional-grade fibreglass rodding system designed for cable installation, duct proving and draw rope deployment across telecom, utility and civil engineering applications.

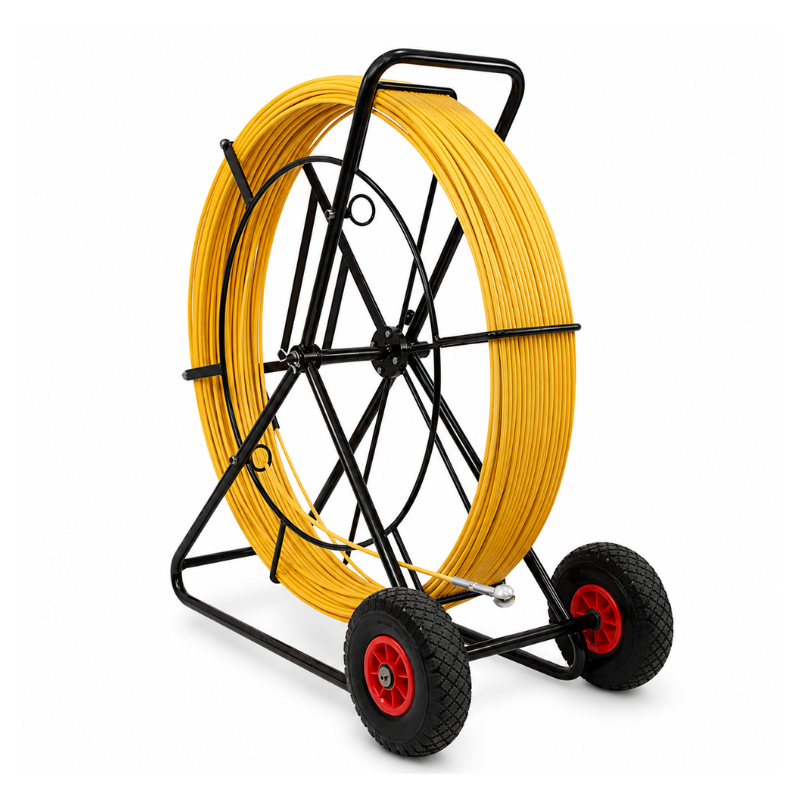

Built for durability and daily site use, the Cobra Rod features a heavy-duty continuous premium fibreglass rod mounted on a robust tubular steel frame with puncture-resistant solid wheels. Its modular design provides multiple working positions, allowing engineers to optimise rod handling and access ducts from different angles while improving operational efficiency.

The frame incorporates two removable guiding rings positioned at the upper and lower sections of the reel, helping achieve the best insertion angle while reducing operator effort during rod retrieval. An integrated rapid external braking system provides improved control and safety during unreeling operations.

Unlike traditional systems, the TED® Cobra Rod allows fast, secure rod replacement by a single engineer, making it a cost-effective long-term solution for cable installation contractors, telecom network operators and utility infrastructure teams.

Available in a range of rod diameters and lengths, including 6m, 60m, 100m, 150m, 200m, 250m, 300m and 350m options, the Cobra Rod system provides a versatile solution for everything from short internal routes to major underground duct networks.

Key Features:

• Heavy-duty continuous premium fibreglass rod

• Professional cable rodding and duct proving system

• Robust tubular steel frame construction

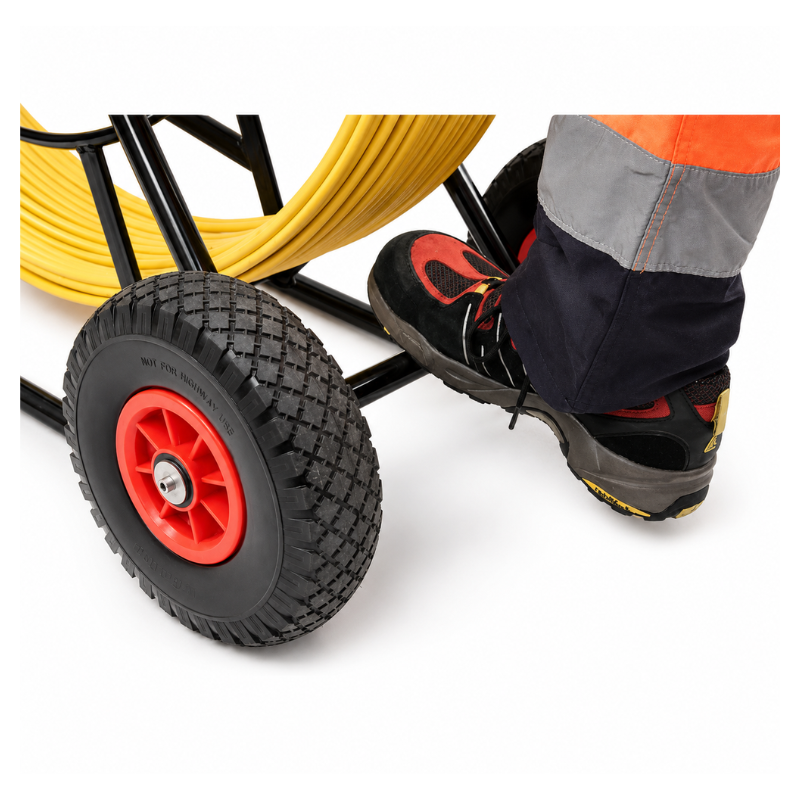

• Puncture-resistant solid wheels

• Two removable guiding rings

• Four working positions for improved flexibility

• One-person rod replacement process

• Rapid external braking system

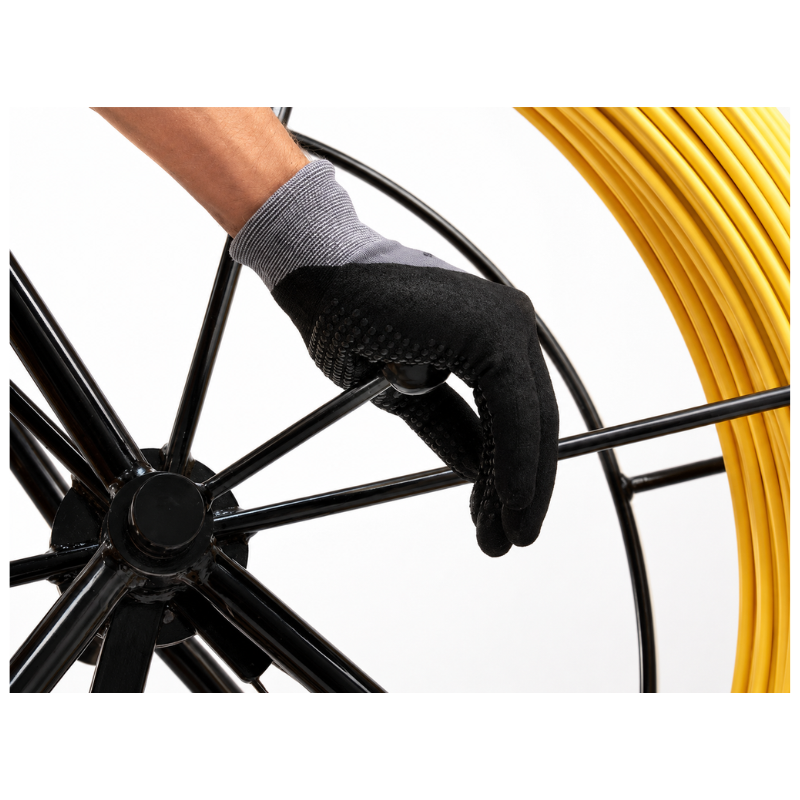

• Large foot and hand grip handles

• Secure rod replacement design

• Designed for daily professional use

• Suitable for cable installation and draw rope deployment

Technical Specifications:

Rod Diameters Available

• 9mm

• 11mm

• 14mm

Available Lengths

6mm Rod

• 60m

• 100m

• 150m

9mm Rod

• 100m

• 150m

• 200m

11mm Rod

• 150m

• 200m

• 250m

• 300m

• 350m

14mm Rod

• 100m

• 150m

• 200m

• 225m

Frame Features

• Tubular steel frame

• Two solid puncture-resistant wheels

• External rapid brake system

• Four working positions

• Two removable guide rings

Advantages:

Multiple Working Positions
Four operating positions provide greater flexibility when accessing ducts and cable routes.

Rapid Braking System
Integrated external brake improves control and safety during rod deployment and retrieval.

One-Person Operation
Secure rod replacement process can be completed by a single engineer.

Built for Daily Use
Heavy-duty frame and premium fibreglass construction designed for demanding site environments.

Improved Ergonomics
Upper guide ring assists rod rewinding and helps reduce operator strain.

Applications:

• Cable installation

• Duct proving

• Draw rope installation

• Fibre optic deployment

• Underground utility networks

• Telecom infrastructure projects

• Cable recovery operations

• Civil engineering works
