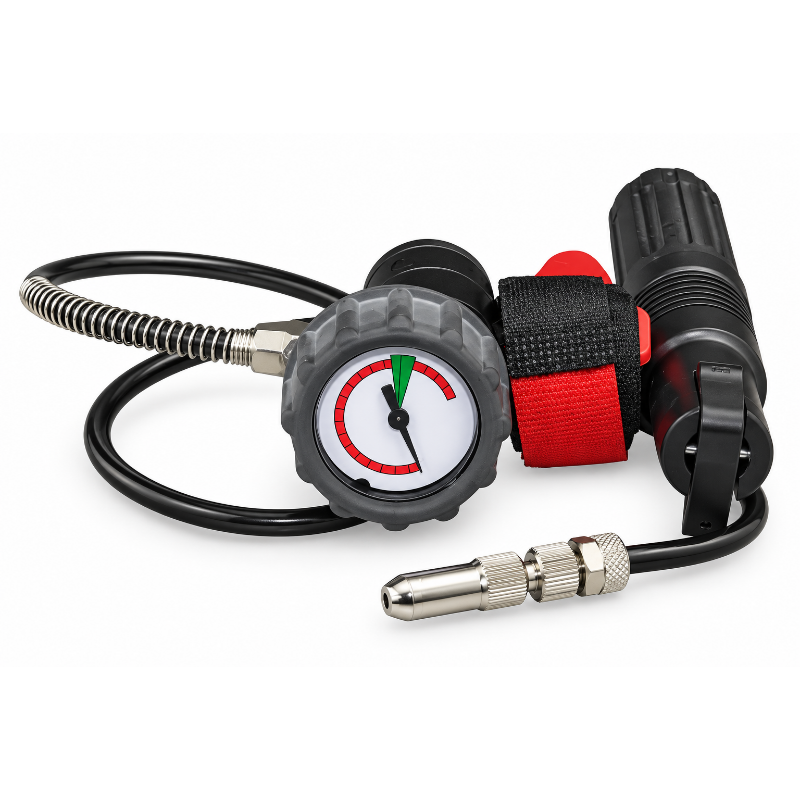

TDUX Duct Inflation Tool – CO2 Inflation Tool for Duct Seals

TDUX Duct Inflation Tool – CO2 Inflation Tool for Duct Seals

The TDUX Duct Inflation Tool is a specialist installation tool designed for inflating TDUX duct sealing systems used in telecommunications and underground cable infrastructure. Operating with 16g CO2 gas cylinders, the tool provides a controlled and efficient method of inflating compatible duct seals to the required pressure.

Featuring an automatic pressure monitoring system, the inflation tool maintains the specified inflation pressure of 3.0 ± 0.2 bar, helping ensure consistent installation of compatible TDUX duct seals.

A single 16g CO2 cylinder can inflate a minimum of three TDUK-100 duct seals in vacant ducts, providing a practical solution for telecommunications engineers carrying out multiple duct sealing operations.

The tool is supplied with a protective carrying case for convenient storage and transportation between installation sites. Its portable design makes it suitable for use in underground telecommunications chambers, cable ducts and utility infrastructure projects.

Designed for professional use, the TDUX Duct Inflation Tool supports effective duct sealing operations, helping installers achieve the required inflation pressure when installing compatible inflatable duct seals.

Key Features:

• Specialist inflation tool for TDUX duct sealing systems

• Operates using 16g CO2 gas cylinders

• Automatic pressure monitoring system

• Maintains inflation pressure of 3.0 ± 0.2 bar

• Provides controlled inflation of compatible duct seals

• One 16g CO2 cylinder inflates a minimum of three TDUK-100 seals in vacant ducts

• Suitable for underground telecommunications installations

• Portable design for convenient site use

• Supplied with protective carrying case

• Supports consistent duct seal installation

• Suitable for professional utility and telecommunications engineers

• Designed for use with compatible inflatable duct sealing products

Technical Specifications:

• Product Type: Duct Inflation Tool

• Model: TDUX

• Tool Function: Inflatable Duct Seal Installation

• Compatible Sealing System: TDUX Duct Seals

• Referenced Seal Type: TDUK-100

• Gas Type: Carbon Dioxide (CO2)

• Gas Cylinder Capacity: 16g

• Required Inflation Pressure: 3.0 bar

• Pressure Tolerance: ±0.2 bar

• Operating Pressure Range: 2.8–3.2 bar

• Pressure Monitoring: Automatic

• Inflation Capacity: Minimum 3 TDUK-100 Seals per 16g CO2 Cylinder in Vacant Ducts

• Carrying Case: Included

• Primary Application: Telecommunications Duct Sealing

• Pack Quantity: 1 Tool

Applications:

• TDUX inflatable duct seal installation

• Underground telecommunications duct sealing

• Fibre optic cable infrastructure

• Copper telecommunications networks

• Utility duct sealing operations

• Cable chamber installations

• Telecommunications network maintenance

• Underground duct infrastructure projects

• Vacant duct sealing

• FTTH and FTTP network installations

• Cable duct protection systems

• Professional duct sealing and maintenance
