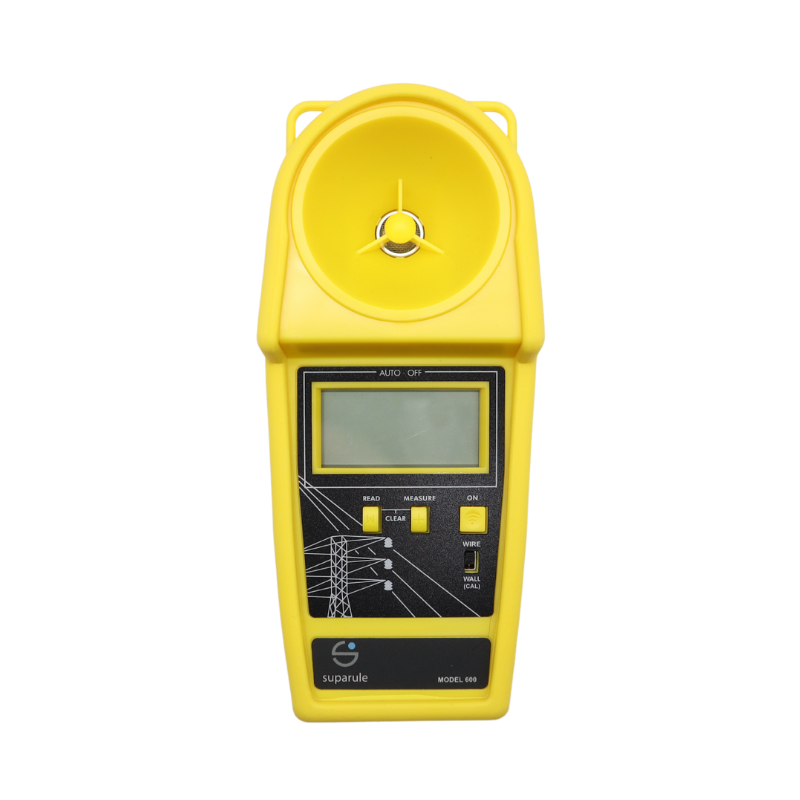

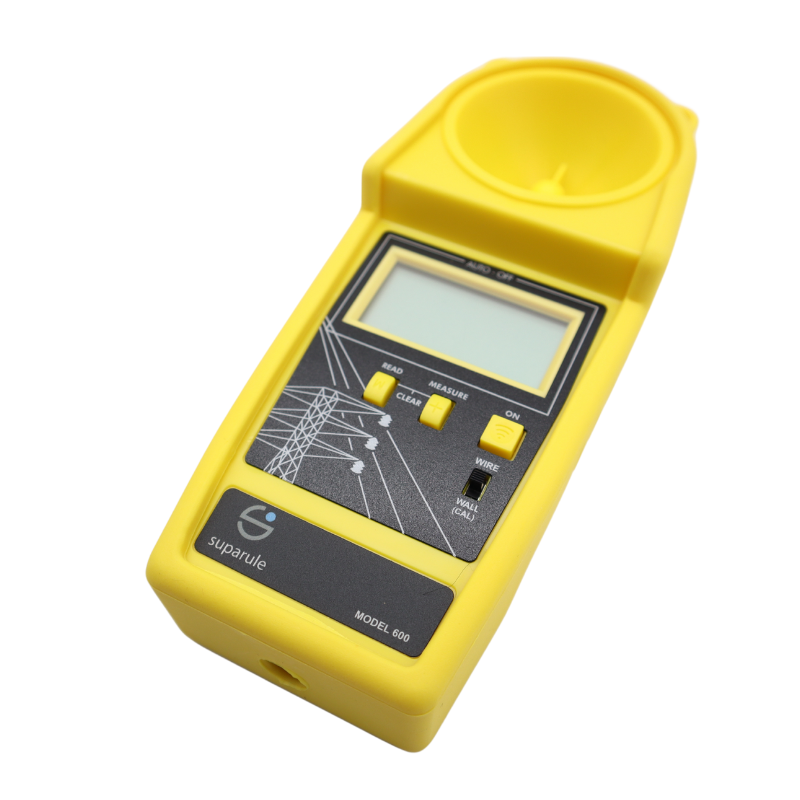

Product Description: Suparule Cable Height Meter (6 Cables - 15 Metres) CHM600

The Suparule Cable Height Meter CHM600 is a handheld ultrasonic measurement tool designed for precise, safe, and contact-free determination of the height, sag, and overhead clearance of power and telecom cables. Covering up to 15 metres for 6 cables, this device serves as a modern alternative to traditional telescopic measuring poles, enabling quick and accurate measurements of conductors up to 23 metres (75 ft) high with an accuracy of ±0.5% ± 2 digits.

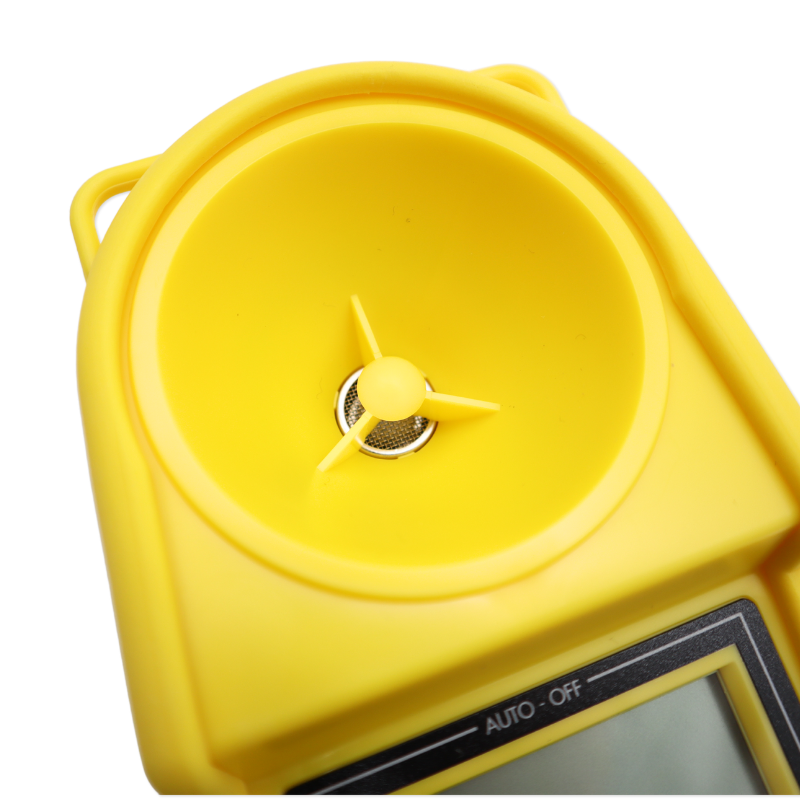

Built with advanced ultrasonic technology, the CHM600 uses sound wave reflection to provide reliable height readings without the need to physically access or touch cables, enhancing safety during inspections. It features built-in temperature compensation for consistent accuracy, a lightweight and compact design for easy portability, and a simple three-button interface for intuitive operation with minimal training required.

Designed for a wide range of applications including power line inspections, telecom cable measurements, street lighting clearance checks, and construction site assessments, the Suparule Cable Height Meter CHM600 delivers fast, precise, and dependable results for utility and infrastructure professionals.

Key Features & Benefits:

• Ultrasonic Measurement Technology: Accurate, contact-free height measurements via sound wave reflection.

• Safe Operation: No physical contact with cables needed, reducing risk during inspections.

• Fast & Accurate: Results in seconds with ±0.5% accuracy and resolution from 5mm to 10mm.

• Temperature Compensation: Automatically adjusts readings based on real-time air temperature.

• Compact & Lightweight: Weighs just 0.5kg for easy handheld use in the field.

• User-Friendly Interface: Simple three-button control for quick operation.

• Calibration Mode: Enables indoor use and verification of calibration status.

• Rugged & Low Maintenance: Long battery life and durable design for reliable field performance.

Applications:

• Overhead power distribution and transmission line inspections

• Telecommunication line height and sag measurement

• Street lighting clearance checks

• Cable clearance assessments on construction sites and roads

• Measuring cable sag from lowest point to ground

• Utility pole cable positioning and safety compliance

Technical Specifications:

• Accuracy: ±0.5% ± 2 digits

• Resolution: 5mm (<10m), 10mm (≥10m)

• Minimum Gap Between Wires: 150mm

• Maximum Measuring Height: 23 metres (75 ft)

• Operating Temperature Range: -10°C to +40°C

• Battery Life: Up to 50,000 measurements

• Dimensions: 205mm x 100mm x 70mm

• Weight: 0.5kg (1.1 lbs)

The Suparule Cable Height Meter CHM600 offers an efficient, safe, and accurate solution for cable height and sag measurement, making it an essential tool for utility, telecom, and construction professionals.
