Strip Duct 54D – 1m – Pack of 20

Strip Duct 54D – 1m – Pack of 20

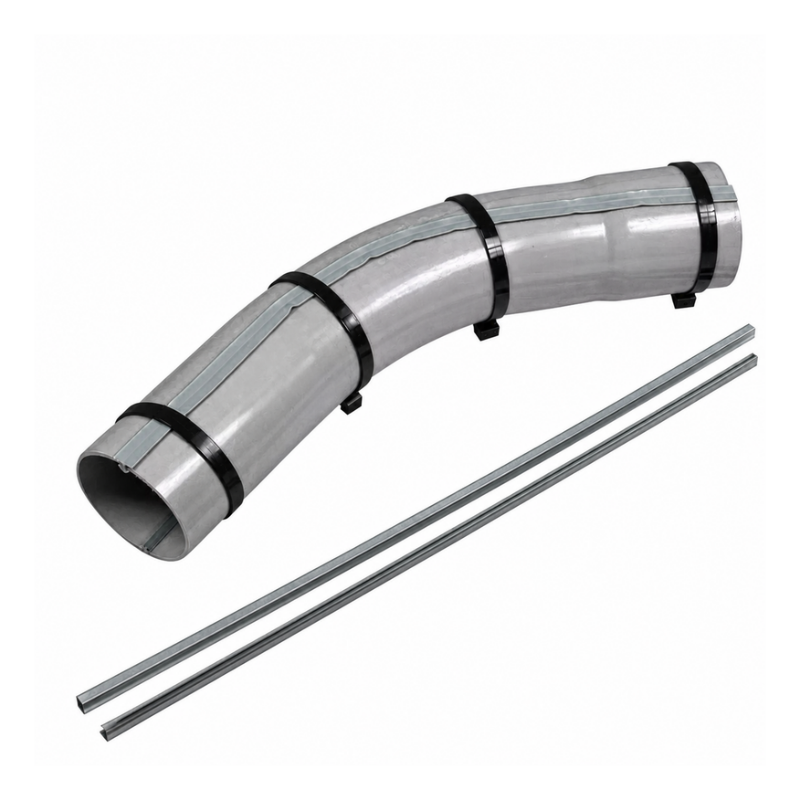

The Strip Duct 54D – Pack of 20 is a specialist duct repair accessory designed for securing split duct bends around existing cables within underground telecommunications infrastructure. It provides a practical solution for repairing or modifying duct bends where cables are already installed and cannot easily be removed.

Each 1m length of Strip Duct 54D is designed to join the longitudinal edges of a standard duct bend that has been cut along its length. This allows the split bend to be positioned around existing cables before the two halves are secured together, helping restore the duct's protective enclosure.

For installation, two lengths of Strip Duct 54D are typically used along the opposing edges of the split bend. The assembly can then be secured using Straps Cable Fixing 10A, providing additional support and helping maintain the position of the duct sections.

For applications requiring a more secure fixing, Compound 21 can also be used to bond the bend and strip duct components together. Additional lengths of Strip Duct may be required around the socketed portion of the duct bend. Supplied in a pack of 20, Strip Duct 54D is suitable for telecommunications engineers, utility contractors and underground network maintenance teams carrying out duct repairs and modifications around existing cable installations.

Key Features:

• Specialist Strip Duct 54D for telecommunications duct repairs

• Supplied in convenient packs of 20

• Individual strip length of 1 metre

• Designed for joining longitudinally split duct bends

• Enables duct repairs around existing installed cables

• Helps secure the edges of split duct sections

• Typically used in pairs along the edges of a split bend

• Compatible with Straps Cable Fixing 10A for additional securing

• Can be bonded using Compound 21 for a more secure fixing

• Suitable for use around the socketed sections of duct bends

• Supports underground telecommunications duct maintenance

• Practical solution for repairing cabled duct installations

• Designed for professional utility and telecommunications applications

Technical Specifications:

• Product Type: Duct Repair Strip

• Product Name: Strip Duct 54D

• Model: 54D

• Individual Length: 1m

• Pack Quantity: 20

• Total Nominal Length per Pack: 20m

• Primary Application: Split Duct Bend Repair

• Installation Method: Inserted Along Split Duct Edges

• Typical Installation Quantity: 2 Lengths per Split Bend, Subject to Configuration

• Compatible Fixing Accessory: Straps Cable Fixing 10A

• Compatible Bonding Compound: Compound 21

• Suitable Environment: Underground Telecommunications Ducting

• Application Type: Duct Repair and Modification

Installation Guidance:

1. Prepare the duct bend: Cut a suitable standard duct bend longitudinally to create two sections that can be positioned around the existing cables.

2. Position the bend: Place the split duct bend around the installed cables, ensuring the two halves are correctly aligned.

3. Insert Strip Duct 54D: Hold the two halves together and feed the strip into the joint from one end.

4. Secure both edges: Repeat the process on the opposite side of the split bend.

5. Apply additional fixings: Use Straps Cable Fixing 10A to secure the assembled duct bend.

6. Optional bonding: Apply Compound 21 where additional bonding is required, following the relevant product instructions.

Separate strip lengths may be necessary for socketed sections of the bend.

Applications:

• Underground telecommunications duct repairs

• Repairing duct bends around existing cables

• BT and Openreach-style duct infrastructure maintenance

• Fibre optic cable duct installations

• Copper telecommunications cable protection

• Underground cable network modifications

• Split duct bend assembly

• Telecommunications chamber maintenance

• Utility infrastructure repair projects

• Cable duct refurbishment and maintenance

• Existing cable route protection

• Civil engineering and duct installation work
