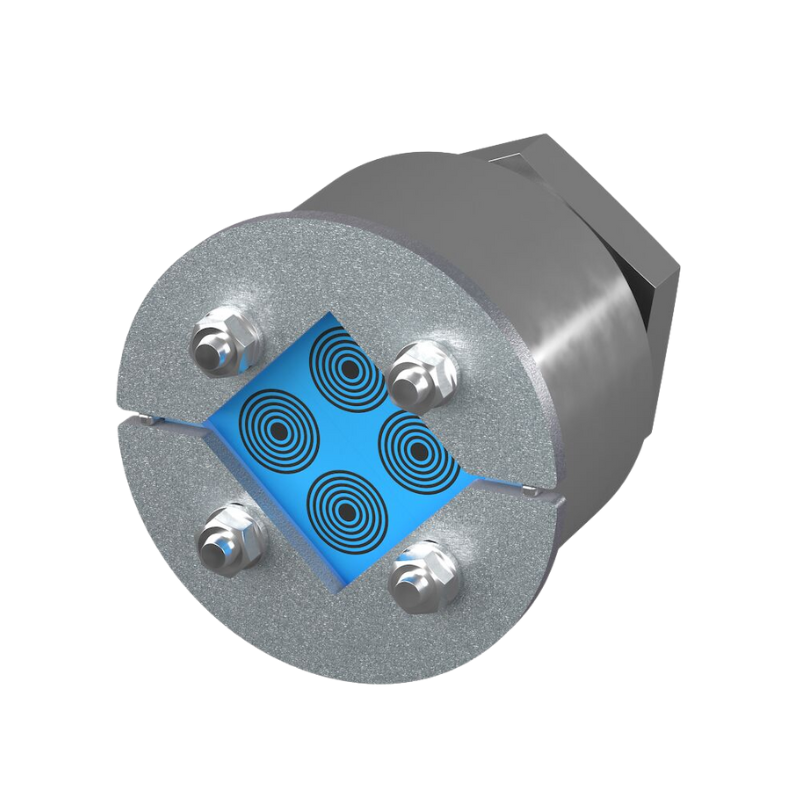

Roxtec WaveGuide Seal ES (Bolted) 1GHz/4 AISI 316
The Roxtec WaveGuide Seal ES (Bolted) 1GHz/4 AISI 316 is designed for applications requiring both high-performance electromagnetic shielding and robust environmental sealing. Built from AISI 316 stainless steel, it offers superior resistance to corrosion, making it ideal for telecom, defence, rail, marine and industrial environments.
This sealing solution is engineered to protect systems operating at frequencies up to 1 GHz, ensuring controlled RF transmission while maintaining reliable pressure and ingress protection. The bolted design enables a secure installation and a long-term sealing performance in harsh conditions.
Key Features:
- EMC and RF shielding performance up to 1 GHz
- Constructed from AISI 316 stainless steel for maximum corrosion resistance
- Bolted frame design ensures strong mechanical sealing
- Effective environmental and electromagnetic protection in one solution
- Suitable for telecom networks, radar systems, defence and rail infrastructure
- Compact configuration to support multiple small-diameter cables
Configuration:
- 4x modules for cables 3.5–15.0mm
Technical Specifications:
- External dimension (Ø): 85mm
- Aperture dimension (Ø): 48–58mm
- Weight: 1.2kg
