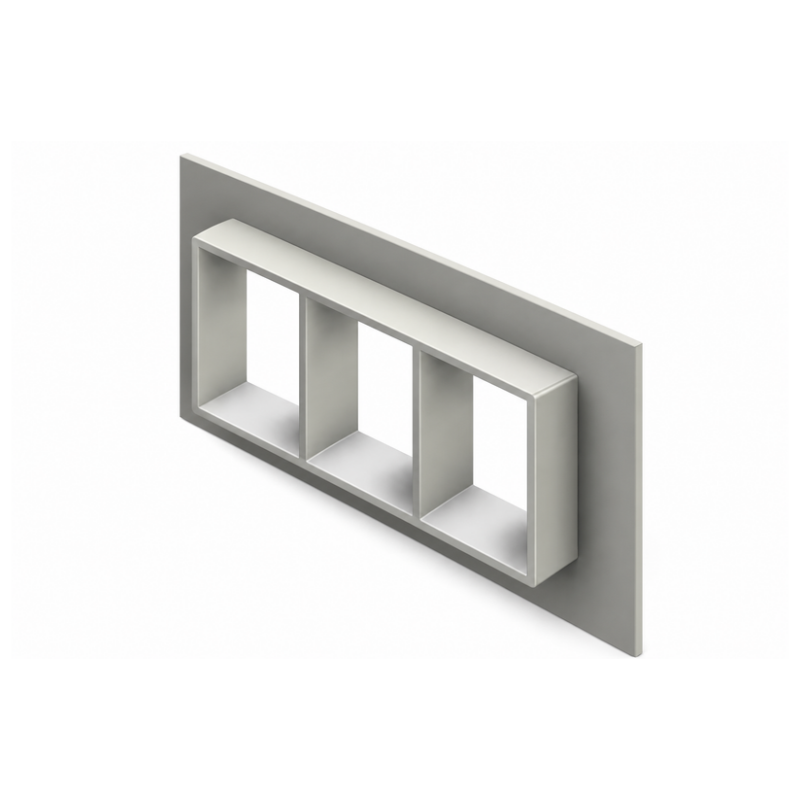

Roxtec G6x3 Primed Frame – 3 Openings – Modular Cable Transit
The Roxtec G6x3 Primed Frame is a heavy-duty modular cable transit frame designed for secure and organised cable routing through walls, floors and structural openings. Featuring three frame openings, it provides a practical solution for accommodating multiple cable sealing modules within a single transit assembly.
Part of the Roxtec G frame range, the G6x3 features a primed finish and is designed for use with compatible Roxtec modular sealing components. Its multi-opening configuration enables cables of different sizes to be routed through a structured sealing system, making it suitable for electrical, telecommunications and industrial infrastructure installations.
Each opening provides a 120 x 180mm packing space, allowing compatible sealing modules to be arranged according to the required cable configuration. The frame measures 513.5 x 350 x 60mm, with an aperture requirement of 449 x 290mm, supporting integration into suitable structural openings.
Weighing 9.81kg, the Roxtec G6x3 Primed Frame provides a substantial framework for modular cable transit installations. When assembled with the appropriate Roxtec sealing modules and compression components, it forms part of a complete cable penetration sealing system.
Suitable for data centres, telecommunications infrastructure, industrial facilities and utility installations, the Roxtec G6x3 offers a flexible solution for managing multiple cable penetrations while supporting long-term installation requirements.
Key Features:
-
Genuine Roxtec G6x3 modular cable transit frame
-
Three individual frame openings
-
Primed finish
-
Designed for use with compatible Roxtec sealing modules
-
120 x 180mm packing space per opening
-
External dimensions of 513.5 x 350 x 60mm
-
Aperture dimensions of 449 x 290mm
-
Robust frame construction for cable transit installations
-
Supports multiple cable entries within a single assembly
-
Suitable for structured cable routing and management
-
Compatible with modular cable sealing configurations
-
Designed for electrical and telecommunications infrastructure
-
Suitable for industrial and commercial applications
-
Can form part of a complete Roxtec cable penetration sealing system
Technical Specifications:
-
Brand: Roxtec
-
Product Range: G Frame
-
Product Model: G6x3
-
Product Type: Modular Cable Transit Frame
-
Finish: Primed
-
Number of Frame Openings: 3
-
Packing Space per Opening: 120 x 180mm
-
External Width: 513.5mm
-
External Height: 350mm
-
External Depth: 60mm
-
External Dimensions (W x H x D): 513.5 x 350 x 60mm
-
Aperture Width: 449mm
-
Aperture Height: 290mm
-
Aperture Dimensions (W x H): 449 x 290mm
-
Weight: 9.81kg
-
Compatible Components: Appropriate Roxtec Modular Sealing Components
-
Primary Application: Multiple Cable Transit Sealing
-
Pack Quantity: 1 Frame
Applications:
-
Telecommunications cable entry systems
-
Data centre cable penetrations
-
Electrical infrastructure installations
-
Industrial cable transit systems
-
Cable routing through structural walls
-
Utility and energy infrastructure
-
Electrical equipment rooms
-
Industrial plant installations
-
Multi-cable penetration assemblies
-
Building services cable management
-
Infrastructure maintenance and upgrades
-
Modular cable sealing installations
