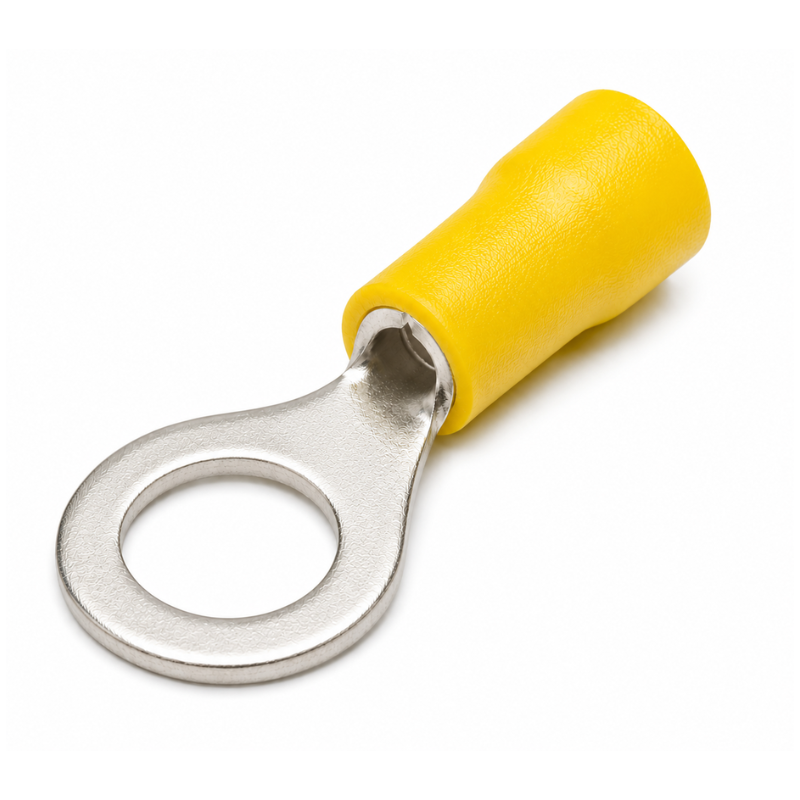

Ring Terminal – Yellow – M6 – Entry 4-6mm – Pack of 100
The Ring Terminal – Yellow – M6 – Entry 4-6mm – Pack of 100 is a high-quality insulated crimp terminal designed to provide secure and reliable electrical connections in industrial, commercial and automotive applications.
Manufactured from CW0024A (C106) high-conductivity copper with a purity exceeding 99.5%, each terminal is formed from flat copper sheet to ensure excellent electrical performance. The cable barrel is brazed to create a strong, dependable crimp connection before being tin-plated to BS 1872, providing excellent corrosion resistance and long-term conductivity.
The yellow PVC insulation identifies compatibility with 4-6mm² conductors, while the M6 ring provides a secure fixing to M6 studs or bolts. The chamfered crimp barrel allows for quick and accurate cable insertion, reducing installation time and ensuring consistent crimp quality.
Supplied in a pack of 100, these ring terminals are ideal for panel building, control systems, telecommunications equipment and general electrical installations.
Key Features:
-
Insulated ring terminal
-
M6 stud size
-
Suitable for 4-6mm² cable
-
Yellow insulation for easy identification
-
Manufactured from high-conductivity copper
-
Tin-plated to BS 1872
-
Brazed seam for increased strength
-
Chamfered barrel for easy cable insertion
-
Excellent corrosion resistance
-
Pack of 100
Technical Specifications:
-
Product Type: Ring Terminal
-
Stud Size: M6
-
Cable Entry: 4-6mm²
-
Insulation Colour: Yellow
-
Quantity: 100
-
Base Material: CW0024A (C106) High Conductivity Copper
-
Copper Purity: >99.5%
-
Finish: Tin-Plated to BS 1872
-
Barrel Construction: Brazed Seam
-
Barrel Entry: Chamfered
Applications:
-
Electrical installations
-
Control panels
-
Distribution boards
-
Industrial automation
-
Telecommunications equipment
-
Automotive wiring
-
Marine electrical systems
-
Switchgear
-
Power distribution
-
General cable termination
