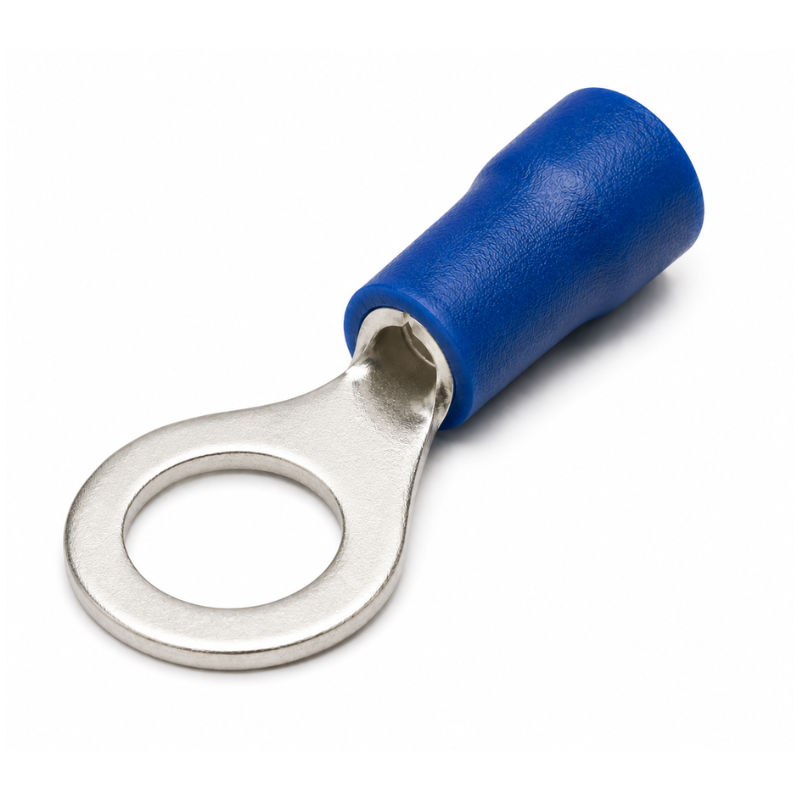

Ring Terminal – Blue – M8 – Entry 1.5–2.5mm² – Pack of 100
The Ring Terminal – Blue – M8 – Entry 1.5–2.5mm² – Pack of 100 is a high-quality pre-insulated crimp terminal designed to provide secure and reliable cable terminations for electrical, telecommunications and industrial wiring applications.
Manufactured from CW0024A (C106) high conductivity copper with a purity exceeding 99.5%, these ring terminals offer excellent electrical conductivity and long-term performance. The terminals are formed from flat copper sheet, with the crimp barrel brazed for added mechanical strength before being tin-plated to BS1872, providing enhanced corrosion resistance and dependable electrical contact.
The chamfered crimp barrel ensures quick, accurate cable insertion, reducing installation time while improving termination quality. Designed to accept cable sizes from 1.5mm² to 2.5mm², the terminal features an M8 ring for secure fastening to studs and terminal posts.
Supplied in a convenient pack of 100, these professional-grade ring terminals are ideal for panel builders, electricians, telecom engineers and maintenance professionals.
Key Features:
-
M8 ring terminal
-
Suitable for 1.5–2.5mm² cable
-
Blue insulated sleeve for easy cable identification
-
Manufactured from CW0024A (C106) high conductivity copper
-
Copper purity greater than 99.5%
-
Tin-plated to BS1872
-
Brazed seam for increased mechanical strength
-
Chamfered crimp barrel for easy cable insertion
-
Excellent electrical conductivity
-
Supplied in a pack of 100
Technical Specifications:
-
Product Type: Pre-Insulated Ring Terminal
-
Stud Size: M8
-
Cable Entry Size: 1.5–2.5mm²
-
Insulation Colour: Blue
-
Quantity: 100
-
Conductor Material: CW0024A (C106) High Conductivity Copper
-
Copper Purity: >99.5%
-
Finish: Tin-Plated to BS1872
-
Barrel Construction: Brazed Seam
-
Barrel Entry: Chamfered
-
Termination Method: Crimp
Applications:
