Description:

Rainford TrackSafe® Trackside Cabinets – Multiple Options



The Rainford TrackSafe® Trackside Cabinets – Multiple Options range is engineered to provide secure, durable and high-performance enclosures for telecom and rail infrastructure in demanding outdoor environments.



Designed for modern network deployments, the TrackSafe® range offers flexible configurations across single bay, double bay and wide frame formats, with support for 19-inch and BRS mounting systems, enabling seamless integration with both legacy and next-generation equipment.



Built using 1.4003 stainless steel with a polyester powder-coated finish, these cabinets deliver exceptional resistance to corrosion, weather exposure and mechanical stress. The dual-skin insulated design combined with natural convection cooling ensures efficient passive heat dissipation of up to ~500W, eliminating the need for active cooling and significantly reducing maintenance requirements.



Across the range, cabinets are designed to meet the demands of harsh trackside environments, offering IP54 protection against dust and water ingress and LPS1175 Issue 8 Level 2 security certification, ensuring reliable protection against environmental exposure and opportunistic tampering.

Available Configurations:

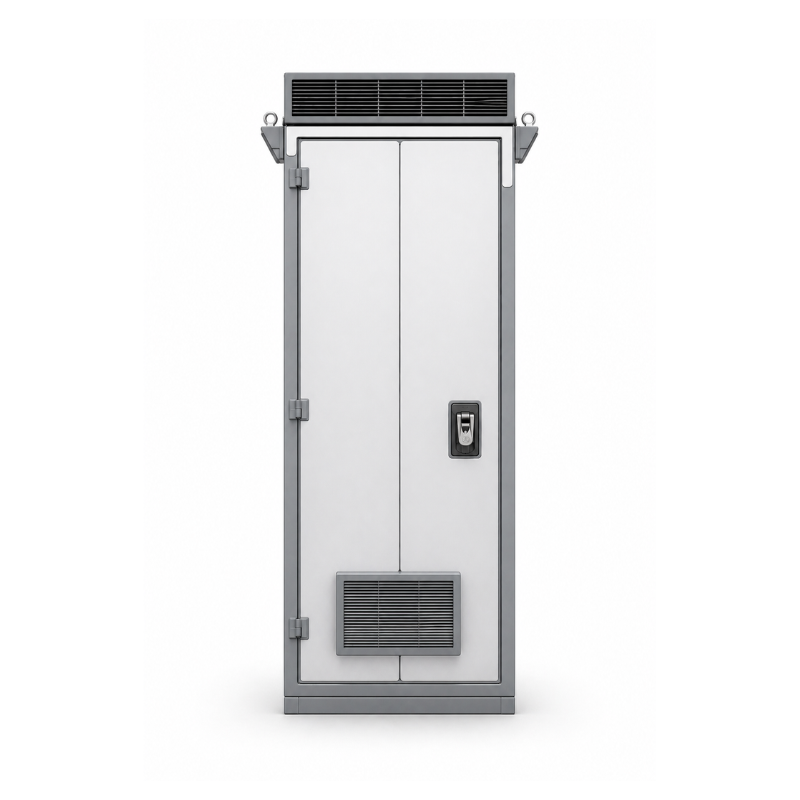

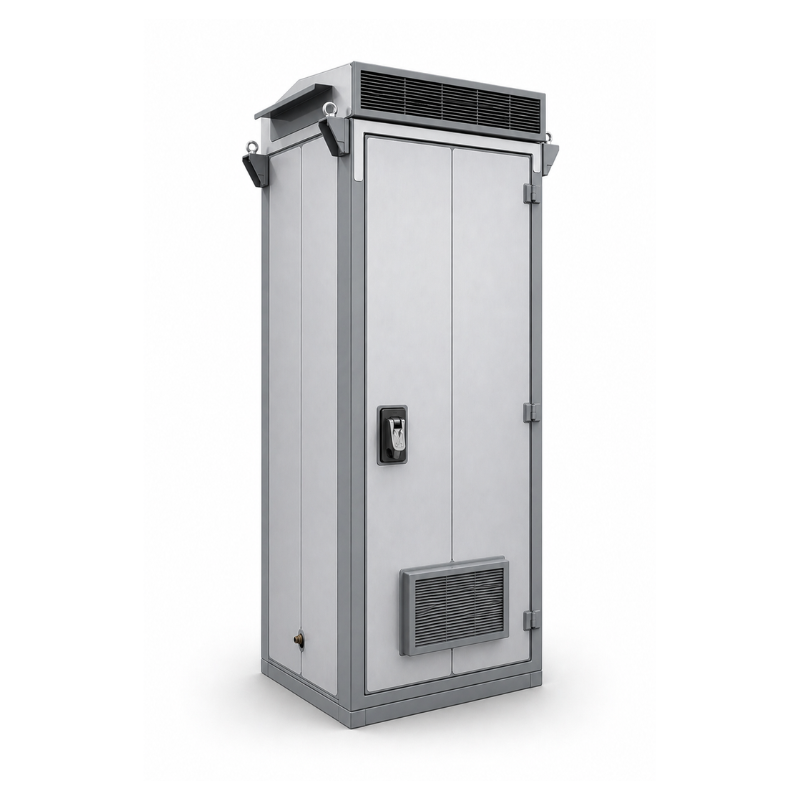

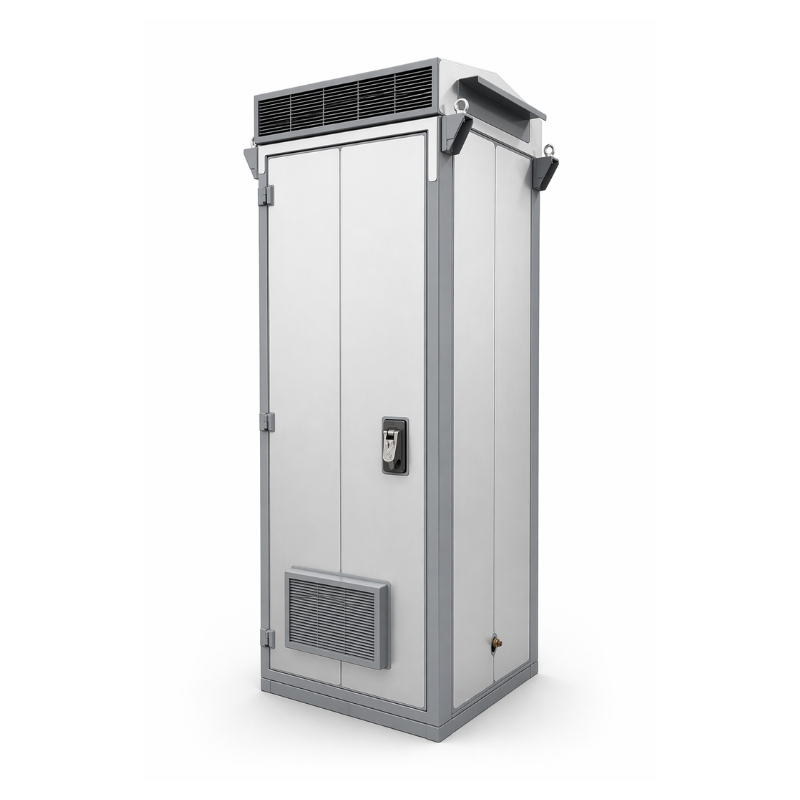

  • Single Bay Cabinets (37U) – compact solutions for lower capacity installations

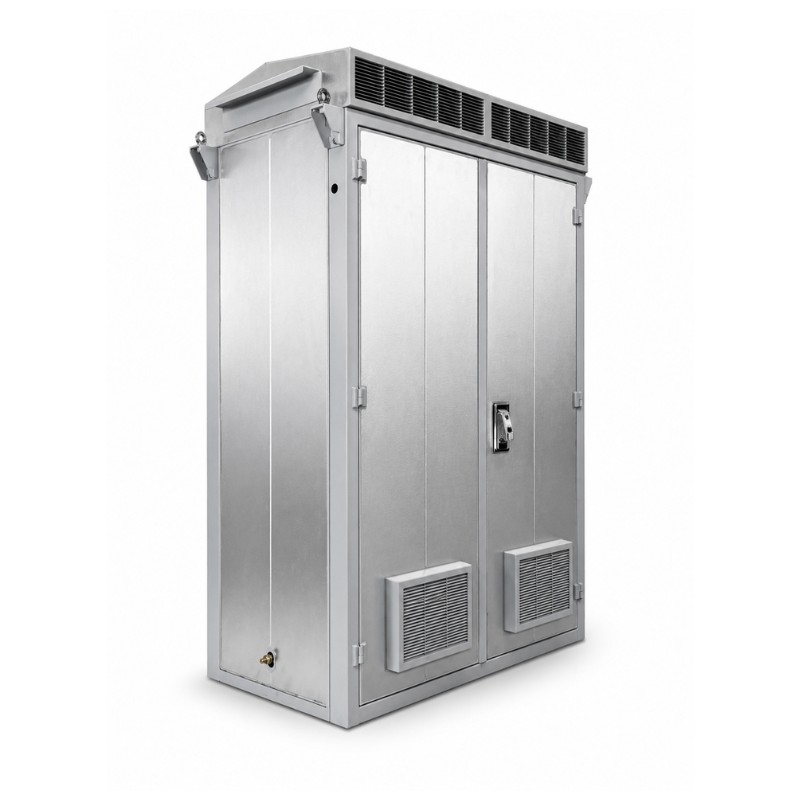

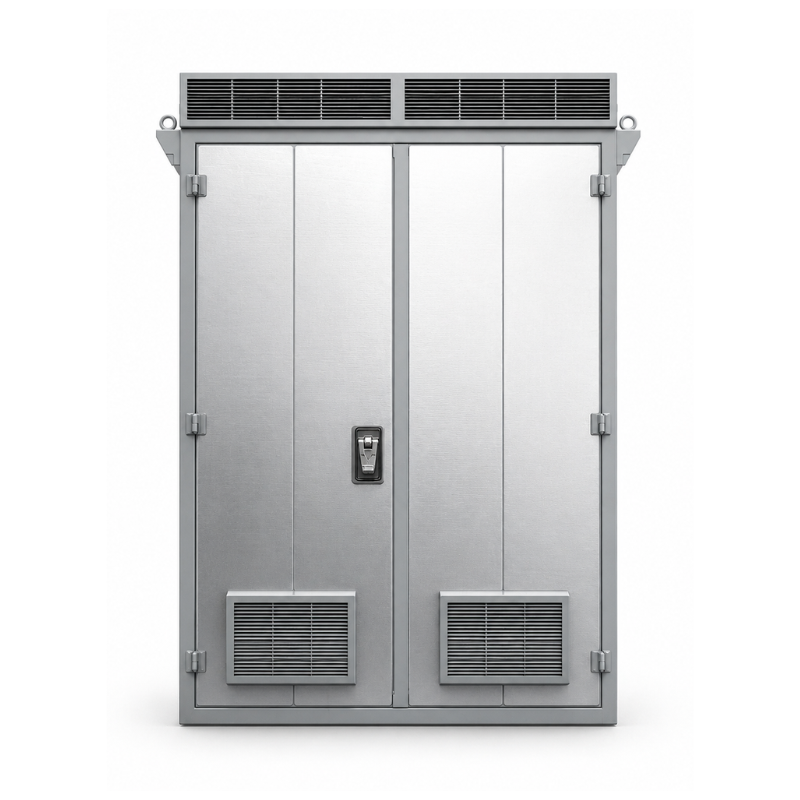

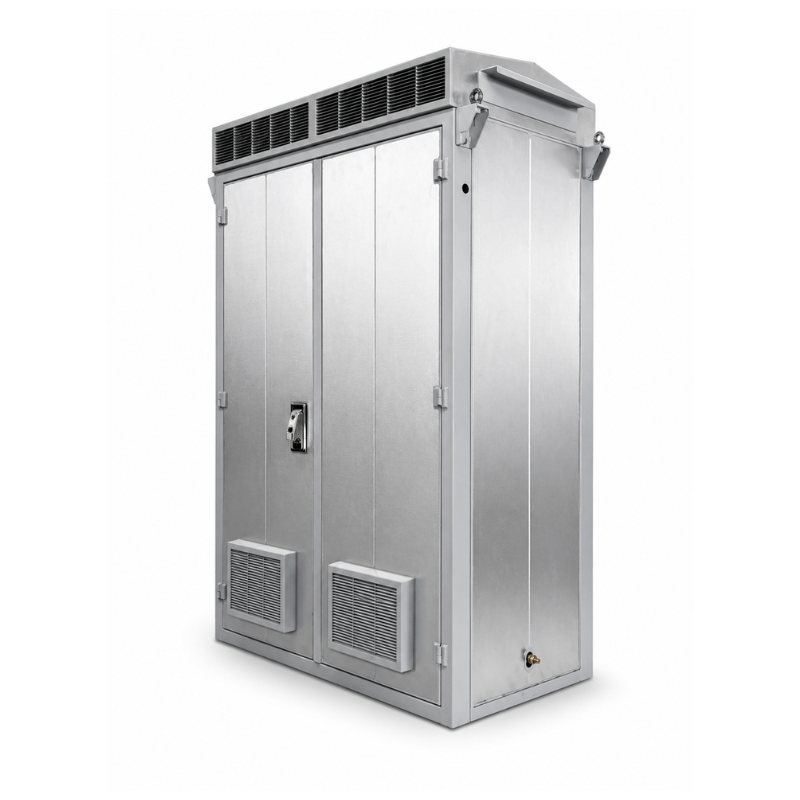

  • Double Bay Cabinets (2 × 37U) – high-capacity enclosures for complex systems

  • Wide Frame Cabinets – enhanced internal space for high-density equipment

  • 19” Frame Options – standard rack-mounted equipment compatibility

  • BRS SM Frame Options (SM867 / SM868) – rail-standard mounting configurations

  • Hybrid Configurations – combination of 19” and BRS frames

  • Plinth Kit Options – for installation on GRP platforms or concrete bases

Key Features:

  • Configurable mounting formats (19” & BRS compatible)

  • Dual-skin insulated construction for thermal efficiency

  • Natural convection cooling system (no moving parts)

  • Heat dissipation up to 500W (ΔT ~6

  • IP54-rated enclosure for outdoor environments

  • LPS1175 Issue 8 Level 2 security rating

  • 1.4003 stainless steel construction for long-term durability

  • Front and rear access doors for easy installation and maintenance

  • 3-point locking system with padlock compatibility

  • Modular removable gland plates for flexible cable entry

  • Free-standing internal frame for non-disruptive panel replacement

  • Designed for 35+ year service life

Technical Specifications (Range Overview):

  • Material: 1.4003 Stainless Steel

  • Finish: Polyester powder coated

  • Colour: Telegrey (RAL 7045)

  • Cooling: Natural convection

  • Heat Dissipation: Up to 500W (ΔT ~6

  • Protection Rating: IP54 (EN 60529)

  • Security Rating: LPS1175 Issue 8 Level 2

  • Compliance: NR/L2/SIG/19820/K02, ISO 9001:2015

Applications:

  • Rail and trackside telecom infrastructure

  • Signalling and control systems

  • Fibre and power distribution points

  • Utility and roadside network enclosures

  • Industrial outdoor equipment protection
