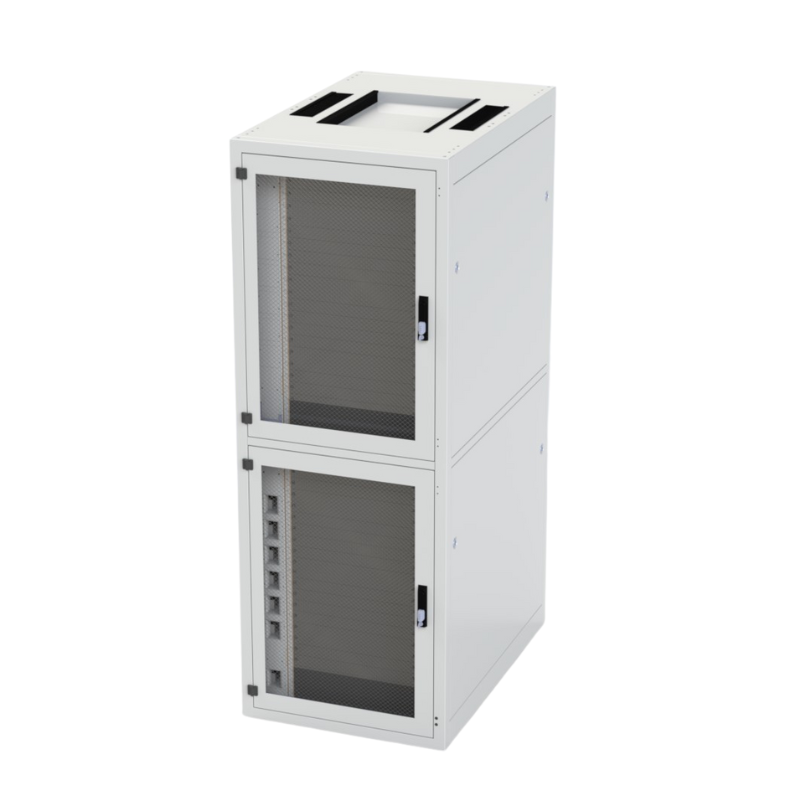

Rainford Two Section Colocation Rack Cabinet – 47U x 800 x 1200
The Rainford SafeServ® CX Two-Section Colocation Rack Cabinet is a high-security, multi-tenant data centre rack engineered for environments requiring segregated, controlled access. With 47U total height, 800mm width, and 1200mm depth, this UK-manufactured cabinet provides two fully isolated 23U compartments, each with independent access, airflow, and cable pathways—ideal for colocation, hosting providers, MSPs and enterprise shared environments.
Manufactured from high-grade steel with a durable white RAL 9003 polyester powder-coated finish, the SafeServ CX range offers exceptional strength, thermal performance and cable management flexibility. The 83% airflow mesh doors, adjustable front and rear profiles, and segregated top/base cable entry channels ensure clean, efficient installation within modern high-density data centres.
Key Features:
-
Two fully separated 23U colocation compartments
-
83% airflow mesh front (single-leaf) & rear doors (double-leaf) for excellent thermal performance
-
3-pin combination swing handles with single-point locking for secure tenant separation
-
Front and rear depth-adjustable 19” mounting profiles
-
Plain side panels, horizontally split for easy access
-
Base-mounted copper earth bar for safe earthing of mounted equipment
-
Segregated top and base cable entry channels for clean cable routing
-
Heavy-duty UK-manufactured steel construction
-
Durable polyester powder-coated finish (RAL 9003 white)
-
Supplied with baying kit and levelling feet
Technical Specifications:
-
Rack Height: 47U / 2198mm
-
Rack Width: 800mm
-
Rack Depth: 1200mm
-
Compartments: 2 × 23U segregated sections
-
Material: Steel
-
Colour: White – RAL 9003
-
Finish: Polyester powder coat
-
Front Door: Single-leaf flat 83% mesh
-
Rear Doors: Double-leaf flat 83% mesh
-
Locking: Single-point locking & 3-pin combination swing handles
-
Side Panels: Plain, horizontally split
-
Panel Locking: Non-keyed cam latch
-
Mounting Format: 19-inch
-
Mounting Profiles: Front & rear, depth adjustable
-
Profile Setback: Front 120mm / Rear 120mm
-
Earthing: Base-mounted horizontal copper earth bar
-
Cable Ingress: Segregated top & base cable entry channels
-
Certification: IEC 60297-3, EIA-310-E, RoHS, REACH, ISO9001:2015
-
Included Accessories: Baying kit, levelling feet
