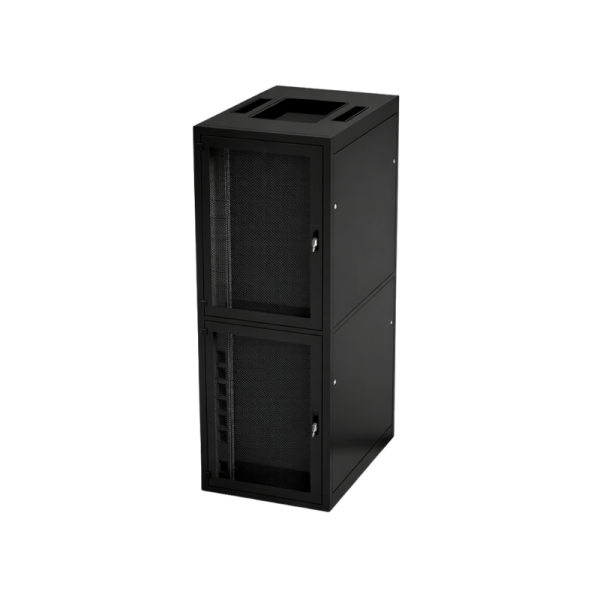

Rainford SafeServ® CX - 47U x 800 x 1000 Two Compartment Colocation Rack Cabinet - Black

Rainford SafeServ® CX – 47U × 800 × 1000 Two Compartment Colocation Rack Cabinet – Black (RAL 9005)

The Rainford SafeServ® CX Two Compartment Colocation Rack Cabinet is a secure, airflow-optimised enclosure engineered for shared data centre and colocation environments where physical separation, access control, and thermal efficiency are critical. Designed specifically for multi-tenant deployments, the CX range enables multiple customers to securely operate within a single cabinet footprint.

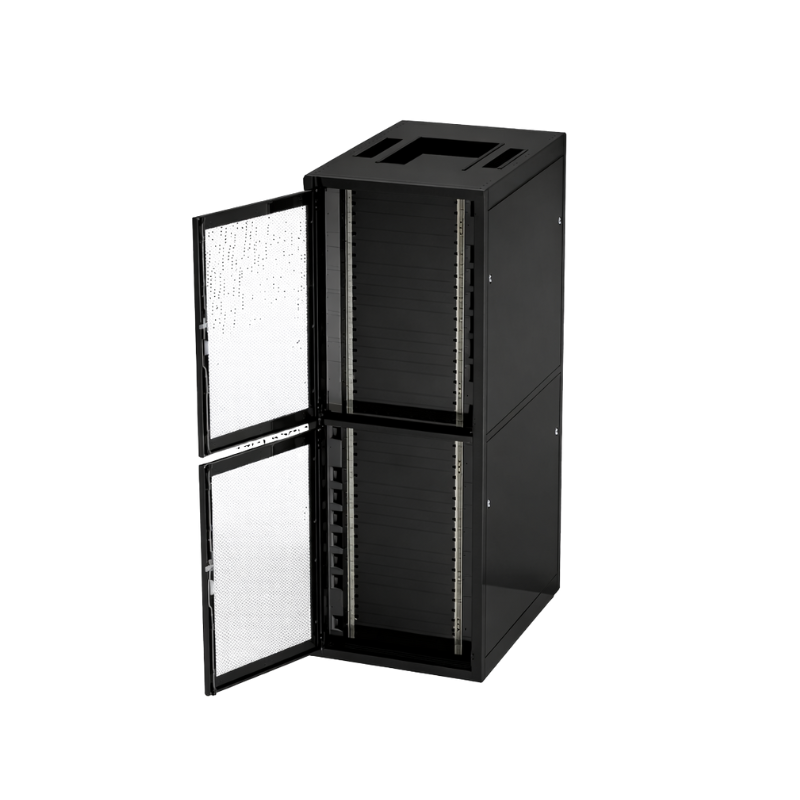

This 47U, 800 × 1000 mm configuration is divided into two segregated compartments (2 × 23U), providing clear separation between tenants while maintaining excellent accessibility. Constructed with fully welded front and rear steel frames, the SafeServ CX cabinet delivers exceptional strength and long-term reliability. 83% mesh doors support high-volume airflow and containment strategies to improve cooling efficiency and reduce PUE. Finished in Black (RAL 9005) with a durable polyester powder coat, this cabinet is ideally suited to modern colocation facilities.

Key Features:

• Two fully segregated compartments for secure colocation deployments

• Fully welded steel frame construction for high load capacity and durability

• 83% mesh doors for optimised airflow and efficient cooling

• Secure, lockable doors and panels for multi-tenant environments

• 19-inch mounting format with depth-adjustable front and rear profiles

• Compatible with airflow containment and blanking solutions

• Durable polyester powder-coated finish in Black (RAL 9005)

Technical Specifications:

• Rack Height: 47U (2198 mm)

• Rack Width: 800 mm

• Rack Depth: 1000 mm

• Compartments: 2 × 23U

• Material: Steel

• Finish: Polyester powder coat

• Colour: Black (RAL 9005)

• Mounting Format: 19 inch

• Mounting Profiles: Front and rear, depth adjustable

• Front Door: Single-leaf flat 83% mesh

• Rear Doors: Double-leaf flat 83% mesh

• Side Panels: Plain panels, split horizontally

• Door Locking: Single-point locking system

• Door Handles: Swing handle – 3-pin combination

• Earthing: Base-mounted horizontal copper earth bar

• Cable Ingress: Segregated top and base cable entry channels

• Standards Compliance: IEC 60297-3, EIA-310-E, ISO 9001:2015, RoHS, REACH

Included as Standard:

• 3-Pin Combination Swing Handle

• Levelling Feet Kit

• Baying Kit

• Base Mounted Earth Bar Kit

• 2 × Brushed Cable Entry Modules

• Pallet & Packaging Kit
