Rainford Naval Cabinet – 33U – 1570 x 610 x 800mm – Left Hand Door – EMC Shielded

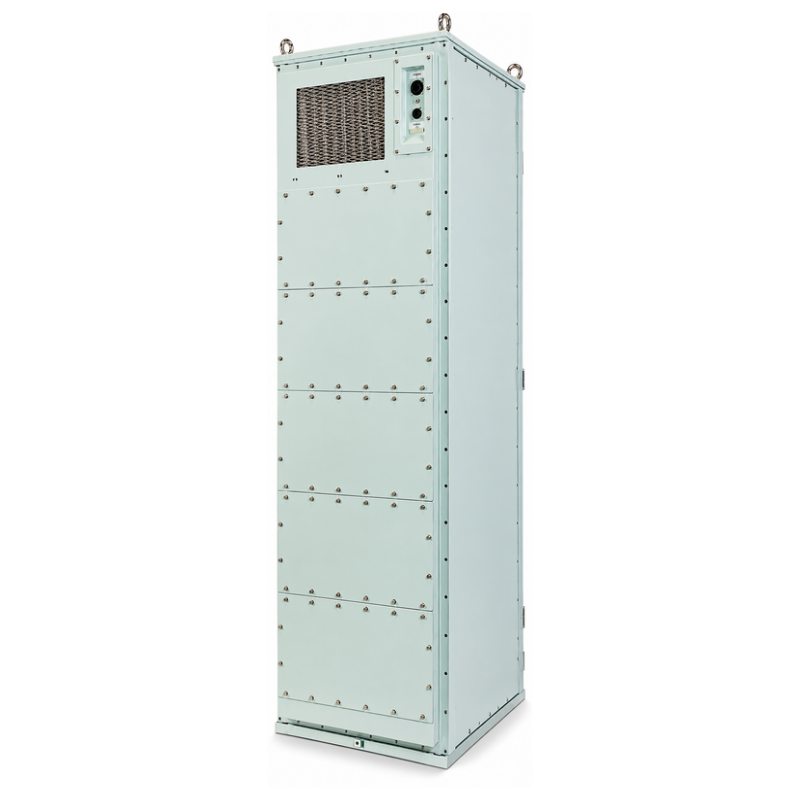

RAINFORD Naval Cabinet – 33U – 1570 x 610 x 800mm – Left Hand Door – EMC Shielded

The RAINFORD Naval Cabinet – 33U – Left Hand Door is a military-specification enclosure designed to house and protect standard 19-inch rack-mounted equipment in demanding naval, defence and marine environments. Measuring 1570 x 610 x 800mm, the cabinet provides a robust, EMC-shielded and drip-proof solution for critical electronic and telecommunications infrastructure.

Manufactured using Commercial Off The Shelf (COTS) design principles, the cabinet is engineered to withstand severe shock, vibration and challenging environmental conditions. The RAINFORD Naval Cabinet range is certified for explosion-level shock forces in accordance with Def Stan 08-123, while EMC/RF shielding performance is tested to MIL-STD 461E, helping protect sensitive equipment against electromagnetic interference.

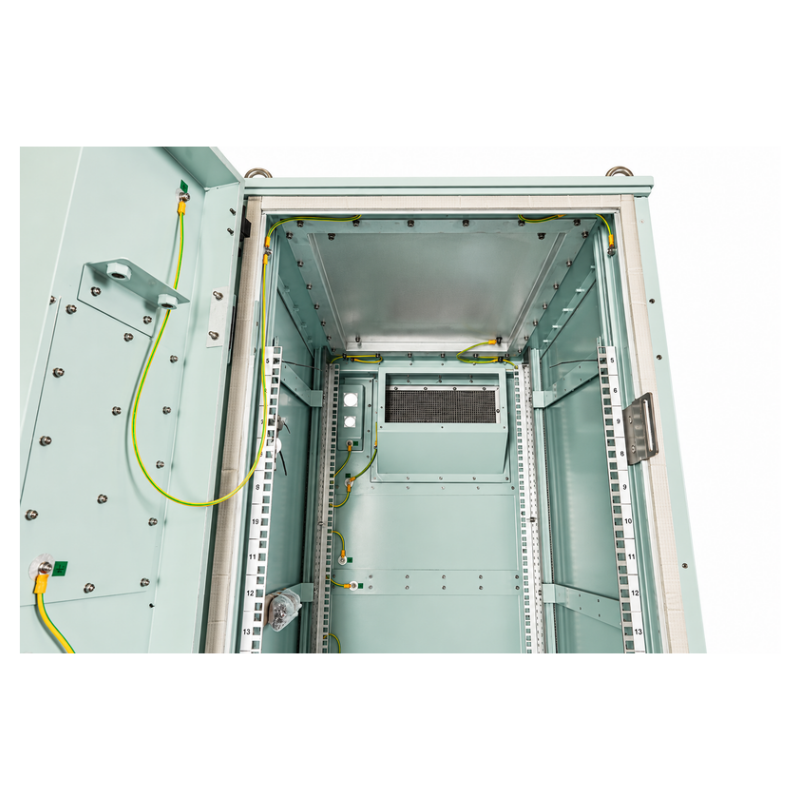

Constructed from polyester powder-coated aluminium, the cabinet features front and rear 19" mounting rails, full-length removable rear and side panels, EMC-protected cable entry points and integrated horizontal and vertical cable trays. Honeycomb EMC-filtered ventilation supports airflow while maintaining shielding performance.

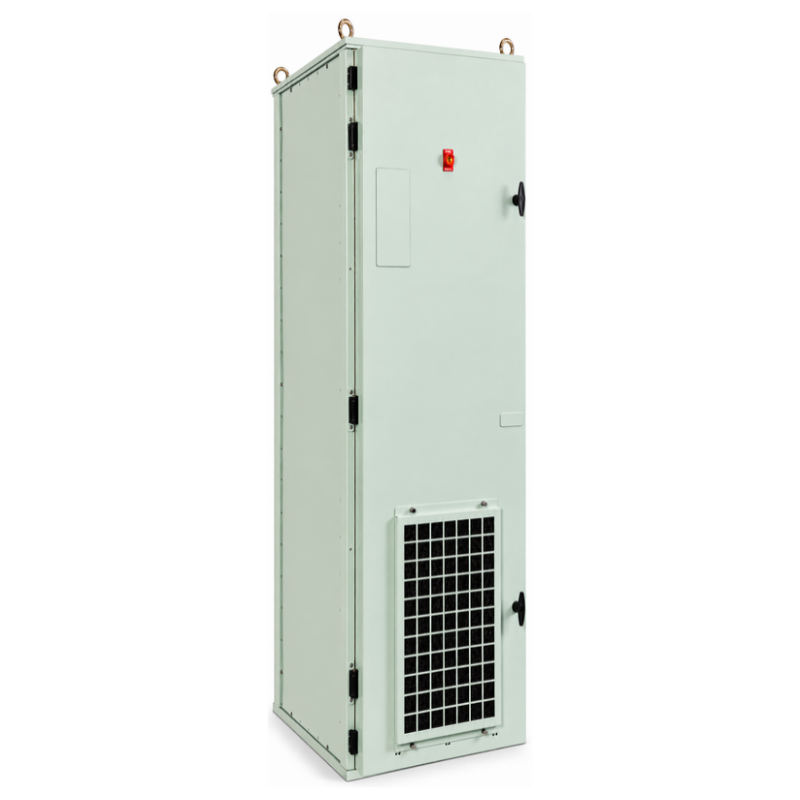

This configuration features a left-hand opening front door with two-point locking and a door-stay mechanism for convenient access during installation and maintenance. Additional features include removable lifting eyes, integrated earthing provisions and a CO₂ injector point.nWith its 33U capacity, the cabinet provides substantial rack space for installations requiring increased equipment capacity. Designed for a minimum 20-year service life, it provides a durable solution for military, marine and mission-critical equipment installations.

Key Features:

• Military-specification 33U naval cabinet

• Left-hand opening front door

• Standard 19" rack mounting format

• 1570 x 610 x 800mm dimensions

• EMC/RF shielding tested to MIL-STD 461E

• Shock and vibration performance certified to Def Stan 08-123

• Drip-proof construction to Def Stan 00-35 Test CL28

• Durable aluminium construction

• Polyester powder-coated finish

• Front and rear 19" mounting rails

• Full-length removable rear and side panels

• EMC-protected gland plates in roof and base

• Horizontal and vertical cable trays

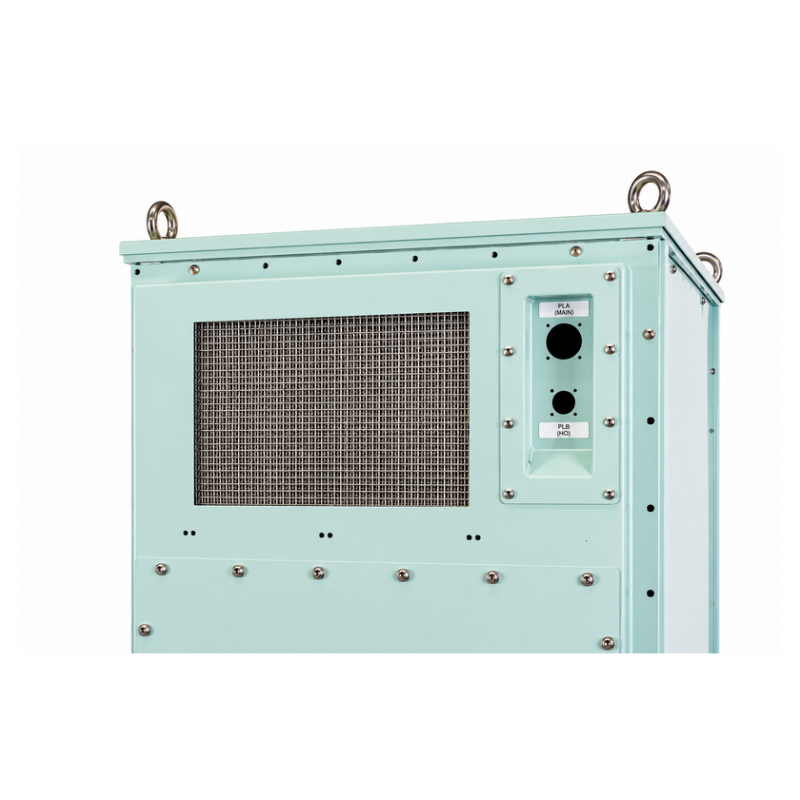

• Honeycomb EMC-filtered ventilation

• Two-point locking front door

• Door-stay mechanism

• Four removable lifting eyes

• Fully earth-bonded construction

• Horizontal earth bar and external earth point

• CO₂ injector point

• Cooling options available

• Minimum 20-year design life

Technical Specifications:

• Brand: RAINFORD

• Product Type: Naval Cabinet

• Part Number: MA003606

• Rack Format: 19"

• Capacity: 33U

• Height: 1570mm

• Width: 610mm

• Depth: 800mm

• Door Configuration: Left-Hand Opening

• Front Door Locking: Two-Point Locking

• Cabinet Material: Aluminium

• Finish: Polyester Powder Coated

• Environmental Protection: Drip Proof – Def Stan 00-35 Test CL28

• EMC/RF Shielding: MIL-STD 461E

• Shock Resistance: Def Stan 08-123, Data Sheet 27

• Vibration Resistance: Def Stan 08-123, Data Sheet 25

• Operating Temperature: 15°C to 40°C

• Operating Relative Humidity: 30% to 70%

• Mounting Rails: Front and Rear

• Cable Management: Horizontal and Vertical Cable Trays

• Earthing: Fully Earth Bonded

• Design Life: Minimum 20 Years

Certified Performance:

EMC/RF Shielding – MIL-STD 461E

• 1MHz – 500MHz: Greater than 80dB

• 500MHz – 1GHz: Greater than 50dB

• 1GHz – 18GHz: Greater than 20dB

Shock Resistance – Def Stan 08-123, Data Sheet 27

• Vertical: 70G

• Horizontal: 30G

• Longitudinal: 30G

Vibration Resistance – Def Stan 08-123, Data Sheet 25

• 5Hz – 14Hz: 1.25mm

• 14Hz – 33Hz: 0.125mm

Endurance Testing – Def Stan 08-123, Data Sheet 25

• 14Hz: 1.25mm

• 23Hz: 0.3mm

• 33Hz: 0.125mm

Applications:

• Naval vessels and marine defence systems

• Military communications infrastructure

• Shipboard electronics and control systems

• Defence telecommunications equipment

• EMC-sensitive electronic installations

• Ruggedised 19" rack equipment housing

• Mission-critical communications systems

• Marine IT and network infrastructure

• Defence and COTS equipment integration
