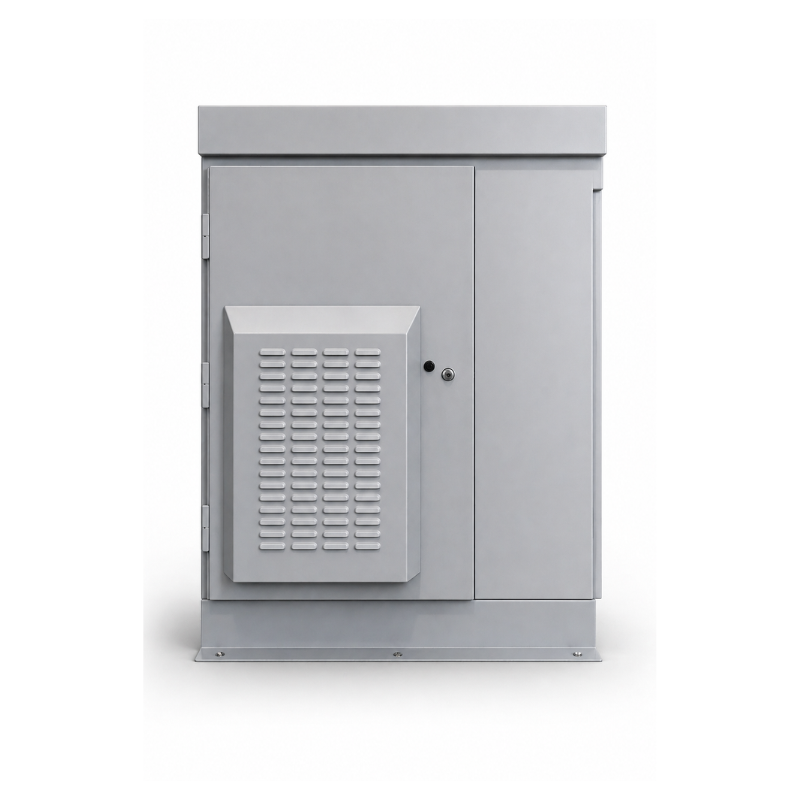

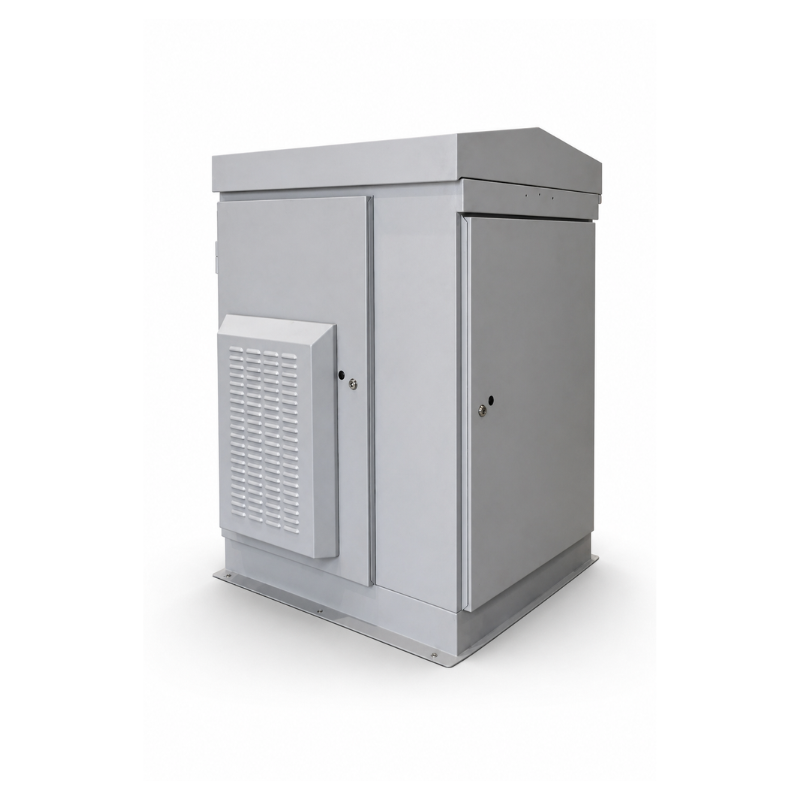

Rainford CommSafe® Single Bay LH End Pod Cabinet – Grey – 25U × 800D
The Rainford CommSafe® Single Bay LH End Pod Cabinet – Grey – 25U × 800D is a specialist outdoor enclosure designed to provide dedicated space for power distribution, battery systems and auxiliary equipment alongside primary telecom infrastructure.
Part of the CommSafe® cabinet range, this left-hand end pod configuration integrates with single bay cabinet systems, offering a segregated compartment for support equipment. The 25U capacity with 800mm depth provides increased internal space for larger power systems, cable management and associated infrastructure.
Engineered for railway, telecom and critical infrastructure environments, the cabinet is built to safeguard equipment in harsh outdoor conditions. Its IP55-rated enclosure helps protect against dust and water ingress, supporting reliable long-term deployment.
Manufactured from 1.4003 stainless steel with a RAL 7035 grey polyester powder-coated finish, the cabinet provides durability, corrosion resistance and a professional appearance for exposed installations.
Key Features:
-
Left-hand end pod cabinet configuration
-
25U capacity with 800mm depth
-
Designed for power, battery and auxiliary equipment
-
Suitable for railway and outdoor infrastructure environments
-
IP55-rated enclosure for dust and water protection
-
Anti-vandal 3-point locking system
-
Compatible with 221 Rail Cam lock
-
RAL 7035 grey finish
-
Durable 1.4003 stainless steel construction
-
Provides separation between power/support systems and active equipment
-
Supports structured cable management and maintenance access
Technical Specifications:
-
Product Type: Outdoor LH end pod cabinet
-
Configuration: Single bay left-hand end pod
-
Rack Capacity: 25U
-
Depth: 800mm
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Grey / RAL 7035
-
IP Rating: IP55
-
Locking System: 3-point locking
-
Lock Compatibility: 221 Rail Cam lock
Applications:
-
Railway and trackside infrastructure
-
Power distribution systems
-
Battery backup equipment
-
Telecom and fibre network installations
-
CCTV and security systems
-
Station communication infrastructure
