Rainford CommSafe® Single Bay Cabinet - Grey - 37U x 600D

Rainford CommSafe® Single Bay Cabinet – Grey – 37U × 600D

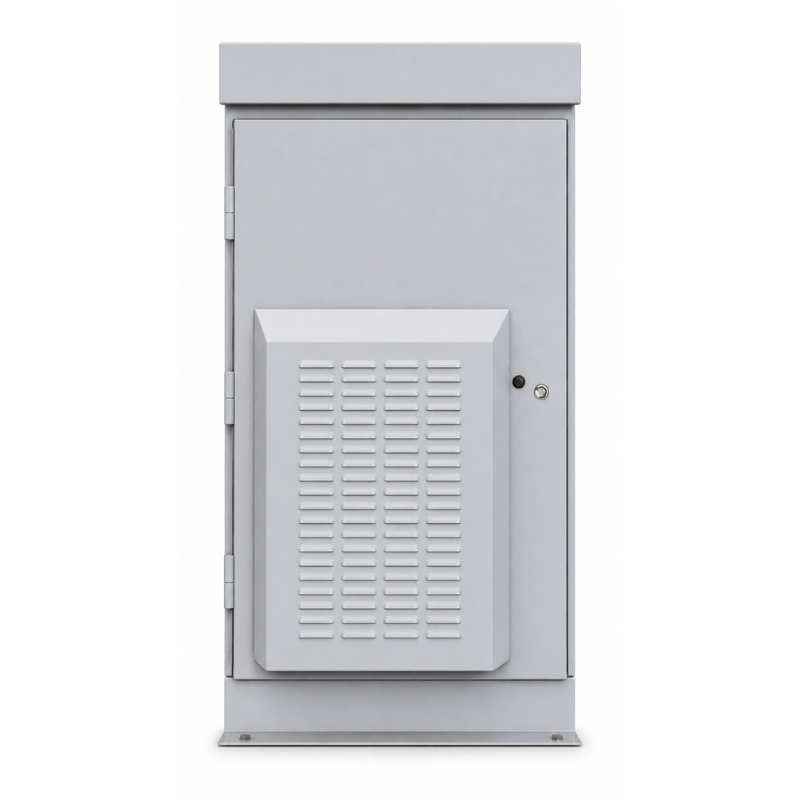

The Rainford CommSafe® Single Bay Cabinet – Grey – 37U × 600D is a high-capacity outdoor enclosure engineered to protect active telecom, security and network systems in demanding railway and infrastructure environments.

Part of the CommSafe® cabinet range, this model delivers a full-height 37U rack capacity with a compact 600mm depth, making it ideal for installations requiring maximum equipment density while maintaining a controlled footprint. It is particularly suited for trackside, station and critical infrastructure deployments, where uptime, accessibility and long-term durability are essential.

Designed for harsh outdoor conditions, the cabinet provides robust environmental protection and stable internal operating conditions, safeguarding sensitive electronics from moisture, dust and temperature variation. Its IP55-rated enclosure ensures reliable performance in exposed environments, supporting long-term deployment across rail and telecom networks.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the cabinet offers excellent resistance to corrosion and mechanical stress. It incorporates an advanced forced-air cooling system with filtration, capable of dissipating up to ~1.0kW of heat (ΔT 10°C), ensuring optimal thermal management for active equipment installations.

Key Features:

• Single bay cabinet – 37U full-height capacity

• 600mm depth (600D) for space-efficient installations

• Designed for railway and outdoor infrastructure environments

• IP55-rated enclosure (EN 60529) for dust and water protection

• Anti-vandal security with 3-point locking system

• Compatible with 221 Rail Cam lock and dual locking options

• Forced-air cooling system with integrated filtration

• Heat dissipation up to ~1.0kW (ΔT 10°C)

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

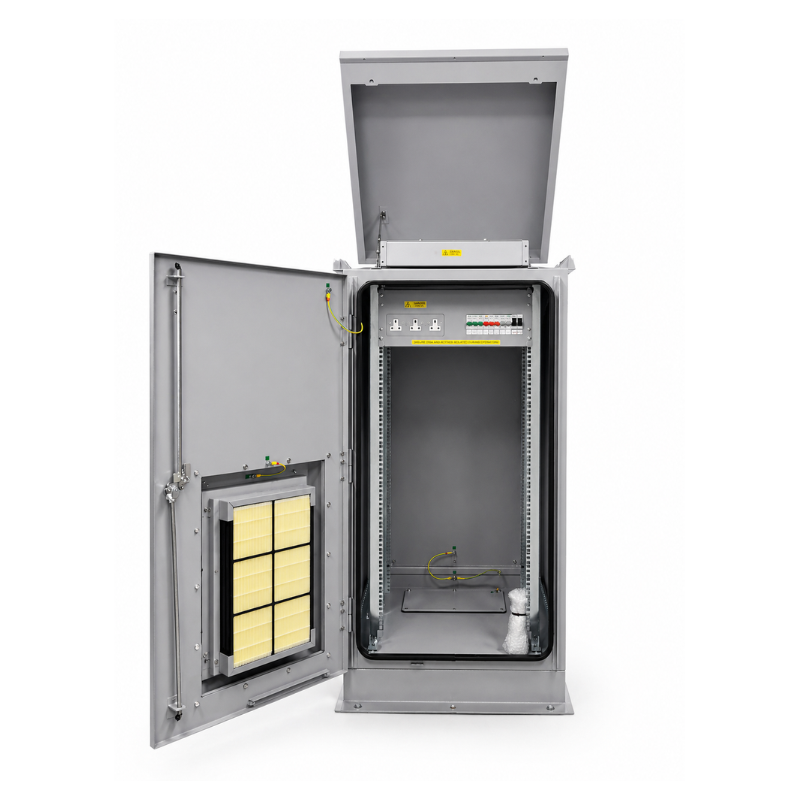

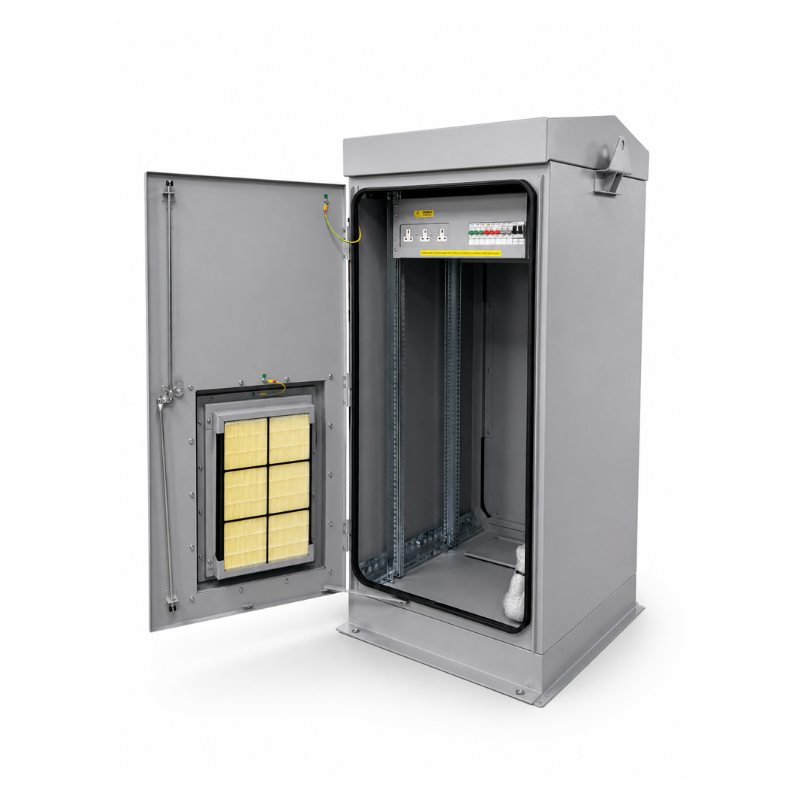

• Front door with removable rear panels for easy maintenance

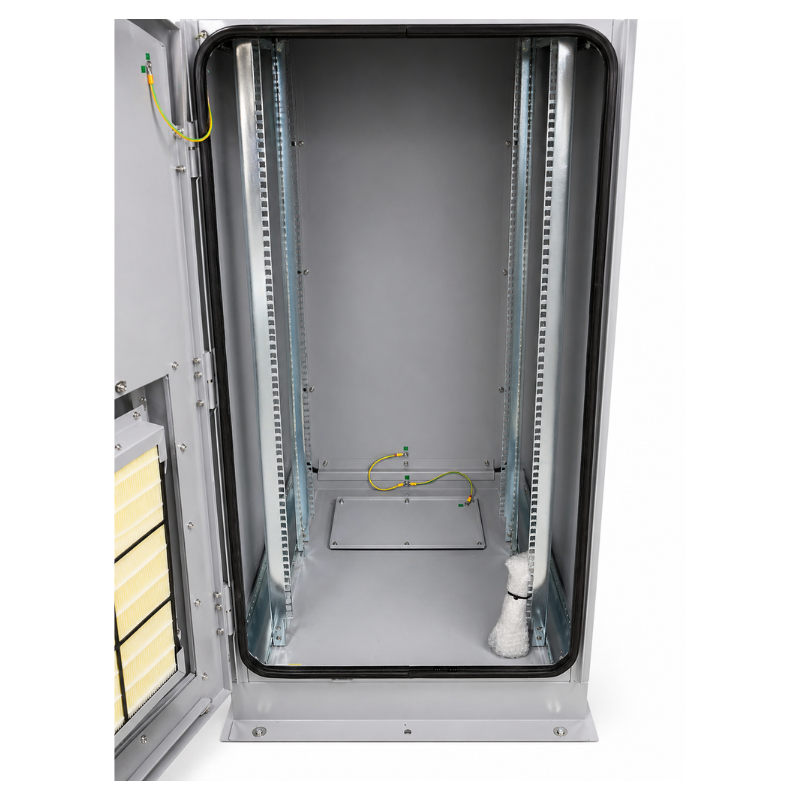

• Depth-adjustable 19-inch mounting rails

Technical Specifications:

• Product Type: Outdoor active equipment cabinet

• Configuration: Single bay

• Mounting Format: 19-inch rack (adjustable depth)

• Rack Capacity: 37U

• Depth: 600mm (600D)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

• Cooling: Forced-air fan system with hydrophobic filtration

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with rail-compatible cam locks

• Quality Standard: ISO 9001:2015

Additional Features:

• Robust anti-vandal design for trackside deployment

• Removable lifting brackets for installation

• Base-mounted earth point for safety compliance

• Cable entry gland plates for structured routing

• Peaked roof design for improved weather resistance

• Highly configurable options, including:

  • Lighting

  • Heaters

  • Cable trays

  • PDUs

  • Monitoring sensors

Applications:

• Railway and trackside communication systems

• CCTV and security infrastructure

• Public address (PA) and customer information systems (CIS)

• Telecom and fibre network equipment

• Outdoor active equipment protection
