Rainford CommSafe® Single Bay Cabinet - Grey - 25U x 800D

Rainford CommSafe® Single Bay Cabinet – Grey – 25U × 800D

The Rainford CommSafe® Single Bay Cabinet – Grey – 25U × 800D is a high-performance outdoor enclosure designed for safeguarding critical telecom and network systems in demanding railway and infrastructure environments.

Part of the CommSafe® cabinet range, this model provides a 25U capacity with an extended 800mm depth, offering additional internal space for active equipment, power systems and structured cable management. It is ideally suited for railway applications where long-term reliability, security and accessibility are essential.

Engineered to perform in harsh outdoor conditions, the cabinet ensures stable internal environments despite temperature fluctuations, moisture and airborne contaminants, supporting continuous operation of sensitive equipment. Its IP55-rated enclosure delivers strong protection against dust and water ingress, making it suitable for exposed trackside and station installations.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the cabinet offers excellent durability and resistance to corrosion. It incorporates a forced-air cooling system with advanced filtration, capable of dissipating up to ~1.0kW of heat (ΔT 10°C), ensuring optimal thermal management for active systems.

Key Features:

• Single bay cabinet – 25U capacity

• 800mm depth (800D) for increased equipment space

• Designed for railway and outdoor infrastructure environments

• IP55-rated enclosure (EN 60529) for dust and water protection

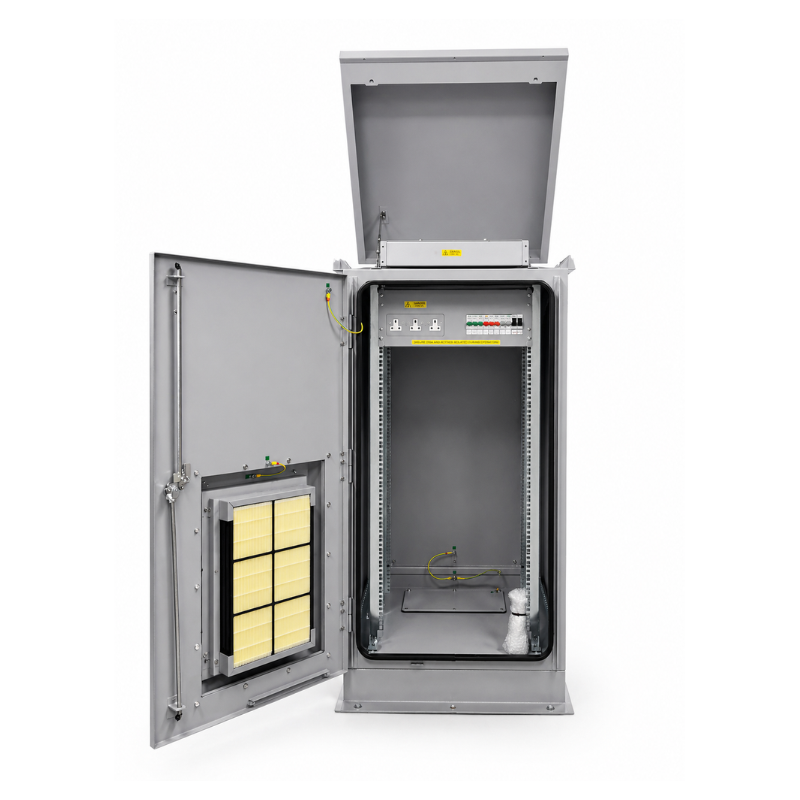

• Forced-air cooling system with filtration

• Heat dissipation up to ~1.0kW (ΔT 10°C)

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish for professional installations

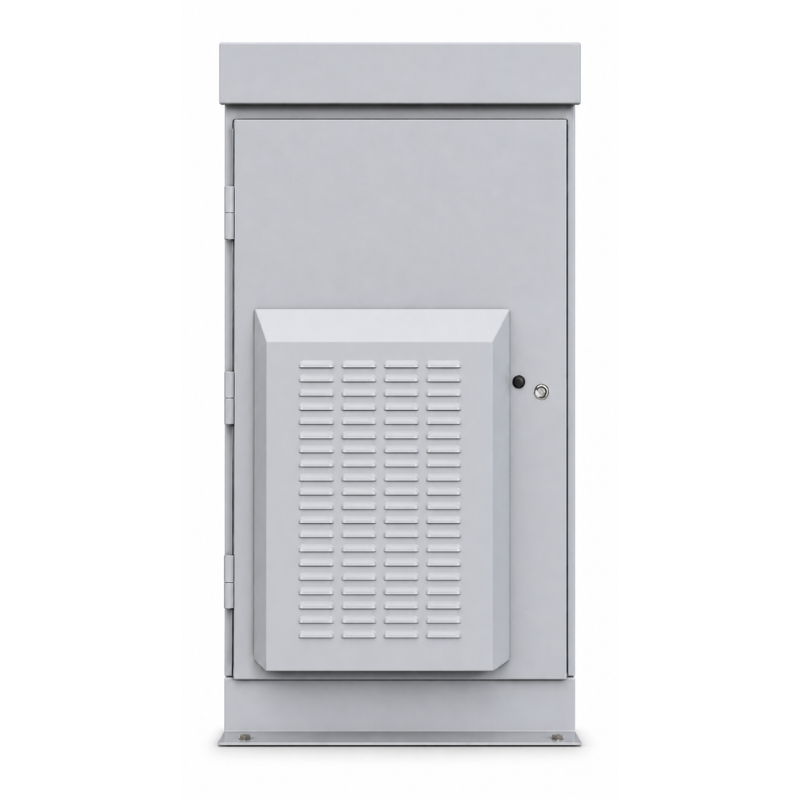

• 3-point locking system for anti-vandal security

• Compatible with 221 Rail Cam lock

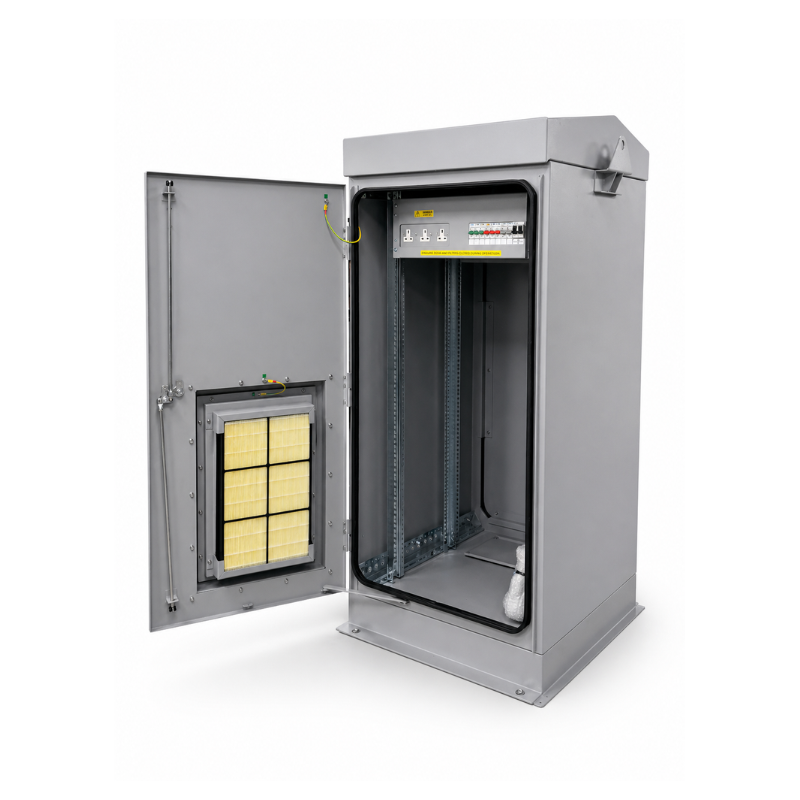

• Front door with removable rear panels for easy maintenance

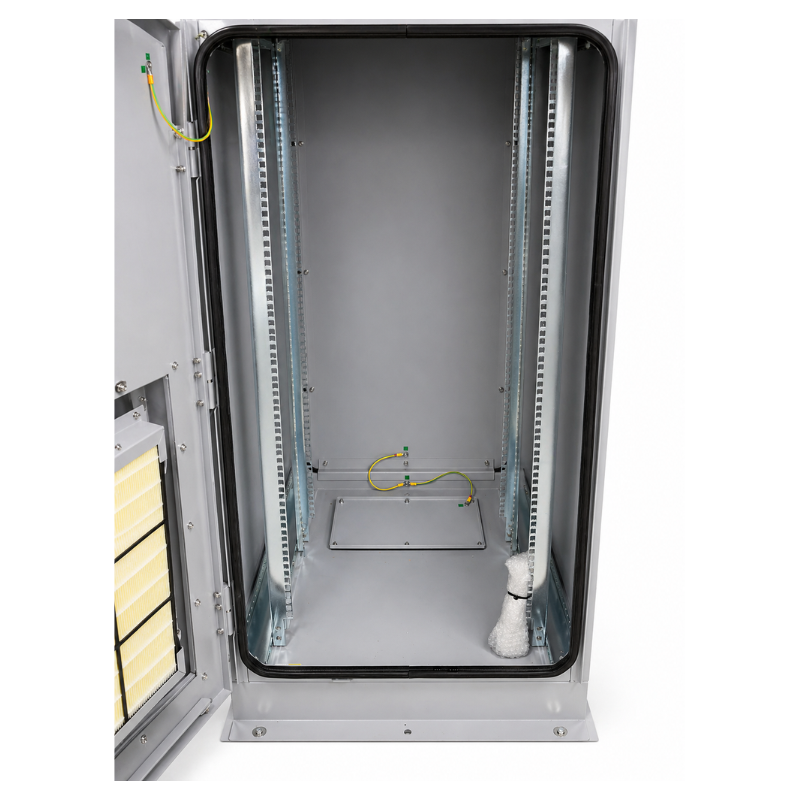

• Depth-adjustable 19-inch mounting profiles

Technical Specifications:

• Product Type: Outdoor active equipment cabinet

• Configuration: Single bay

• Mounting Format: 19-inch rack (adjustable depth)

• Rack Capacity: 25U

• Depth: 800mm (800D)

• Dimensions (H × W × D): 1753 × 675 × 810 mm (range reference)

• Weight: ~125 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with 221 cam lock compatibility

• Quality Standard: ISO 9001:2015

Additional Features:

• Robust anti-vandal design for trackside security

• Full-height removable rear panels for maintenance access

• Peaked roof design for weather resistance

• Captive door stays for safe operation

• Removable lifting brackets for installation

• Base-mounted earth point for safety compliance

• Cable entry gland plates for structured routing

• Highly configurable with options including:

  • Lighting

  • Heaters

  • Cable trays

  • PDUs

Applications:

• Railway and trackside communication systems

• CCTV and security infrastructure

• Station information and control systems

• Telecom and fibre network equipment

• Outdoor active equipment protection
