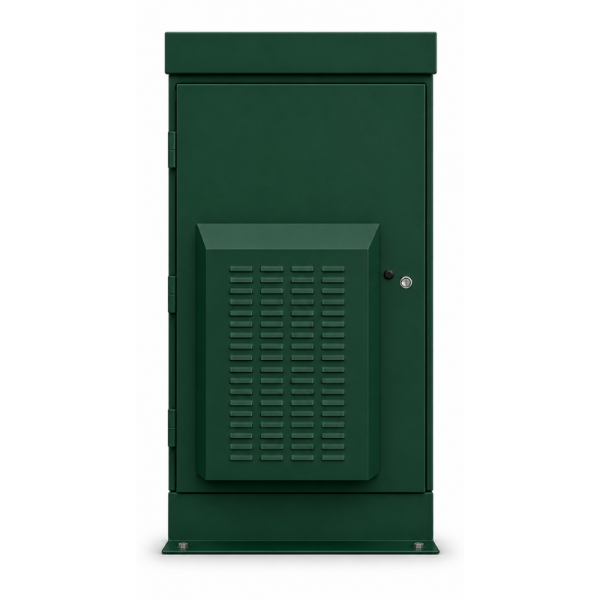

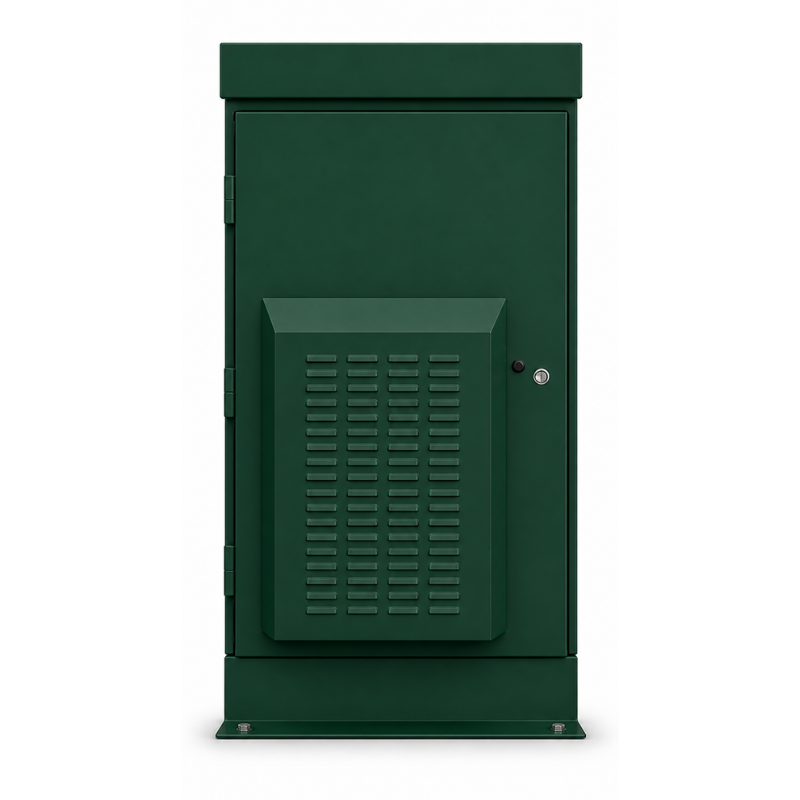

Rainford CommSafe® Single Bay Cabinet - Green - 30U x 600D

Rainford CommSafe® Single Bay Cabinet – Green – 30U × 600D

The Rainford CommSafe® Single Bay Cabinet – Green – 30U × 600D is a high-capacity outdoor enclosure designed to protect active telecom, security and network systems in demanding railway and infrastructure environments.

Part of the CommSafe® cabinet range, this model provides an expanded 30U rack capacity with a compact 600mm depth, making it ideal for installations requiring higher equipment density without increasing footprint. It is specifically suited for railway systems, station communications and critical network infrastructure, where reliability and uptime are essential.

Engineered for harsh outdoor conditions, the cabinet offers robust environmental protection and stable internal conditions, safeguarding sensitive electronics from moisture, dust and temperature variation. Its IP55-rated enclosure ensures strong protection against ingress, supporting dependable long-term deployment.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet delivers excellent resistance to corrosion and environmental stress. It features an advanced forced-air cooling system with filtration, capable of dissipating up to ~1.0kW of heat (ΔT 10°C), ensuring optimal performance for active equipment.

Key Features:

• Single bay cabinet – 30U capacity

• 600mm depth (600D) for compact installations

• Designed for railway and outdoor telecom environments

• IP55-rated enclosure (EN 60529) for dust and water protection

• Anti-vandal security with 3-point locking system

• Compatible with dual locking systems (including rail cam locks)

• Forced-air cooling system with filtration

• Heat dissipation up to ~1.0kW (ΔT 10°C)

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

• Front door with removable rear panels for full access

• Depth-adjustable 19-inch mounting rails

Technical Specifications:

• Product Type: Outdoor active equipment cabinet

• Configuration: Single bay

• Mounting Format: 19-inch rack (adjustable depth)

• Rack Capacity: 30U

• Depth: 600mm (600D)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Green

• Cooling: Forced-air fan with hydrophobic filtration

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with rail-compatible cam locks

• Quality Standard: ISO 9001:2015

Additional Features:

• Robust anti-vandal design for trackside deployment

• Removable lifting brackets for installation

• Base-mounted earth point for safety compliance

• Cable entry gland plates for structured routing

• Peaked roof design for improved weather resistance

• Highly configurable options, including:

  • Lighting

  • Heaters

  • Cable trays

  • PDUs

  • Monitoring sensors

Applications:

• Railway and trackside communication systems

• CCTV and security infrastructure

• Public address (PA) and customer information systems (CIS)

• Telecom and fibre network equipment

• Outdoor active equipment protection
