Rainford CommSafe® Cabinet – Multiple Options

The Rainford CommSafe® Cabinet – Multiple Options range is engineered to provide robust, secure and thermally managed outdoor enclosures for active telecom, security and network systems in demanding environments.

Designed specifically for railway and critical infrastructure applications, the CommSafe® range ensures reliable long-term performance in harsh outdoor conditions, protecting sensitive electronics from moisture, dust and temperature fluctuations while maintaining stable internal operating environments.

Available in single bay, double bay and end pod configurations, the range supports flexible deployment requirements, including standard 19-inch equipment mounting, integrated power compartments and scalable rack capacities. This makes it ideal for both compact installations and high-density infrastructure builds.

Constructed from 1.4003 stainless steel with a durable polyester powder-coated finish, all cabinets offer excellent resistance to corrosion and environmental stress. Each unit is equipped with an advanced forced-air cooling system with filtration, capable of dissipating up to ~1.0kW of heat (ΔT 10°C), ensuring optimal thermal performance for active equipment.

Available Configurations:

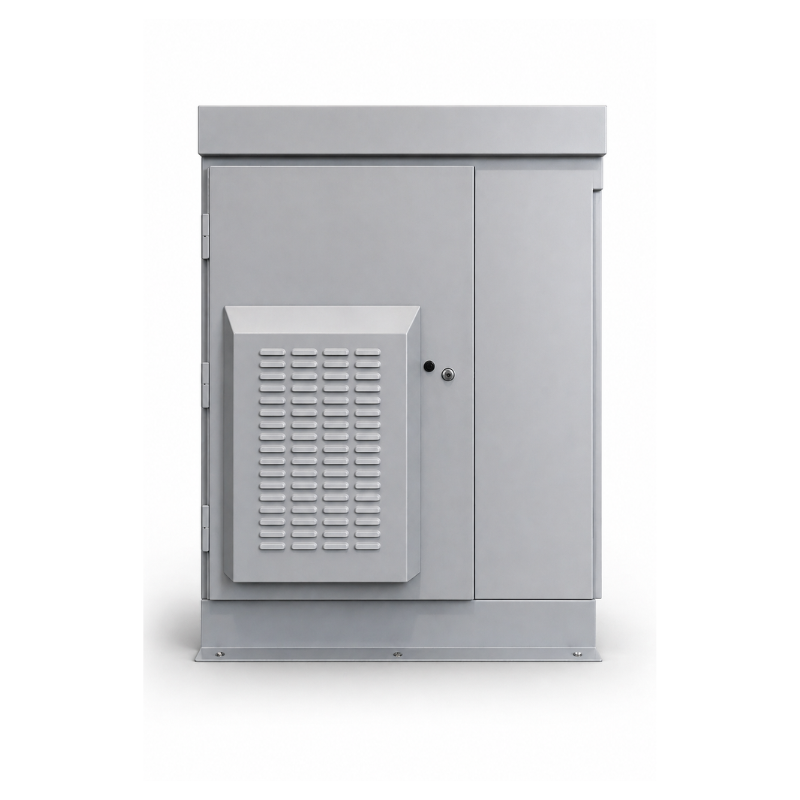

• Single Bay Cabinets (20U – 37U)
  Compact, space-efficient enclosures for standard network equipment installations

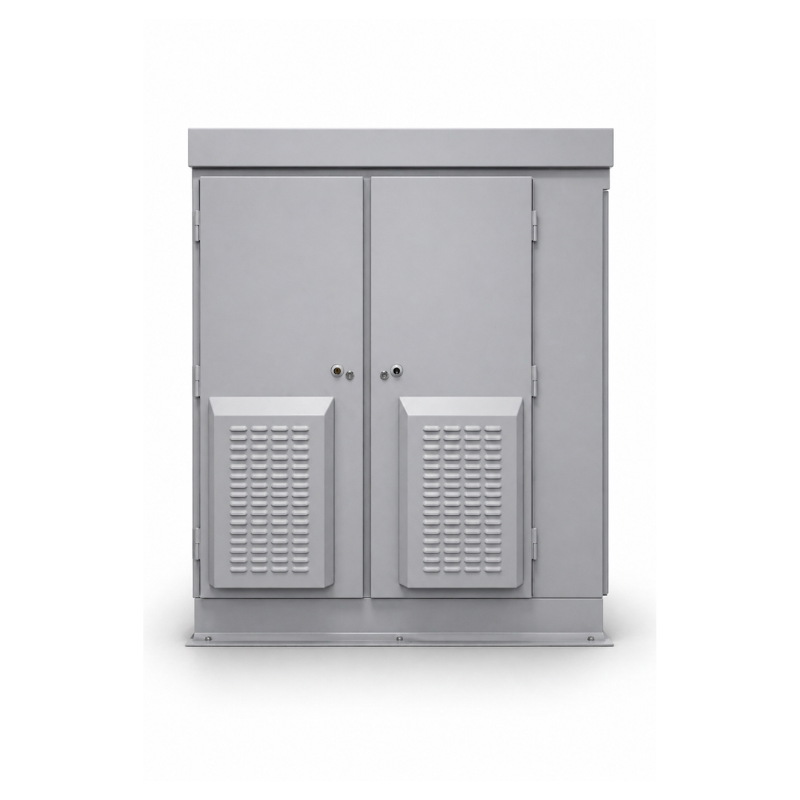

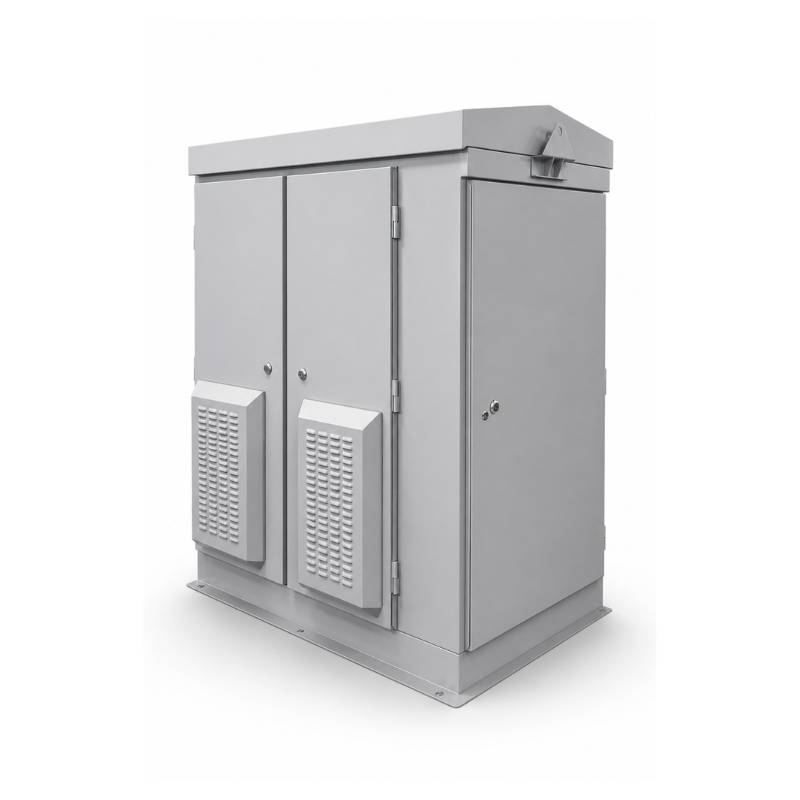

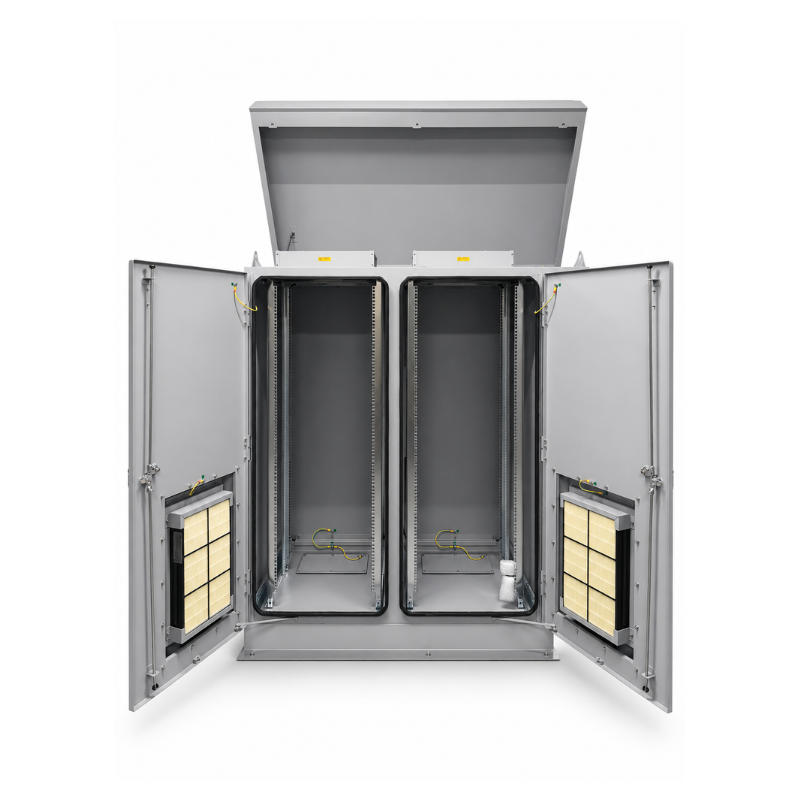

• Double Bay Cabinets
  High-capacity solutions for complex and high-density infrastructure deployments

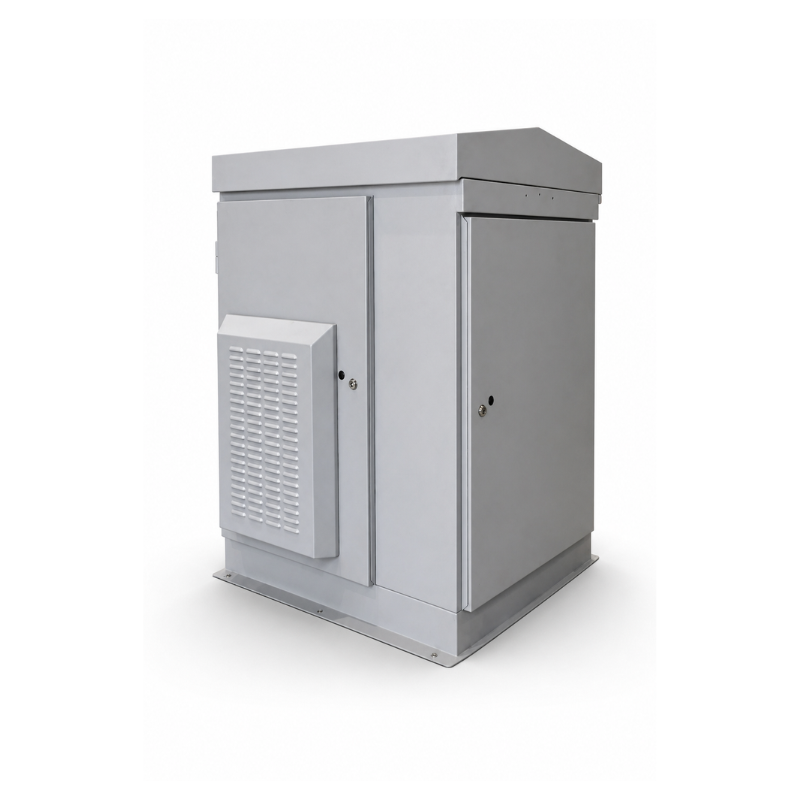

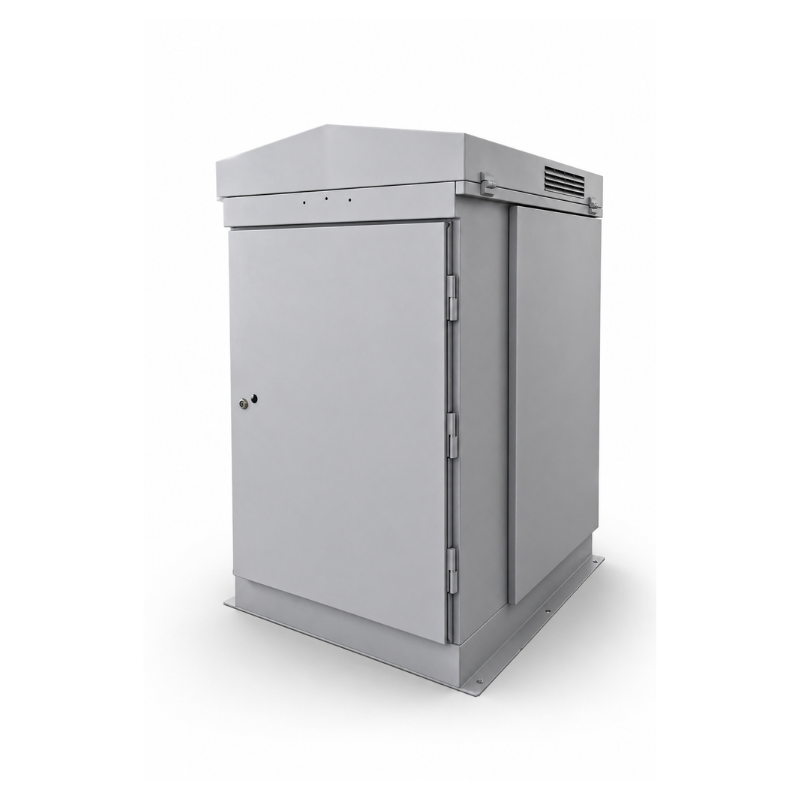

• LH / RH End Pod Cabinets
  Dedicated compartments for power distribution, battery systems and auxiliary equipment

• Depth Options

  • 600D – compact footprint installations

  • 800D – increased internal space for cable management and larger systems

• Rack Format

  • 19-inch mounting system (depth adjustable)

• Colour

  • Grey

  • Green

Key Features:

• IP55-rated enclosure (EN 60529) for dust and water protection

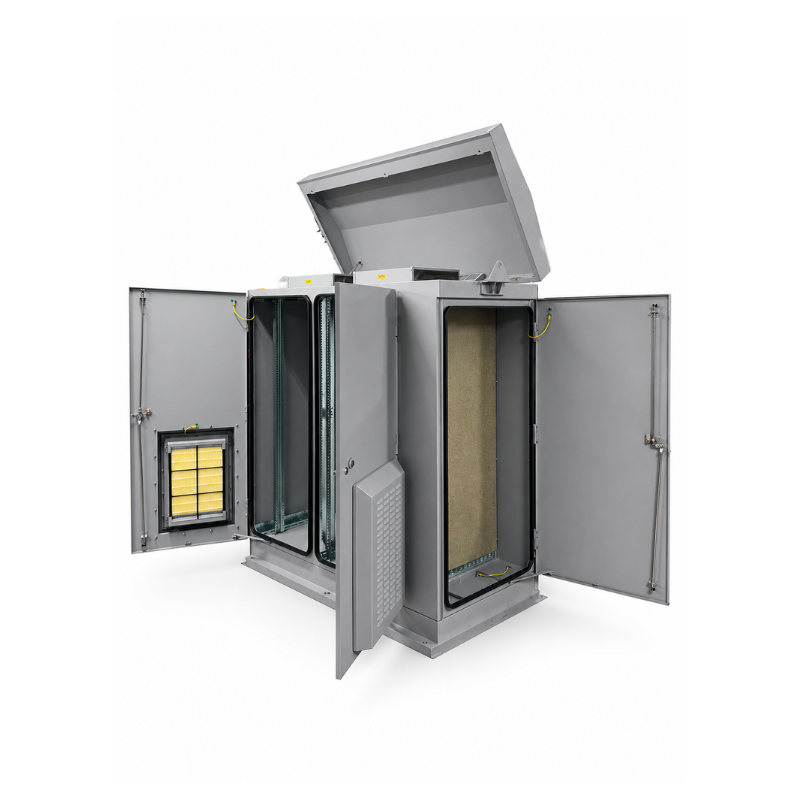

• Advanced forced-air cooling system with filtration

• Heat dissipation up to ~1.0kW (ΔT 10°C)

• 1.4003 stainless steel construction for durability

• Polyester powder-coated finish (RAL 7035 / Green options available)

• 3-point locking system with 221 Rail Cam lock compatibility

• T-bar cylinder locking mechanism

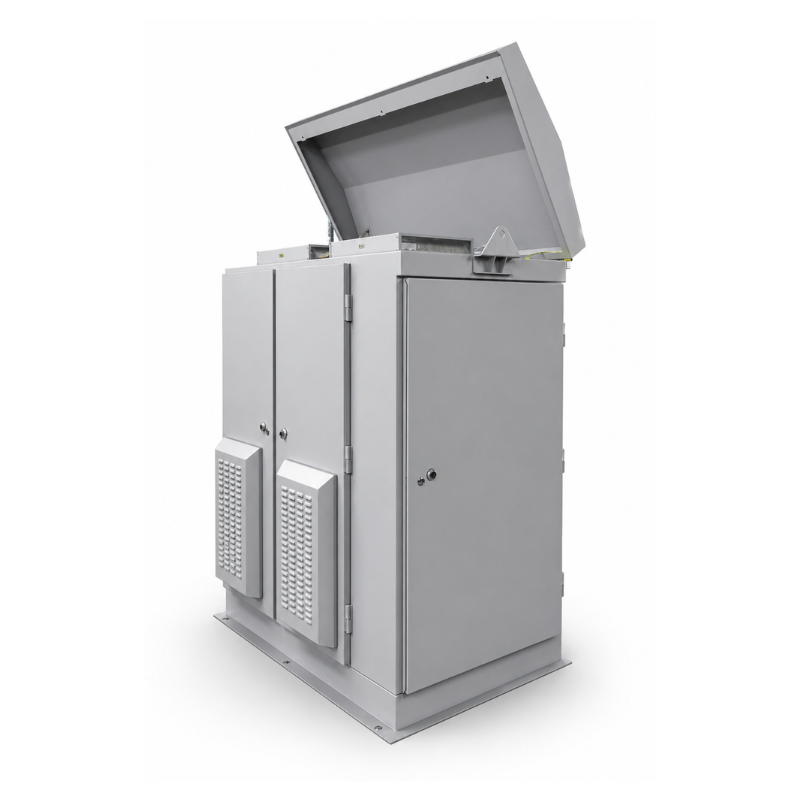

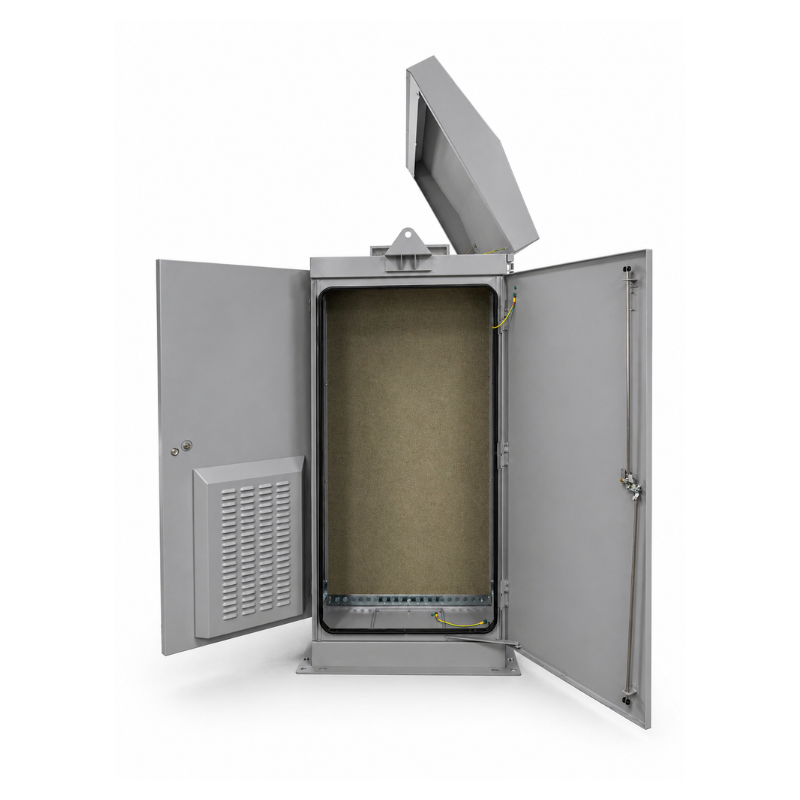

• Peaked, hinged roof design for weather resistance

• Depth-adjustable 19-inch mounting profiles

• Full-height removable rear panels for maintenance access

• Plain cable entry gland plates for structured routing

• 100mm integrated plinth (model dependent)

• Removable lifting brackets for installation

• Base-mounted earthing point for safety compliance

Technical Specifications (Range Overview):

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Mounting Format: 19-inch (depth adjustable)

• Cooling System: Forced-air fan with EN1822 hydrophobic filter

• Heat Dissipation: Up to ~1.0kW (ΔT 10°C)

• IP Rating: IP55 (EN 60529)

• Locking: 3-point locking + cam lock (221 Rail compatible)

• Compliance: ISO 9001:2015

Applications:

• Railway and trackside communication systems

• CCTV and security infrastructure

• Station information and control systems

• Telecom and fibre network equipment

• Power distribution and backup systems

• Outdoor active equipment protection
