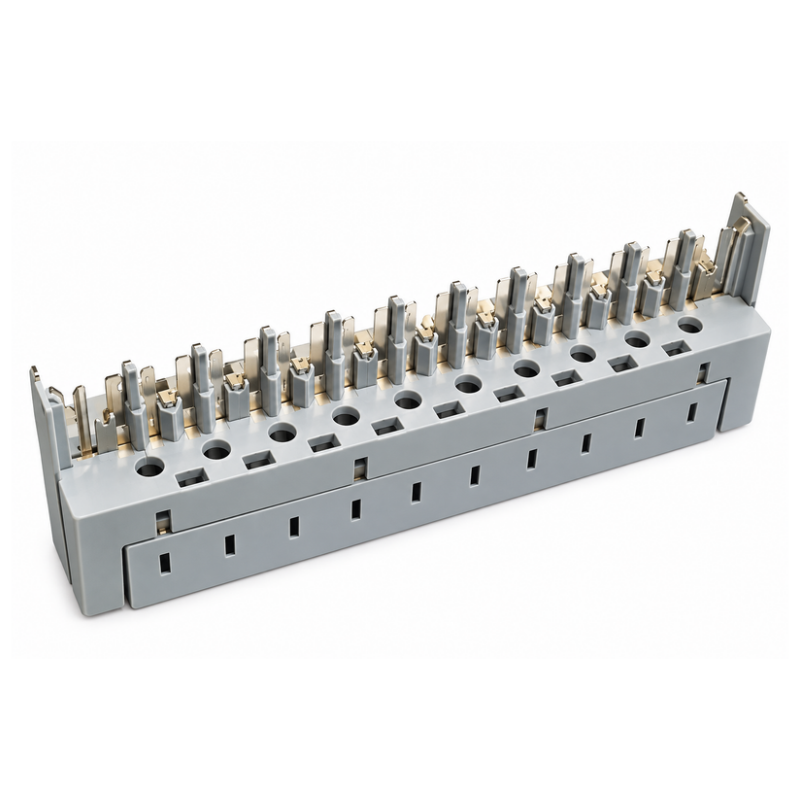

Protector Mounting 5B – 3 Pole – 10 Pair – Unloaded
The Protector Mounting 5B – 3 Pole – 10 Pair – Unloaded is a telecommunications protection accessory designed to accommodate three-pole Gas Discharge Tube (GDT) surge arresters within copper network distribution systems. Providing capacity for 10 surge arresters, this mounting magazine offers a practical solution for integrating surge protection components into telecommunications infrastructure.
Designed to fit directly onto compatible disconnection strips, the Protector Mounting 5B enables organised installation of surge arresters within telecommunications distribution frames and connection systems. Its compact construction supports efficient use of space while providing accessible mounting positions for individual protection components.
The mounting features high-specification silver-plated phosphor bronze contacts, providing reliable electrical connectivity and corrosion resistance. The durable Polybutylene Terephthalate (PBT) housing offers a robust structure suitable for telecommunications equipment installations.
Manufactured under ISO 9001-approved quality management processes, the Protector Mounting 5B is designed for dependable use in telecommunications network protection applications. Supplied unloaded, the mounting allows compatible three-pole surge arresters to be installed separately according to network protection requirements. A version designed for two-pole surge arresters is also available.
Key Features:
-
5B protector mounting for telecommunications surge protection
-
Designed for three-pole Gas Discharge Tube (GDT) surge arresters
-
Accommodates up to 10 surge arresters
-
Suitable for 10-pair telecommunications applications
-
Supplied unloaded without surge arresters
-
Designed to fit onto compatible disconnection strips
-
High-specification silver-plated electrical contacts
-
Phosphor bronze contact construction
-
Durable PBT housing
-
Compact design for telecommunications distribution systems
-
Grey housing for easy identification
-
Manufactured under ISO 9001-approved quality management processes
-
Alternative version available for two-pole surge arresters
-
Suitable for professional telecommunications installation and maintenance
Technical Specifications:
-
Product Type: Surge Arrester Protector Mounting
-
Model: 5B
-
Pole Configuration: 3 Pole
-
Pair Capacity: 10 Pair
-
Surge Arrester Capacity: 10
-
Compatible Arrester Type: Three-Pole Gas Discharge Tube (GDT)
-
Supplied Configuration: Unloaded
-
Mounting Compatibility: Disconnection Strips
-
Contact Material: Phosphor Bronze
-
Contact Finish: Silver Plated
-
Housing Material: Polybutylene Terephthalate (PBT)
-
Colour: Grey
-
Length: 113mm
-
Width: 22mm
-
Height: 41.1mm
-
Dimensions: 113 x 22 x 41.1mm
-
Manufacturing Quality Standard: ISO 9001
-
Alternative Configuration: Two-Pole Version Available
-
Primary Application: Telecommunications Surge Arrester Mounting
-
Pack Quantity: 1
Applications:
-
Telecommunications surge protection systems
-
Copper telecommunications network infrastructure
-
Gas Discharge Tube (GDT) arrester installation
-
Telecommunications distribution frames
-
Disconnection strip protection assemblies
-
Copper pair network protection
-
Telephone exchange infrastructure
-
Telecommunications cabinet installations
-
Network maintenance and upgrades
-
Electrical surge protection component mounting
-
Telecommunications connection and distribution systems
