Pin Locking Cable Bearer

Pin Locking Cable Bearer

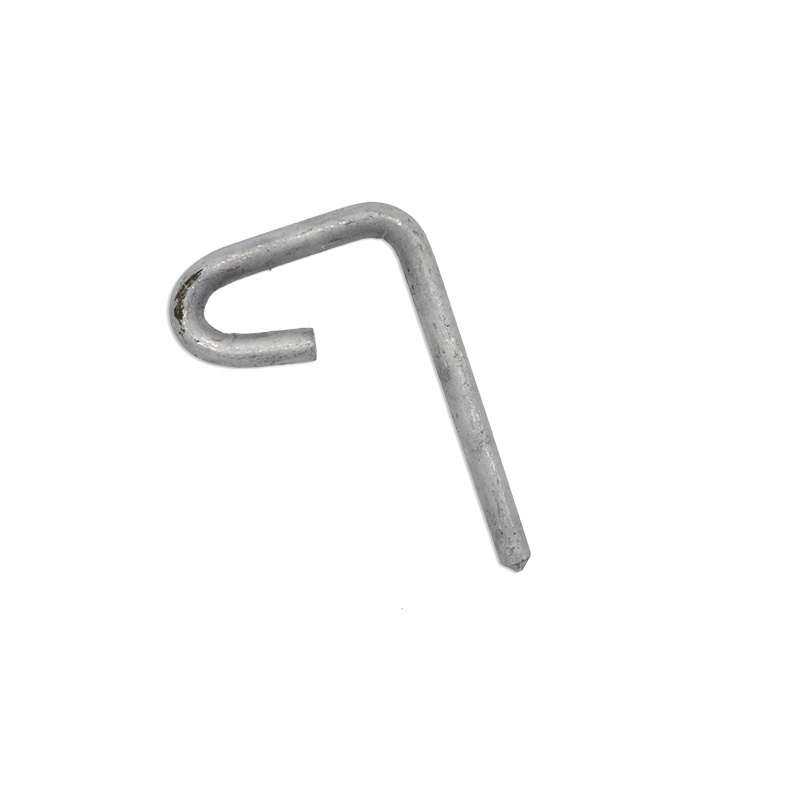

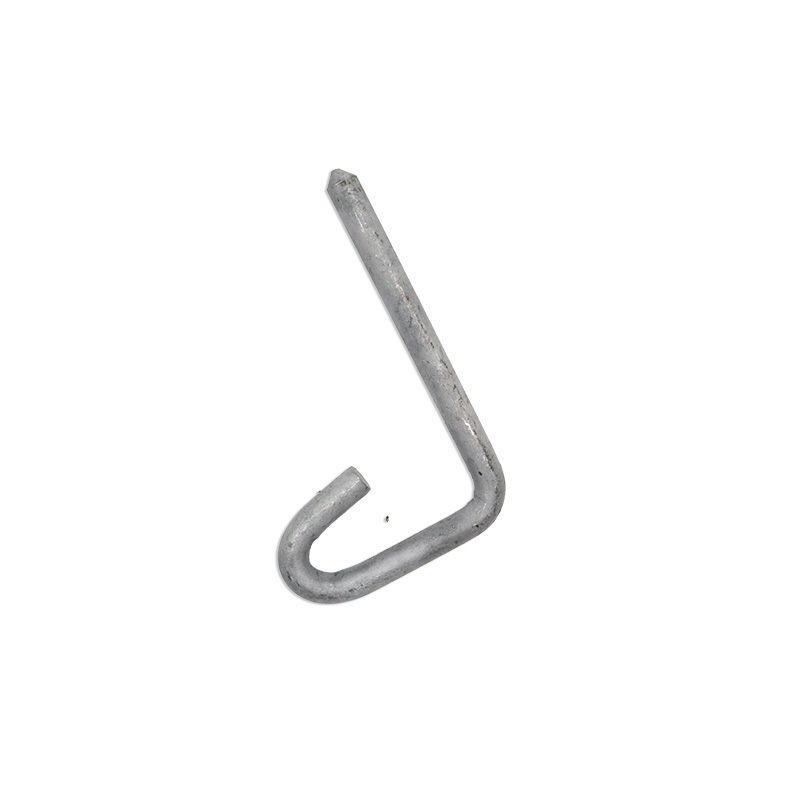

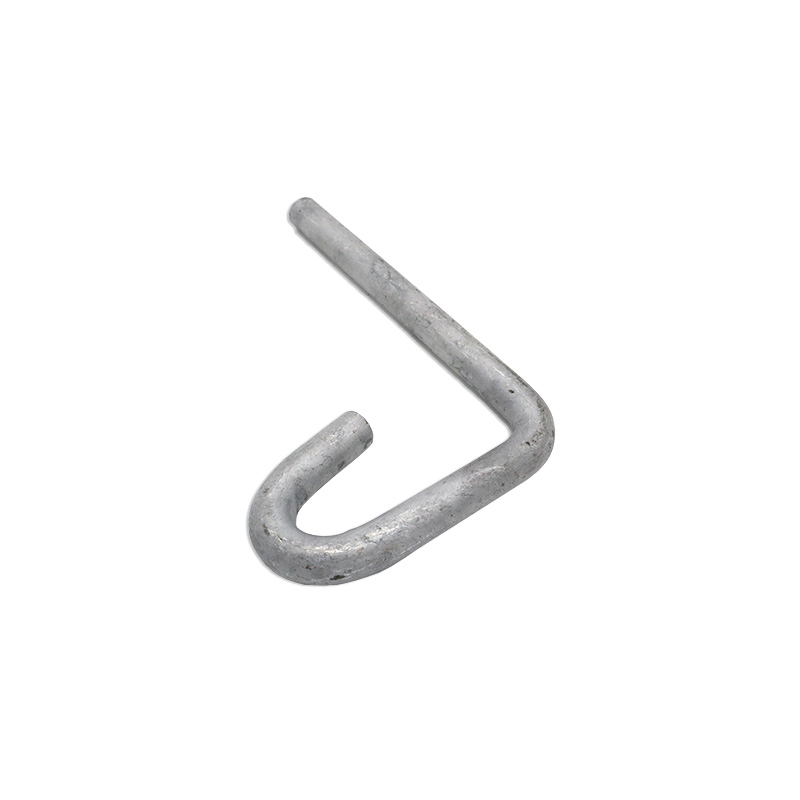

The Pin Locking Cable Bearer is a durable and secure solution for supporting and managing cables in telecoms and utility installations. Manufactured from galvanised high tensile steel, it offers exceptional strength, corrosion resistance, and long-term reliability, even in harsh outdoor environments. Designed with a simple yet effective locking pin mechanism, it ensures quick installation and secure cable retention, helping to keep work areas safe and organised.

This bearer is ideal for use in joint boxes, cable chambers, and other infrastructure where cable support and separation are essential. Its robust construction and lightweight design make it a dependable choice for professional engineers and contractors.

Technical Specifications:

• Material: Galvanised High Tensile Steel

• Weight: 0.11 kg

• Horizontal arm length: 90 mm

• Overall height: 75 mm

• Vertical drop before bend: 35 mm

• Vertical section after bend: 45 mm

• Bend radius width: 15 mm

• Gap height in hook section: 20 mm

• Total length with fixing section: 107 mm

• Distance between fixing holes: 33 mm

• Fixing hole diameter: 3.5 mm

• Round section diameter (side view): 9 mm
