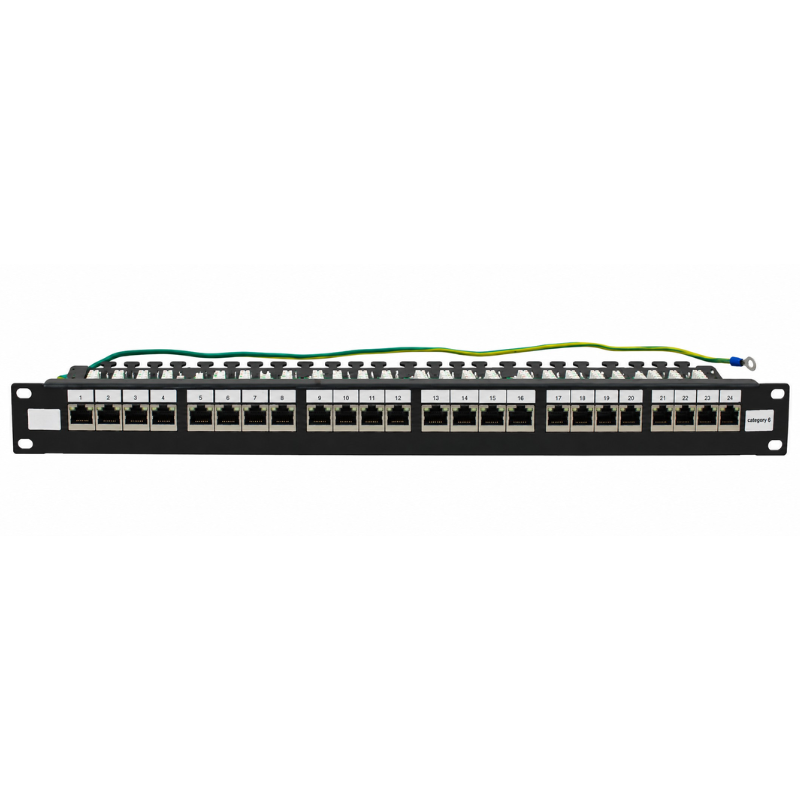

19" Patch Panel – CAT6 – FTP - Shielded – 20/20 – 1U – 24 Port - Right Angled

19" Patch Panel – CAT6 – FTP – Shielded – 20/20 – 1U – 24 Port – Right Angled

The 19" Patch Panel – CAT6 – FTP – Shielded – 20/20 – 1U – 24 Port – Right Angled is a high-performance network patch panel designed to deliver reliable Gigabit Ethernet connectivity while simplifying cable termination and management within structured cabling installations.

As part of the 20/20 Series, this 24-port Category 6 FTP patch panel features right-angled IDC terminations mounted horizontally on a rear tray, making cable termination faster, neater and more accessible than traditional vertical IDC layouts. The shielded construction minimises electromagnetic interference (EMI), ensuring dependable network performance in demanding environments.

Manufactured from CR4 mild steel with a durable matt black polyester finish, the panel includes a rear protective cover to shield terminations and further enhance screening. All ports are commonly bonded through the panel and can be grounded directly to the rack using the supplied earth wire. When installed with compatible Category 6 FTP cable and modules, the panel delivers performance exceeding Category 6 specifications, making it ideal for Gigabit Ethernet and high-speed LAN applications.

Key Features:

• 24-port Category 6 FTP patch panel

• Standard 19-inch rack mounting

• 1U rack height

• Right-angled IDC termination layout

• Shielded design reduces EMI

• Supports Gigabit Ethernet applications

• Rear cover protects terminations

• Integrated grounding via supplied earth wire

• Colour-coded T568B IDC labels

• High-density professional design

Technical Specifications:

• Product Type: FTP Patch Panel

• Network Category: Cat6

• Shielding: FTP (Shielded)

• Series: 20/20

• Port Capacity: 24 Ports

• Rack Width: 19-inch

• Rack Height: 1U (44mm)

• Width: 483mm

• Depth: 98mm

• Fixing Centres: 467mm

• Material: CR4 Mild Steel Sheet to BS EN 10130:1999 DC01

• Finish: Matt Black Polyester Paint

• IDC Configuration: Industry Standard 4-Way IDC

• IDC Labelling: Colour-Coded T568B

• Socket Labels: Write-On Silk Screen

• Cable Management: Left and Right Cable Tie Positions

• Earthing: Common Grounding with Supplied Earth Wire

Compliance

• ANSI/TIA-568-C.2 Category 6 Specification

Applications:

• Structured cabling systems

• Gigabit Ethernet networks

• Data centres

• Enterprise LANs

• Server rooms

• Telecommunications cabinets

• Network cabinets

• Commercial office networks

• Educational facilities

• Industrial Ethernet installations
