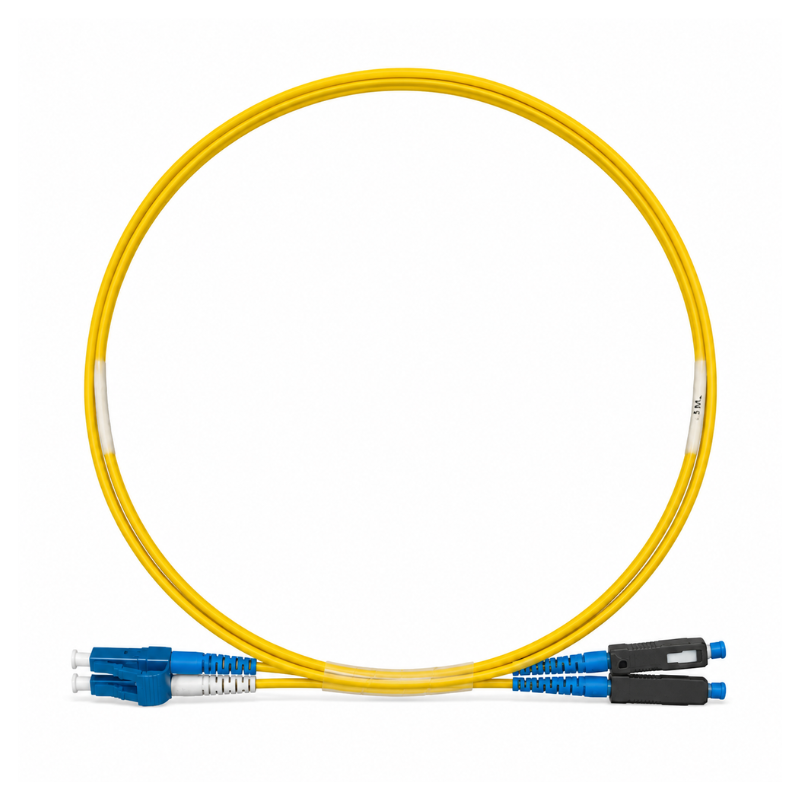

Patchcord – SM – LC to MU – Duplex – 2mm x 3m

Patchcord – SM – LC to MU – Duplex – 2mm x 3m

The Patchcord – SM – LC to MU – Duplex – 2mm x 3m is a high-performance singlemode fibre optic patch lead designed for reliable, low-loss optical connectivity in telecommunications, data centres, FTTH networks and enterprise installations.

Manufactured using LSZH (Low Smoke Zero Halogen) cable, this duplex patchcord delivers excellent optical performance while meeting stringent IEC 61300 requirements. Featuring a LC connector at one end and an MU connector at the other, it is ideal for connecting equipment with differing fibre interfaces.

The precision-engineered zirconia ferrules provide exceptional alignment, delivering Grade B insertion loss performance with an average insertion loss of ≤0.12dB and a maximum of ≤0.25dB for 97% of connections. Return loss is rated at ≥60dB (APC) and ≥50dB (UPC), ensuring reliable signal transmission across demanding fibre optic networks.

Designed for long-term reliability, the patchcord has been tested for crush resistance, tensile strength, bending, vibration, impact and environmental durability in accordance with IEC standards, making it suitable for professional indoor installations.

Key Features:

• Singlemode duplex fibre optic patchcord

• LC to MU connector configuration

• 3m cable length

• 2mm LSZH cable

• Low insertion loss – Grade B performance

• Zirconia ceramic ferrules

• High return loss for stable optical performance

• IEC 61300 compliant

• Excellent mechanical and environmental durability

• Suitable for telecommunications and data centre applications

Technical Specifications:

• Product Type: Fibre Optic Patchcord

• Fibre Type: Singlemode (SM)

• Connector A: LC

• Connector B: MU

• Configuration: Duplex

• Cable Diameter: 2mm

• Cable Length: 3m

• Cable Material: LSZH (Low Smoke Zero Halogen)

• Connector Body Material: Thermoplastic

• Ferrule Material: Zirconia

• IEC Compliance: IEC 61300 (100% compliant)

Optical Performance

• Insertion Loss (Grade B): Average ≤0.12dB, Maximum ≤0.25dB (97% of connections)

• Return Loss:

  • ≥60dB (APC)

  • ≥50dB (UPC)

Mechanical Performance

• Crush Resistance: 300N (1 min), 100N (10 min)

• Fibre Retention: 70N

• Torsion Resistance: 15N, 25 cycles

• Static Side Load: 1N for 1 hour

• Connector Durability: 200 mating cycles

• Coupling Mechanism Tensile Strength: 40N

• Impact Resistance: 1.5m drop height, 5 drops

• Vibration Tested: 10–55Hz, 3 axes

Environmental Performance

• Operating, Storage & Transport Temperature: -40°C to +75°C

• Accelerated Ageing: 70°C for 336 hours

• Temperature Cycling: -20°C to +70°C (12 cycles)

• Water Immersion Tested: IEC 61300-2-45

• Dust Tested: IEC 61300-2-27

Applications:

• Fibre optic telecommunications

• Data centres

• Enterprise networks

• FTTH installations

• Optical distribution frames

• Patch panels

• Network cabinets

• Broadband infrastructure

• Test laboratories

• High-speed optical communications
