Patchcord – OS2 – E2000 APC to LC/PC – Duplex – 2m

Patchcord – OS2 – E2000/APC to LC/PC – Duplex – 2m

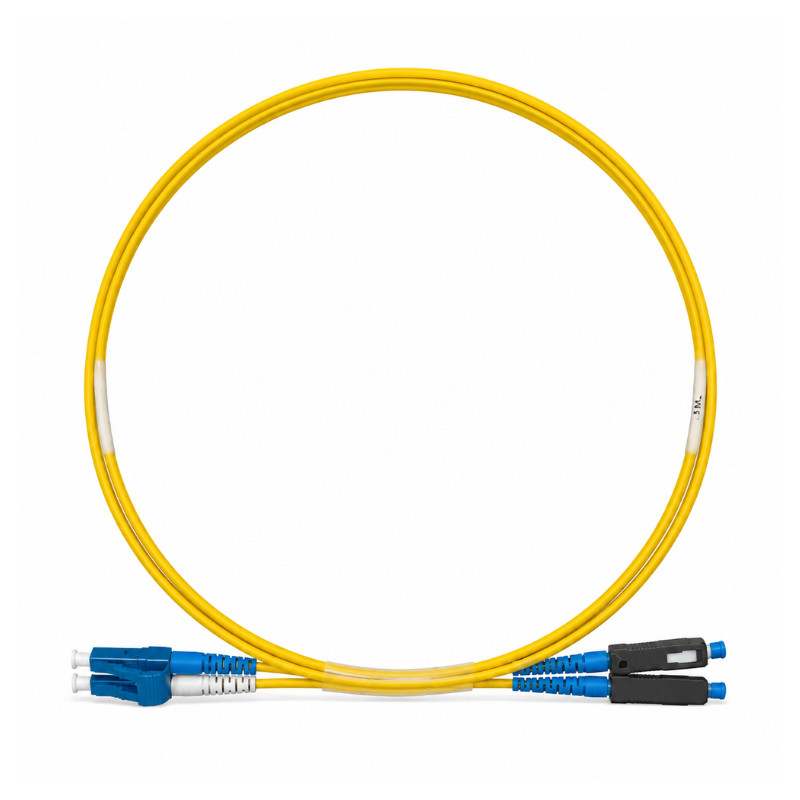

The Patchcord – OS2 – E2000/APC to LC/PC – Duplex – 2m is a premium singlemode fibre optic patchcord designed to deliver high-performance optical connectivity for telecommunications networks, FTTH deployments and data centre applications.

Manufactured using OS2 G.657A2 singlemode fibre with a durable 2.0mm LSZH (Low Smoke Zero Halogen) duplex cable, this patchcord provides exceptional optical performance with low insertion loss and high return loss. Fitted with an E2000/APC connector at one end and an LC/PC connector at the other, it is ideal for applications requiring low back reflection and reliable signal transmission.

Designed for long-term performance in demanding environments, the patchcord features high-precision zirconia ferrules, excellent mechanical durability and full compliance with IEC-61300 standards. The 2-metre length is ideal for equipment interconnections within optical distribution frames, patch panels and telecommunications cabinets.

Key Features:

• OS2 singlemode duplex fibre patchcord

• E2000/APC to LC/PC connectors

• 2m cable length

• 2.0mm LSZH cable

• G.657A2 bend-insensitive fibre

• High-precision zirconia ferrules

• Ultra-low insertion loss

• High return loss for APC applications

• IEC-61300 compliant

• Excellent mechanical and temperature stability

Technical Specifications:

• Product Type: Fibre Optic Patchcord

• Fibre Type: OS2 G.657A2 Singlemode

• Connector A: E2000/APC

• Connector B: LC/PC

• Configuration: Duplex

• Cable Diameter: 2.0mm

• Cable Length: 2m

• Cable Colour: Yellow

• Cable Material: LSZH (Low Smoke Zero Halogen)

• Connector Material:

  • Body: Thermoplastic

  • Ferrule: Zirconia

• Insertion Loss (IL): Grade B ≤0.12dB Average, ≤0.25dB Maximum (97% of connections)

• Return Loss (RL):

  • ≥60dB (APC)

  • ≥50dB (UPC/PC)

• Mechanical Test Variation: ΔIL ≤0.20dB

• Environmental Test Variation: ΔIL ≤0.20dB

• Crush Resistance:

  • 300N (Short Term)

  • 100N (Long Term)

• Fibre Retention: 70N

• Mating Durability: 200 Cycles

• Operating, Transport & Storage Temperature: -40°C to +75°C

Standards

• IEC-61300 Compliant

• IEC 60794 Mechanical Testing

• LSZH Construction

Applications:

• Telecommunications networks

• FTTH deployments

• Data centres

• Optical distribution frames

• Fibre patch panels

• Enterprise networks

• High-speed backbone connections

• Optical transmission systems

• Server rooms

• Network cabinets
