MAFI 43692 Wall Mount Installation Kit – Corner Antenna Pole Mount
The MAFI 43692 Wall Mount Installation Kit for Corners is a heavy-duty mounting solution designed for securing antenna poles and telecommunications equipment to the corners of buildings and structural walls. Specifically developed for mobile network infrastructure, the kit provides a stable mounting arrangement with a 50mm clearance between the pole and wall corner.
Designed to support medium-weight antenna poles and associated equipment, the mounting system accommodates pole diameters from 60mm to 114.3mm. Its versatile configuration makes it suitable for a wide range of telecommunications and wireless network installations, including rooftop and building-mounted antenna systems.

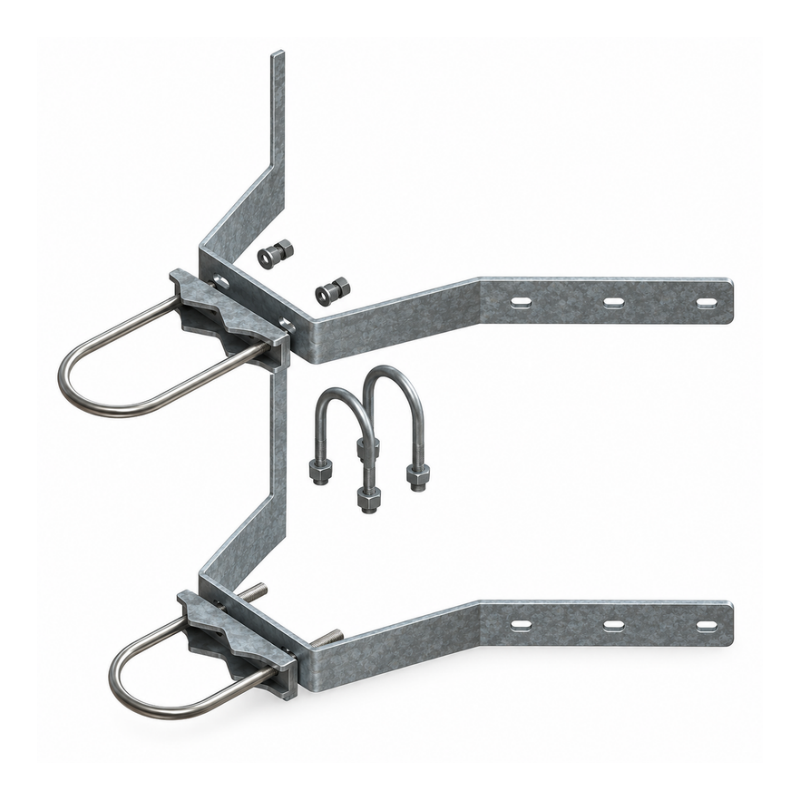

Manufactured using S355MC steel with a hot-dip galvanised finish, the wall brackets provide strength and corrosion resistance for demanding outdoor environments. The kit includes two mounting brackets and the necessary U-bolts, nuts and washers for securing a compatible antenna pole.
The MAFI 43692 Corner Wall Mount can be installed directly onto brick or concrete walls or secured using through-mount fixings with back plates, allowing flexibility across different building structures.
Designed to support a maximum equipment mass of 100kg, subject to structural assessment and installation conditions, the MAFI 43692 offers a dependable solution for professional telecommunications engineers and mobile network infrastructure contractors.
Key Features:
-
MAFI 43692 corner wall mounting kit
-
Designed for mounting antenna poles at building corners
-
Provides 50mm clearance between pole and wall corner
-
Suitable for antenna poles with diameters from 60mm to 114.3mm
-
Supports medium-weight telecommunications equipment
-
Maximum supported equipment mass of 100kg, subject to structural suitability
-
Two heavy-duty galvanised steel mounting brackets
-
Manufactured from S355MC steel
-
Hot-dip galvanised finish for outdoor corrosion protection
-
Includes M12 U-bolts, nuts and washers
-
Suitable for direct mounting to brick or concrete walls
-
Compatible with through-mount installations using back plates
-
Designed for professional mobile network infrastructure
-
CE marked with EN 1090 referenced in the manufacturer's datasheet
-
Suitable for rooftop and building-mounted antenna installations
Technical Specifications:
-
Brand: MAFI
-
Product Type: Corner Wall Mount Installation Kit
-
Manufacturer Part Number: 43692
-
E-Order Number (SEG): 6000694
-
Mounting Configuration: Corner Wall Mount
-
Wall Clearance: 50mm
-
Minimum Pole Diameter: 60mm
-
Maximum Pole Diameter: 114.3mm
-
Compatible Pole Diameter Range: 60–114.3mm
-
Bracket Material: S355MC Steel
-
Bracket Finish: Hot-Dip Galvanised
-
Number of Wall Brackets: 2
-
U-Bolt Size: M12
-
U-Bolt Tightening Torque: 31Nm
-
Maximum Supported Equipment Mass: 100kg
-
Ultimate Transient Man-Load: 2.4kN
-
Ultimate Lateral Reaction Force: 2,300N per Bracket
-
Package Length: 800mm
-
Package Width: 600mm
-
Package Height: 340mm
-
Package Weight: 12.5kg
-
Installation Surface: Brick or Concrete
-
Alternative Installation: Through-Mount Fixings with Back Plates
-
Referenced Standard: EN 1090
-
Primary Application: Telecommunications Antenna Pole Mounting
-
Pack Quantity: 1 Kit
Kit Contents:
-
2 x Wall Mounting Brackets – S355MC steel, hot-dip galvanised
-
4 x M12 U-Bolts – A4 or 8.8 FZV
-
16 x M12 Nuts – Grade 8.8 FZV
-
8 x Washers – Grade 8.8 FZV
Antenna pole and wall fixings are not listed as included in the manufacturer's kit contents.
Load and Resistance Specifications:
The manufacturer's technical datasheet provides the following ultimate rotational torque capacities per bracket for different pole diameters:
-
60.3mm Pole: 230Nm
-
76.1mm Pole: 298Nm
-
88.9mm Pole: 353Nm
-
101.6mm Pole: 408Nm
-
114.3mm Pole: 462Nm
These figures represent ultimate resistance values, not permissible working loads. The supporting wall structure, fixing arrangement and applied loads must be assessed by a suitably qualified designer.
Applications:
-
Mobile telecommunications antenna installations
-
4G and 5G network infrastructure
-
Building corner antenna mounting
-
Rooftop telecommunications installations
-
Wireless communication equipment mounting
-
External antenna pole support
-
Brick and concrete wall mounting
-
Telecommunications infrastructure upgrades
-
Mobile network site construction
-
Building-mounted radio equipment
-
Outdoor wireless network installations
-
Professional antenna mounting assemblies
