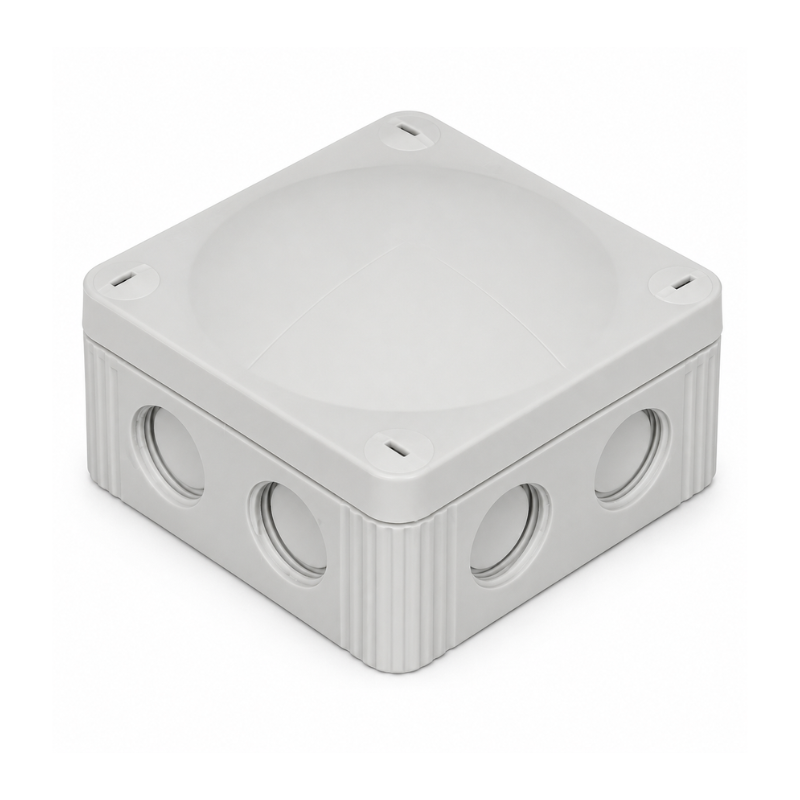

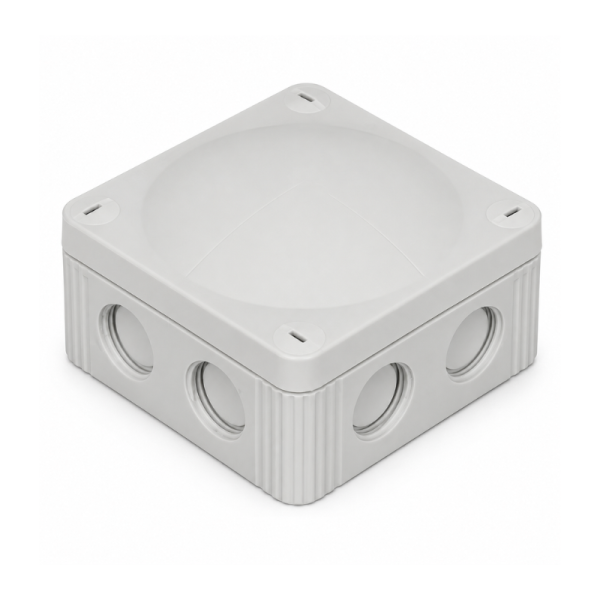

Junction Box – Combi – IP66/IP67 – Grey
The Junction Box – Combi – IP66/IP67 – Grey is a robust weatherproof enclosure designed to protect electrical connections in demanding indoor and outdoor environments.
Manufactured from durable polypropylene, this compact junction box provides excellent resistance to dust, water and impact, making it ideal for electrical installations exposed to harsh conditions. With an IP66/IP67 protection rating, it safeguards cable connections against dust ingress, powerful water jets and temporary immersion.
The enclosure features eight integrated knockouts, allowing flexible cable entry from multiple directions to simplify installation. Designed for surface mounting, the Combi 308 junction box complies with EN 60670-1 and EN 60670-22, making it suitable for professional electrical, industrial and telecommunications installations.
Operating across a wide temperature range from -30°C to +100°C, this junction box provides reliable long-term performance in challenging environments.
Key Features:
-
IP66/IP67 weatherproof junction box
-
Durable polypropylene construction
-
Eight integrated knockouts
-
Surface mounting design
-
Suitable for indoor and outdoor use
-
Excellent dust and water resistance
-
Wide operating temperature range
-
Compact 85 × 85mm enclosure
-
Manufactured to EN 60670 standards
-
Grey finish for professional installations
Technical Specifications:
-
Product Type: Junction Box
-
Product Range: Combi 308
-
Colour: Grey
-
Material: Polypropylene
-
IP Rating: IP66/IP67
-
Dimensions: 85 × 85 × 51mm
-
Length: 85mm
-
Width: 85mm
-
Depth: 51mm
-
Number of Knockouts: 8
-
Minimum Operating Temperature: -30°C
-
Maximum Operating Temperature: +100°C
-
Mounting Type: Surface Mount
-
Standards: EN 60670-1, EN 60670-22
-
Guarantee: 1 Year
