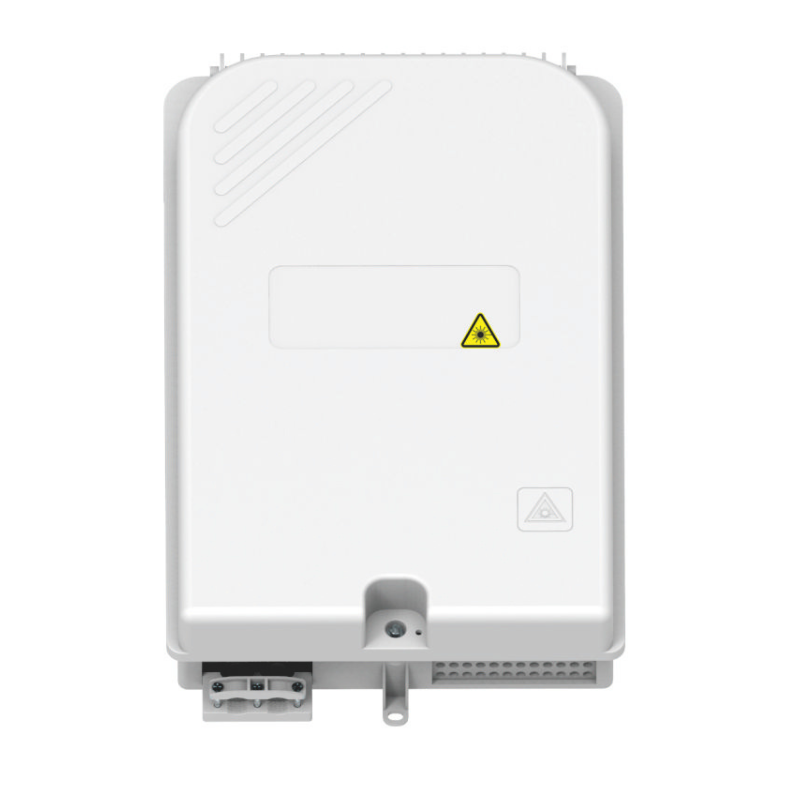

Internal/External 64F FDP - Fibre Distribution Point

Internal / External 64F FDP – Fibre Distribution Point

The Internal / External 64F FDP – Fibre Distribution Point is a high-capacity, scalable enclosure engineered for large-scale fibre distribution in MDU and access network environments. Designed for both indoor and outdoor installations, it delivers robust protection alongside advanced fibre management capabilities.

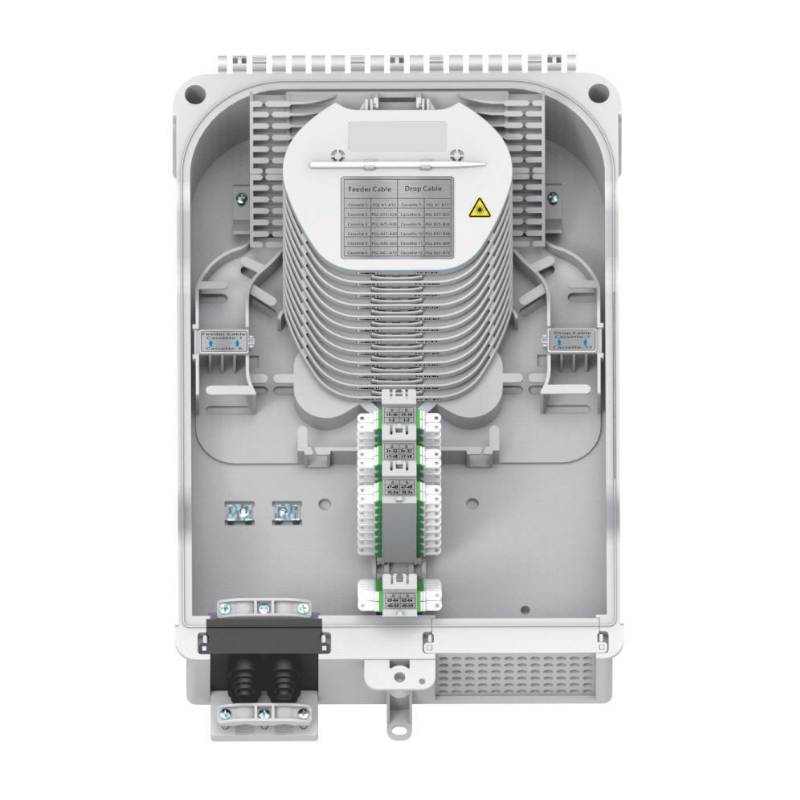

Built for high-density deployments, the enclosure features a structured internal layout that supports complex fibre routing, high-capacity splicing, splitter integration and organised cable management. This ensures fast, consistent and professional installations across demanding network environments.

With support for mid-span cable access and extensive splitter configurations, the 64F FDP is ideal for major residential developments, commercial sites and network expansion projects, providing a future-proof solution for fibre distribution.

Key Features:

• High-capacity, scalable design for large deployments

• Suitable for internal and external installations (IP55 rated)

• Advanced fibre routing and cable management system

• Installer-friendly access for efficient deployment

• Secure fibre retention and organisation

• High-density, splitter-ready configuration

• Supports mid-span cable access

• Durable, impact-resistant housing

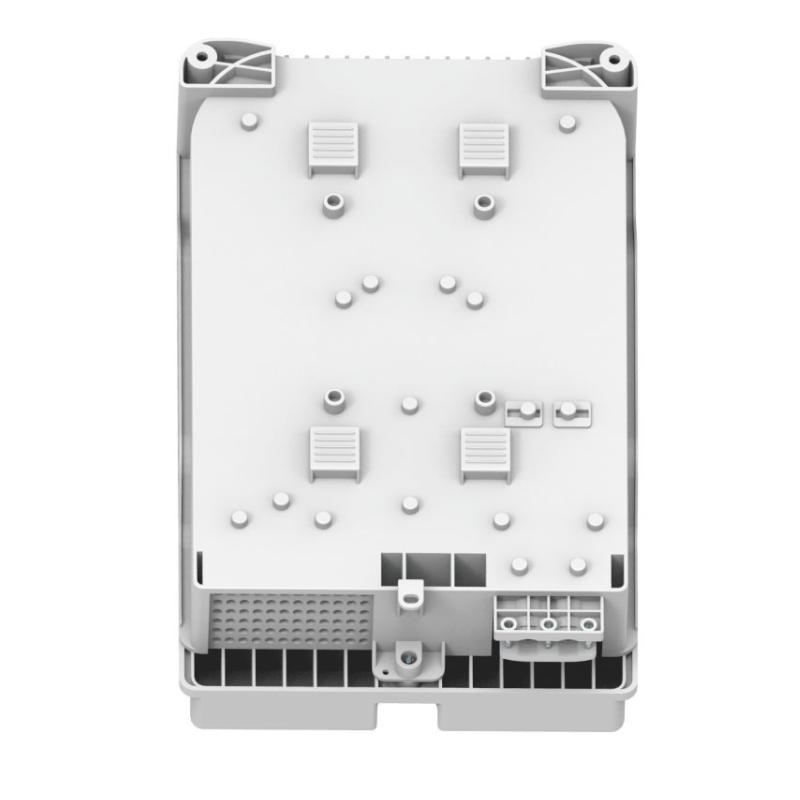

• Wall or pole mountable

Technical Specifications:

• Product Type: Fibre Distribution Point (FDP)

• Fibre Capacity: 64F (LC-DX) / 32F (SC-SX)

• Splice Capacity: Up to 144 fibres

• Splitter Capacity:

  • 1:4 PLC – 12 units

  • 1:8 PLC – 8 units

  • 1:16 PLC – 4 units

  • 1:32 PLC – 2 units

• Mounting Options: Wall or pole mounted

• Cable Entry:

  • Feeder ports: 4 (7–18mm)

  • Drop ports: 72 (3–5mm)

• IP Rating: IP55

• Material: PC + ABS (UL94-V0 flame rated)

• Colour: Light Grey

• Dimensions (L × W × H): 428.5 × 274 × 126.5 mm

Applications:

• High-density MDU fibre distribution

• FTTH and FTTx network deployments

• Internal and external building installations

• Large-scale feeder-to-drop cable management

• Residential, commercial and infrastructure fibre networks
