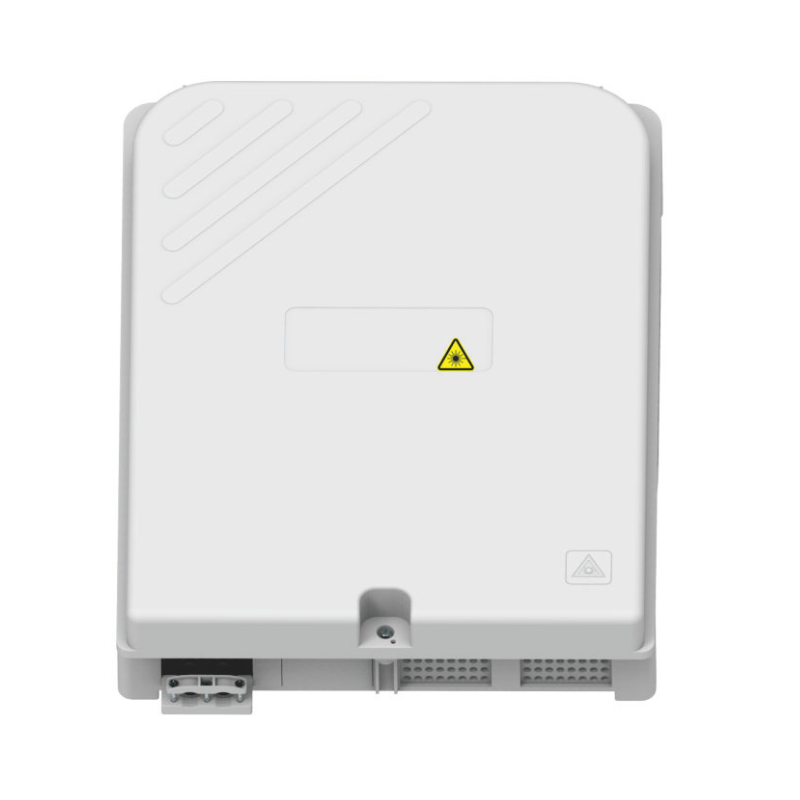

Internal/External 144F FDP – Fibre Distribution Point

Internal/External 144F FDP – Fibre Distribution Point

The Internal / External 144F FDP – Fibre Distribution Point is a high-capacity, scalable enclosure engineered for large-scale fibre distribution in MDU, residential and access network environments. Designed for both indoor and outdoor installations, it provides robust protection alongside advanced fibre management capabilities.

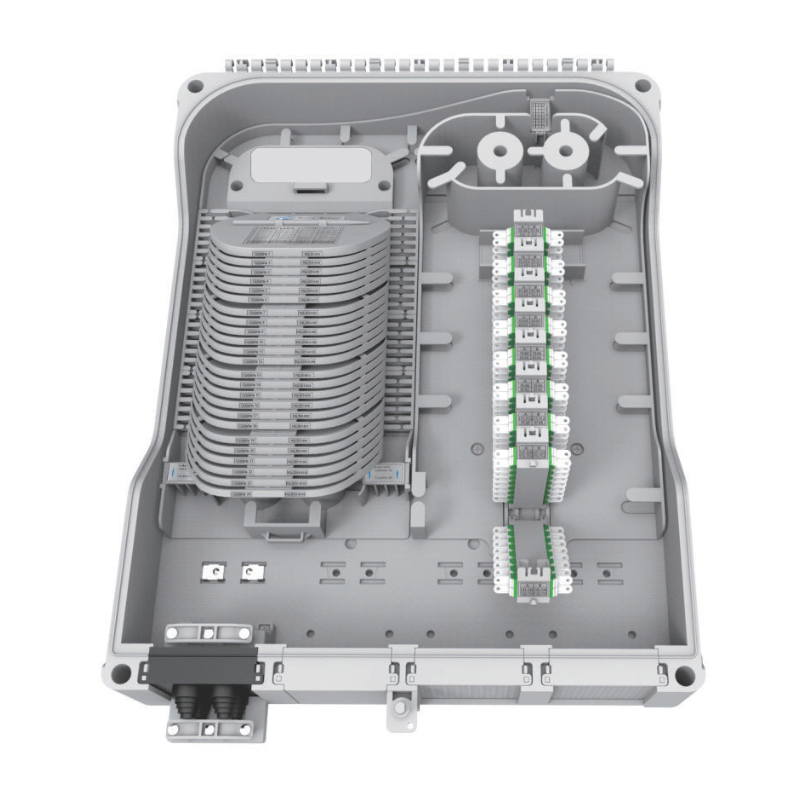

Built for high-density deployments, this FDP features a structured internal layout that supports extensive fibre routing, high-capacity splicing, splitter integration and organised cable management. This ensures fast, consistent and professional installations across complex network infrastructures.

With support for mid-span cable access and extensive splitter configurations, the 144F FDP is ideal for major multi-dwelling developments, commercial sites and network expansion projects, delivering a future-proof fibre distribution solution.

Key Features:

• Ultra high-capacity design for large-scale deployments

• Suitable for internal and external installations (IP55 rated)

• Advanced fibre routing and cable management system

• Installer-friendly access for efficient deployment

• Secure fibre retention and organisation

• High-density, splitter-ready configuration

• Supports mid-span cable access

• Durable, impact-resistant housing

• Wall or pole mountable

Technical Specifications:

• Product Type: Fibre Distribution Point (FDP)

• Fibre Capacity: 144F (LC-DX) / 72F (SC-SX)

• Splice Capacity: Up to 576 fibres

• Splitter Capacity:

  • 1:4 PLC – 18 units

  • 1:8 PLC – 18 units

  • 1:16 PLC – 12 units

  • 1:32 PLC – 4 units

• Mounting Options: Wall or pole mounted

• Cable Entry:

  • Feeder ports: 4 (7–18mm)

  • Drop ports: 144 (3–5mm)

• IP Rating: IP55

• Material: PC + ABS (UL94-V0 flame rated)

• Colour: Light Grey

• Dimensions (L × W × H): 512.7 × 388 × 126.5 mm

Applications:

• High-density MDU fibre distribution

• FTTH and FTTx network deployments

• Internal and external building installations

• Large-scale feeder-to-drop cable management

• Residential, commercial and infrastructure fibre networks
