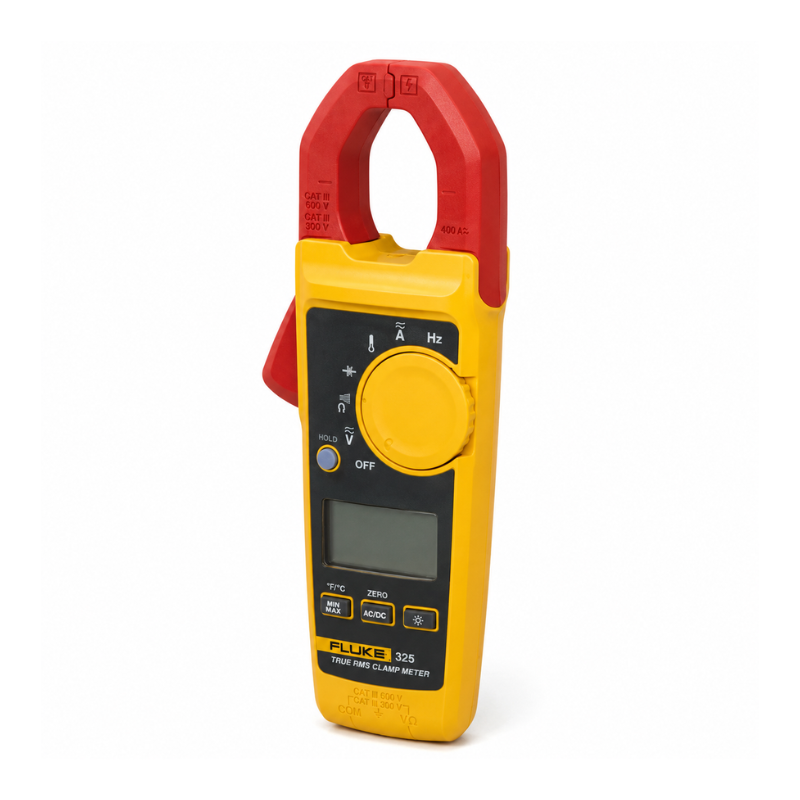

Fluke 325 Clamp Meter – 400A – AC/DC – True RMS

Fluke 325 Clamp Meter – 400A – AC/DC – True RMS

The Fluke 325 Clamp Meter – 400A – AC/DC – True RMS is a professional-grade digital clamp meter designed for electricians, telecommunications engineers, industrial maintenance teams and HVAC technicians requiring accurate electrical measurements in demanding environments.

Featuring True RMS technology, the Fluke 325 delivers precise readings on both linear and non-linear loads. It measures up to 400A AC/DC current and 600V AC/DC voltage, while also providing resistance, capacitance, frequency, continuity and temperature measurement capabilities, making it a versatile all-in-one diagnostic instrument.

The meter features auto-ranging, data hold, auto power-off and a 4000-count backlit LCD display for quick, accurate readings in a variety of working conditions. With a 30mm jaw opening, CAT III 600V and CAT IV 300V safety ratings, and a rugged design supplied complete with test leads, soft carry case and user manual, the Fluke 325 is ideal for professional electrical testing, troubleshooting and maintenance.

Key Features:

• True RMS AC/DC clamp meter

• Measures up to 400A AC/DC current

• Measures up to 600V AC/DC voltage

• Resistance, capacitance and frequency measurement

• Temperature measurement function

• Auto-ranging and auto power-off

• 4000-count LCD display

• 30mm jaw opening

• CAT III 600V / CAT IV 300V safety rating

• Supplied with test leads, soft case and user manual

Technical Specifications:

• Product Type: AC/DC True RMS Clamp Meter

• Brand: Fluke

• Model: 325

Electrical Measurement

• AC Current: 400A

• DC Current: 400A

• AC Voltage: 600V

• DC Voltage: 600V

• Resistance: 40kΩ

• Capacitance: 9999µF

• Frequency: 5Hz – 500Hz

• Temperature: -10°C to +400°C

• Continuity Test: Yes

Display & Functions

• Display: LCD

• Display Count: 4000

• Auto Ranging: Yes

• Data Hold: Yes

• Auto Power Down: Yes

• Battery Level Indicator: Yes

Physical Specifications

• Jaw Opening: 30mm

• Dimensions (H × W × D): 207 × 75 × 34mm

• Weight: 0.2kg

Power

• Battery Type: 2 × AAA Alkaline

Environmental

• Operating Temperature: -10°C to +50°C

• Storage Temperature: -30°C to +60°C

• Humidity: Up to 90% RH

Safety & Compliance

• Safety Rating: CAT III 600V / CAT IV 300V

• Standard: BS EN 61326-1

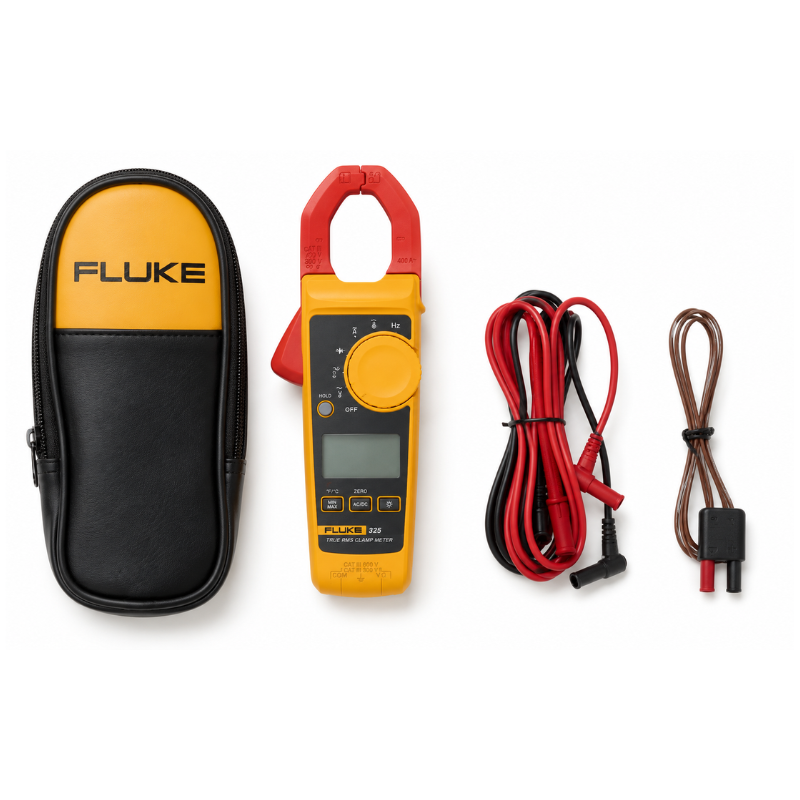

Supplied With

• Test Leads

• Soft Carry Case

• User Manual

Applications:

• Electrical testing

• Industrial maintenance

• Telecommunications infrastructure

• HVAC servicing

• Power distribution systems

• Motor testing

• Control panels

• Building services

• Fault finding

• Preventative maintenance
