Flexible Duct Drill Bit Kit – Duct Blockage Removal (Excludes Drill)

Flexible Duct Drill Bit Kit – Duct Blockage Removal (Excludes Drill)

The Flexible Duct Drill Bit Kit is a specialist duct clearance solution designed to remove blockages from underground PVC ducting during fibre optic cable and microduct installations. Developed for telecommunications engineers and fibre broadband installers, the kit provides an effective method of clearing mud, stones and general ground debris that can obstruct existing duct routes.

Designed specifically for use in PVC duct bends, the flexible drill assembly can follow 90° bends to reach and remove obstructions that would otherwise prevent cable or microduct installation. The kit uses a specially selected countersink drill bit, designed to reduce the risk of damaging cables already installed within the duct. The flexible drill piece and extension are manufactured from stranded stainless steel wire rope with high-density polyethylene (HDPE) sheathing. This construction provides the flexibility required to navigate duct bends while allowing the operator to grip and guide the assembly during operation.

The kit includes a 1m flexible drill piece and a 1m extension, providing a combined nominal length of 2m. Once the blockage has been cleared, a duct rod can be passed through the newly opened route to assist with the installation of fibre optic cables or microducts. Supplied complete with a countersink drill bit, protective cap, Allen key and storage case, the kit is designed for use with a compatible battery-operated drill, which is not included.

Key Features:

• Specialist flexible duct drill kit for removing underground duct blockages

• Designed for PVC ducting used in telecommunications installations

• Clears mud, stones and general ground debris

• Flexible construction allows navigation through 90° duct bends

• Countersink drill bit helps reduce the risk of damaging existing cables

• Suitable for restoring blocked duct routes before cable installation

• 1m flexible drill piece with additional 1m extension

• Stranded stainless steel wire rope construction

• HDPE outer sheathing for flexibility and handling

• Replaceable countersink drill bit

• Protective cap included for the drill bit

• 2mm Allen key supplied for drill bit removal and replacement

• Polyester carrying case for convenient transport and storage

• Designed for use with a compatible battery-operated drill

• Ideal for FTTH, fibre broadband and telecommunications installations

Technical Specifications:

• Product Type: Flexible Duct Drill Bit Kit

• Product Range: Fibreflow Accessories

• Datasheet Reference: UK_DS_74813

• Primary Application: Underground Duct Blockage Removal

• Suitable Duct Type: PVC Ducting

• Bend Compatibility: Designed to Navigate 90° Duct Bends

• Drill Piece Length: 1,000mm

• Extension Length: 1,000mm

• Combined Nominal Length: 2,000mm

• Drill Piece Dimensions: 1,000 x 13 x 13mm

• Extension Dimensions: 1,000 x 13 x 13mm

• Drill Piece Material: Stranded Stainless Steel Wire / HDPE

• Extension Material: Stranded Stainless Steel Wire / HDPE

• Countersink Drill Bit Dimensions: 45 x 12 x 12mm

• Countersink Drill Bit Material: Carbon Steel

• Protective Cap: 12mm

• Allen Key Size: 2mm

• Carrying Case Material: Polyester

• Carrying Case Dimensions: 1,100 x 50 x 150mm

• Power Source: Compatible Battery-Operated Drill

• Drill Included: No

• Pack Quantity: 1 Kit

Kit Contents:

• 1 x Flexible Drill Piece: 1m stainless steel stranded wire with HDPE sheathing

• 1 x Countersink Drill Bit: Carbon steel, 45 x 12 x 12mm

• 1 x Flexible Extension: 1m stainless steel stranded wire with HDPE sheathing

• 1 x Protective Cap: 12mm

• 1 x Allen Key: 2mm, for drill bit removal and replacement

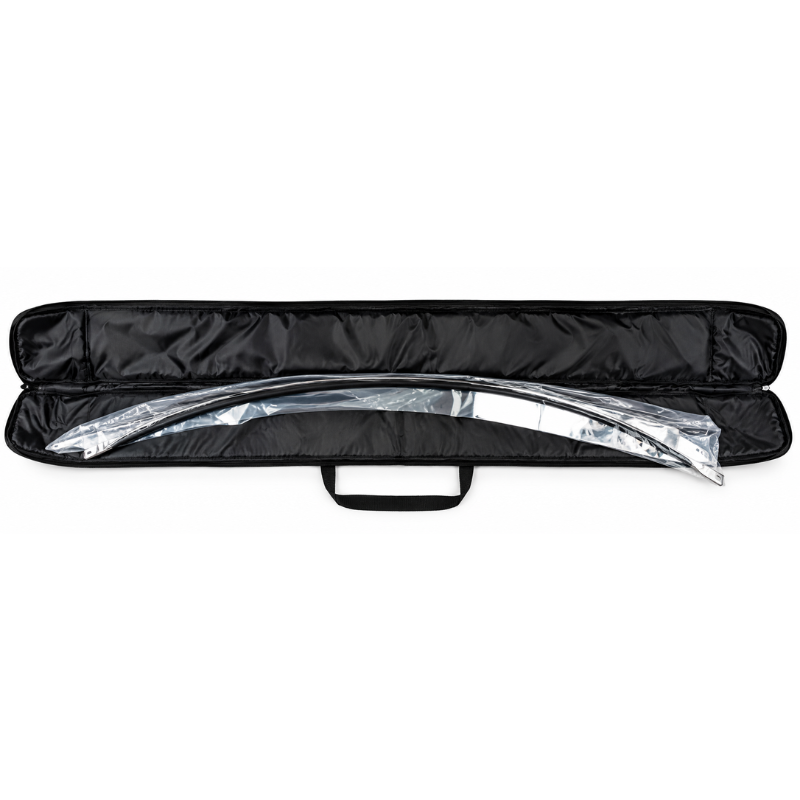

• 1 x Storage/Carrying Case: Polyester

Component Specifications:

• Flexible Drill Piece: Product Code 73271 – 1,000 x 13 x 13mm – 0.4kg

• Countersink Drill Bit: Product Code 73272 – 45 x 12 x 12mm – 0.05kg

• Flexible Extension: Product Code 73273 – 1,000 x 13 x 13mm – 0.4kg

• Protective Cap: Product Code 73595 – 12mm

• Allen Key: Product Code 73596 – 50 x 2 x 2mm – 0.01kg

• Carrying Case: 1,100 x 50 x 150mm – 0.3kg

Applications:

• FTTH and FTTP broadband installations

• Underground telecommunications duct clearance

• Removing mud and stones from blocked PVC ducts

• Clearing obstructions within 90° duct bends

• Preparing duct routes for fibre optic cable installation

• Microduct installation and maintenance

• Customer premises fibre connections

• Telecommunications network repairs

• Underground cable installation projects

• Restoring existing duct routes for reuse
