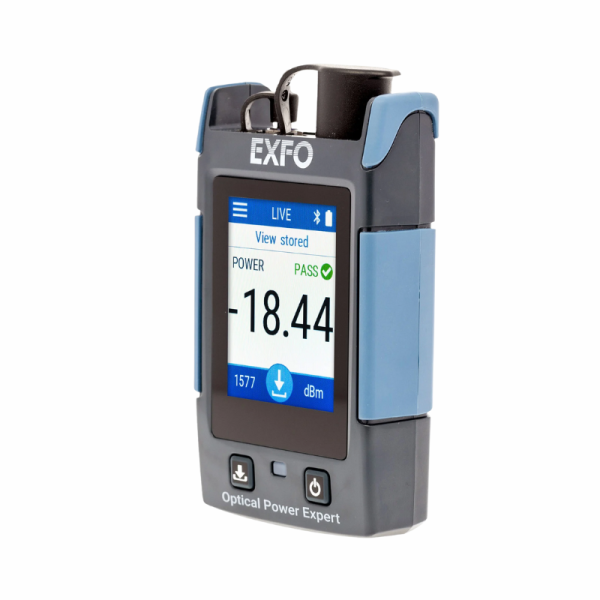

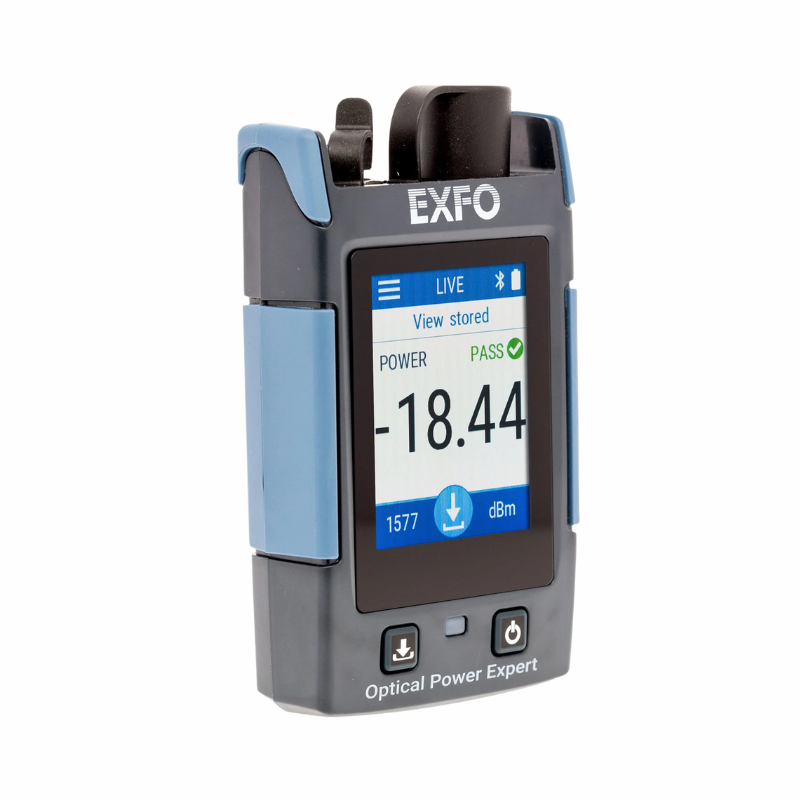

EXFO High-Power Pro Optical Power Expert

The EXFO PX1-PRO-H-FOAS-U25 High-Power Pro Optical Power Meter is engineered for precision testing in fibre optic networks, offering a broad measurement range of +26 dBm to -50 dBm. Ideal for high-speed installations and maintenance, it supports Bluetooth connectivity, auto-wavelength detection, and 45 calibrated wavelengths for seamless integration into any test setup.

Built for field technicians, the PX1 boots instantly and operates through an intuitive colour touchscreen interface. The Visual Fault Locator (VFL) adds powerful fault detection with selectable blink modes, while tone detection aids in efficient fibre tracing. With up to 100 result storage capacity and a battery life of 8 hours, it's the go-to tool for accurate, portable optical power testing.

Key Features:

• High Power Measurement Range: +26 dBm to -50 dBm
• Bluetooth Enabled: For wireless connectivity and data sync
• Auto-Wavelength Recognition and Switching: Increases test speed and accuracy
• Visual Fault Locator: Continuous, slow blink, fast blink modes for fault detection
• Tone Detection: Simplifies fibre identification

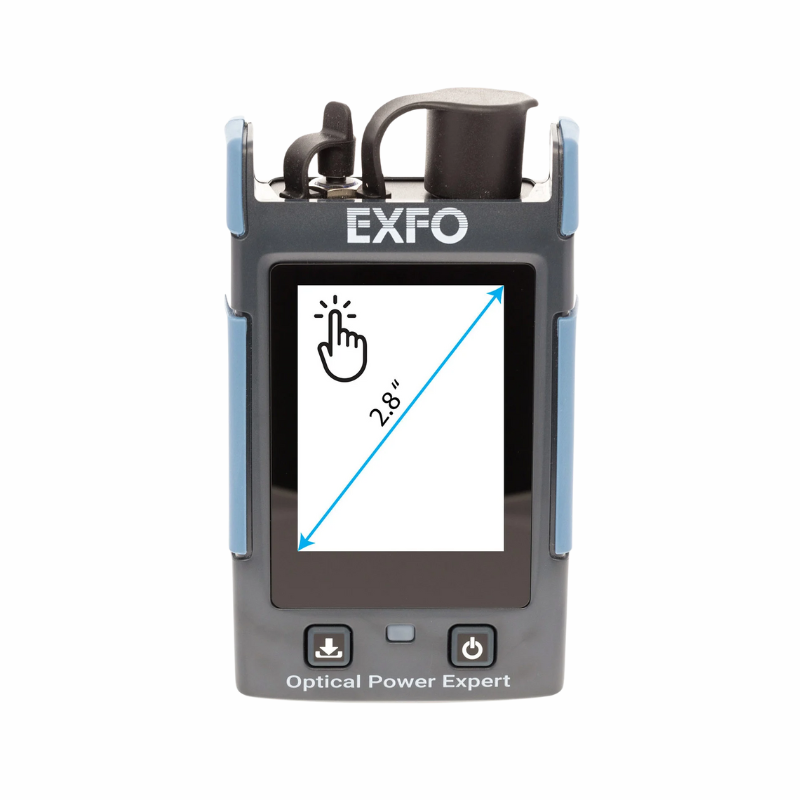

• Touchscreen Interface: Full-colour display with intuitive GUI
• Instant Boot-Up: Saves time in the field
• Internal Storage: Holds up to 100 test results
• IP54 Rated: Rugged and field-ready design
• 3-Year Warranty: Long-term reliability

Technical Specifications:

• Model: PX1-H-PRO-FOAS-U25

• Measurement Range: +26 dBm to -50 dBm

• Wavelengths: 45 calibrated wavelengths

• Auto Wavelength: Yes

• Tone Detection: Yes

• VFL Modes: Continuous, slow blink, fast blink

• Screen: Colour touchscreen

• Connectivity: Bluetooth, USB

• Battery: Rechargeable, 8 hours of continuous use

• Storage Capacity: 100 results

• Environmental Rating: IP54

• Warranty: 3 years

• Included Accessories:

  • USB cable

  • AC USB charger

  • Calibration certificate

  • Universal 2.5mm connector adapter

  • Soft pouch
