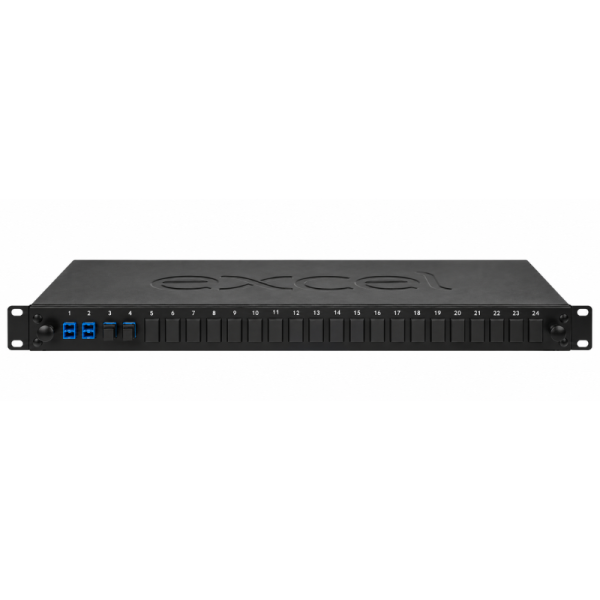

Excel Enbeam 24 Way Singlemode Fibre Optic Panel – 4 LC Duplex – 8 Fibre – Blue

Excel Enbeam 24 Way Singlemode Fibre Optic Panel – 4 LC Duplex – 8 Fibre – Blue

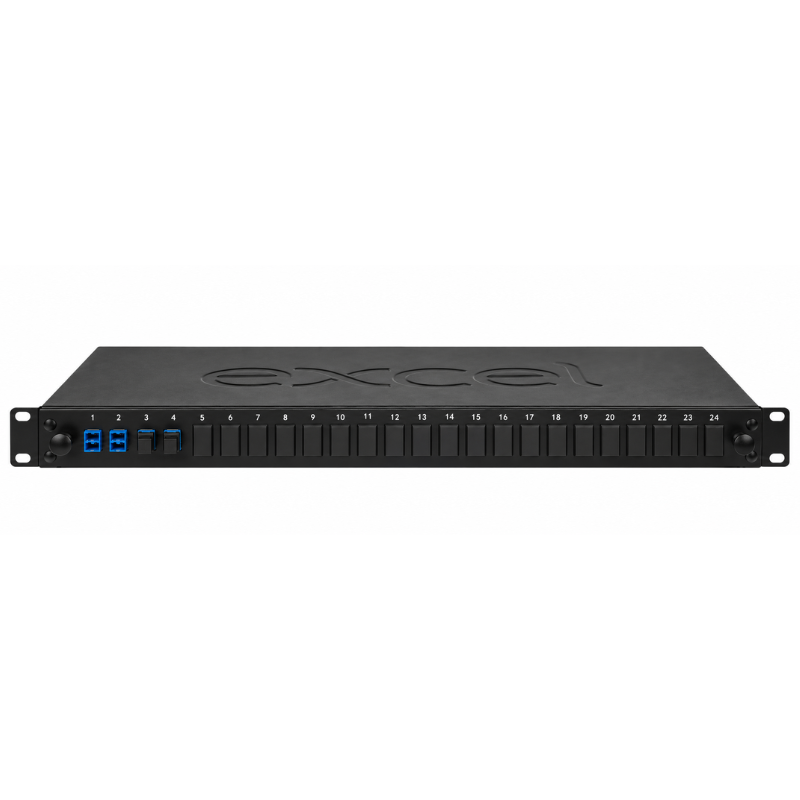

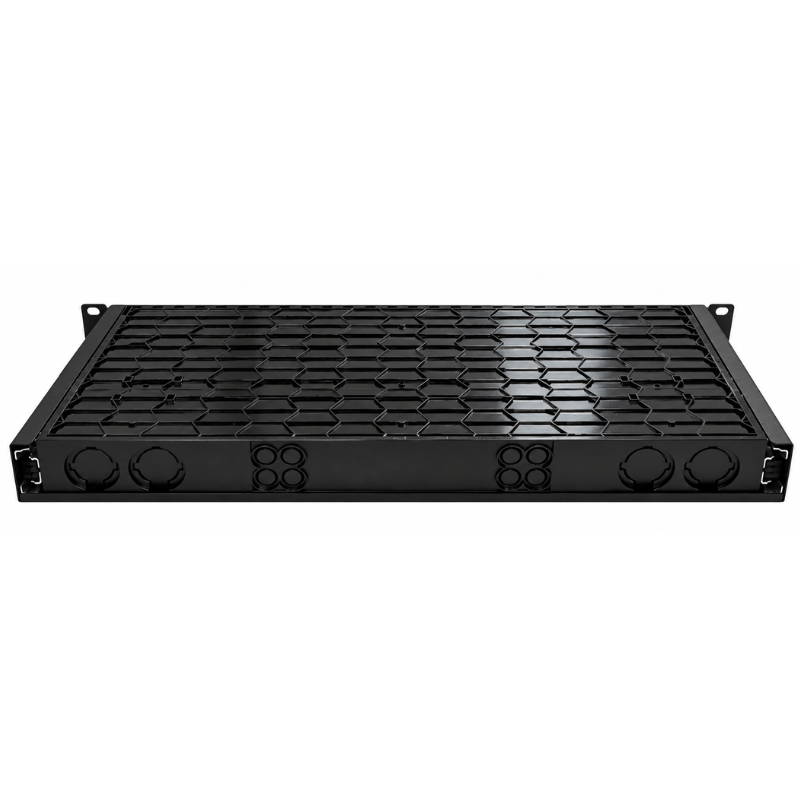

The Excel Enbeam 24 Way Singlemode Fibre Optic Panel provides a compact and flexible solution for fibre termination, patching and distribution within structured cabling and optical network installations. Designed for OS2 singlemode fibre, the panel features 4 LC Duplex adaptors, providing connectivity for 8 fibres while retaining capacity for future expansion.

With support for up to 24 module inserts and 48 fibre cores, the panel offers a scalable platform for growing fibre networks. The LC Duplex interface provides high-density connectivity while making efficient use of the available 1U rack space.

Designed for installation in standard 19" racks and data cabinets, the panel occupies just 1U and has a depth of 219.5mm. It is supplied without pigtails, allowing the required fibre termination components to be selected according to the installation.

This configuration is suitable for telecommunications, data centre, enterprise and structured cabling environments requiring reliable OS2 singlemode fibre management.

Key Features:

• Excel Enbeam fibre optic panel

• 24-way modular configuration

• Loaded with 4 x LC Duplex adaptors

• Provides connectivity for 8 fibres

• Designed for OS2 singlemode fibre

• Capacity for up to 48 fibre cores

• Supports up to 24 module inserts

• LC Duplex external and internal connectivity

• UPC/non-APC configuration

• Compact 1U rack height

• Standard 19" rack mounting

• Supplied without pigtails

• Suitable for scalable fibre installations

Technical Specifications:

• Brand: Excel Enbeam

• Product Type: Fibre Optic Panel

• Panel Capacity: 24 Way

• Suitable Fibre Cores: Up to 48

• Module Insert Capacity: 24

• Loaded Adaptors: 4

• Active Fibre Capacity: 8 Fibres

• Adaptor Type: LC Duplex

• External Connector Type: LC Duplex

• Internal Connector Type: LC Duplex

• Fibre Type: Singlemode

• Fibre Class: OS2

• APC Type: No

• Pigtails Included: No

• Rack Mounting: 482.6mm (19")

• Rack Height: 1U

• Panel Colour: Black

• RAL Colour: RAL 9005

• Height: 43.5mm

• Width: 483mm

• Depth: 219.5mm

Applications:

• OS2 singlemode fibre networks

• Data centre fibre connectivity

• Telecommunications infrastructure

• Structured cabling installations

• Communications rooms

• Fibre distribution and termination

• 19" network and server cabinets

• Enterprise fibre networks

• Fibre network expansion
