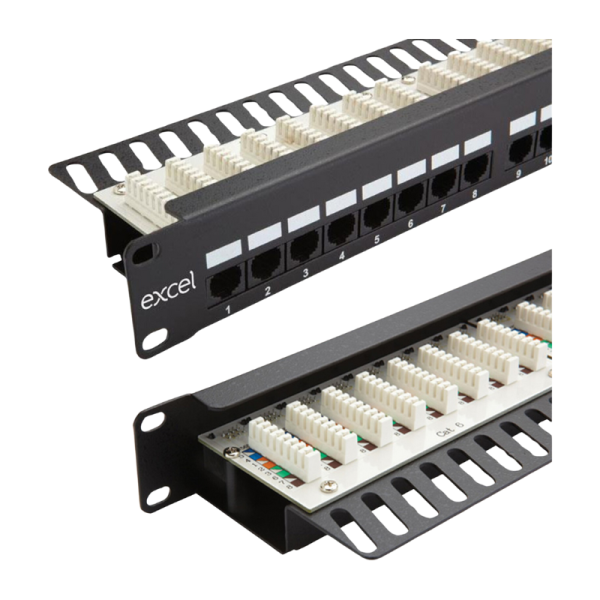

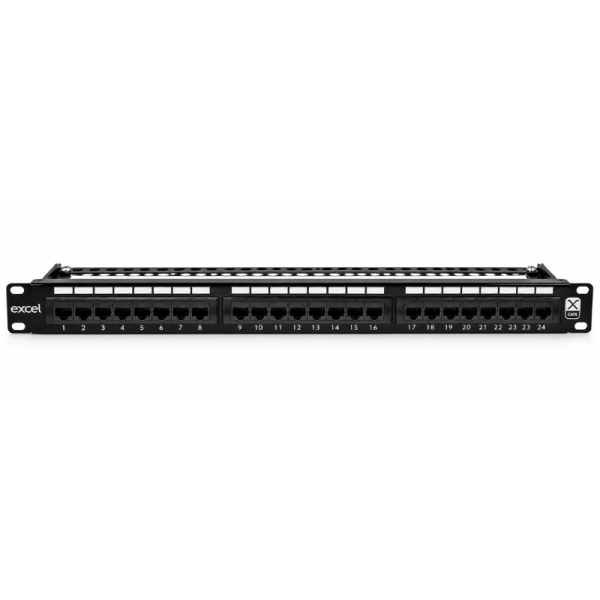

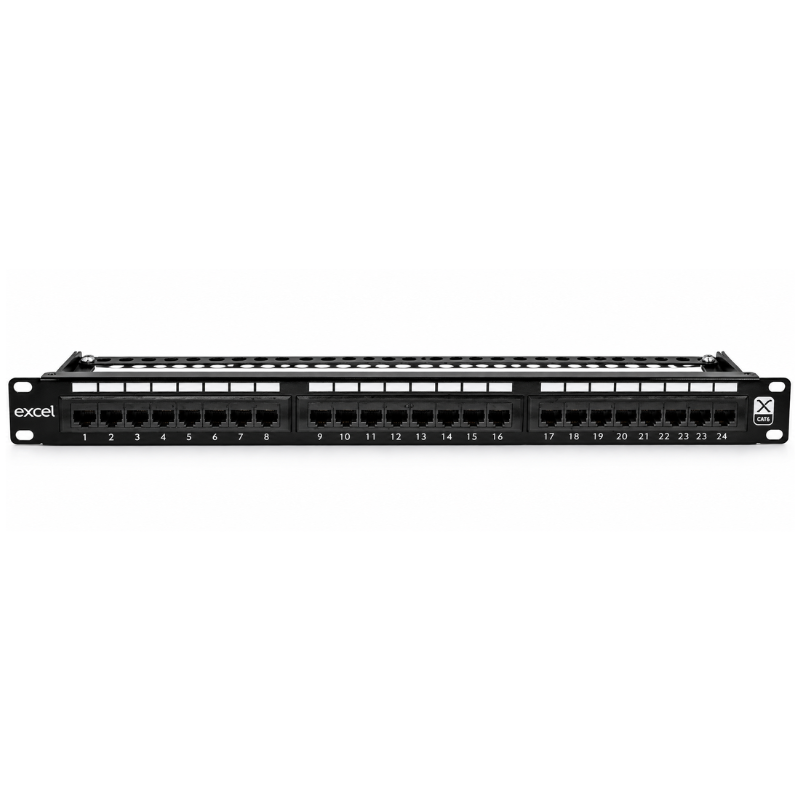

Excel Cat6 24 Port Unscreened Patch Panel – 1U – LSA Punch Down – Right Angled – Black
The Excel Cat6 24 Port Unscreened Patch Panel provides a reliable and organised termination solution for Category 6 structured cabling networks. Featuring 24 RJ45 ports within a compact 1U format, the panel is designed for installation in standard 19" data cabinets and racks across commercial, data and telecommunications environments.
The panel features right-angled LSA punch-down terminations, providing straightforward and secure termination of incoming network cables. Support for both T568A and T568B wiring configurations gives installers flexibility when integrating the panel into new or existing structured cabling systems.
Integrated rear cable management helps organise and support terminated cables, contributing to a neat installation and simplifying ongoing maintenance. The Cat6 panel is also backwards compatible with older cabling standards, making it suitable for network upgrades as well as new installations.
Supplied with cage nuts and mini cable ties, the panel includes key accessories required for rack installation and cable management. Its CIBSE TM65 embodied carbon figure of 28.388kg CO2e also provides useful environmental data for projects where embodied carbon reporting is required.
Key Features:
-

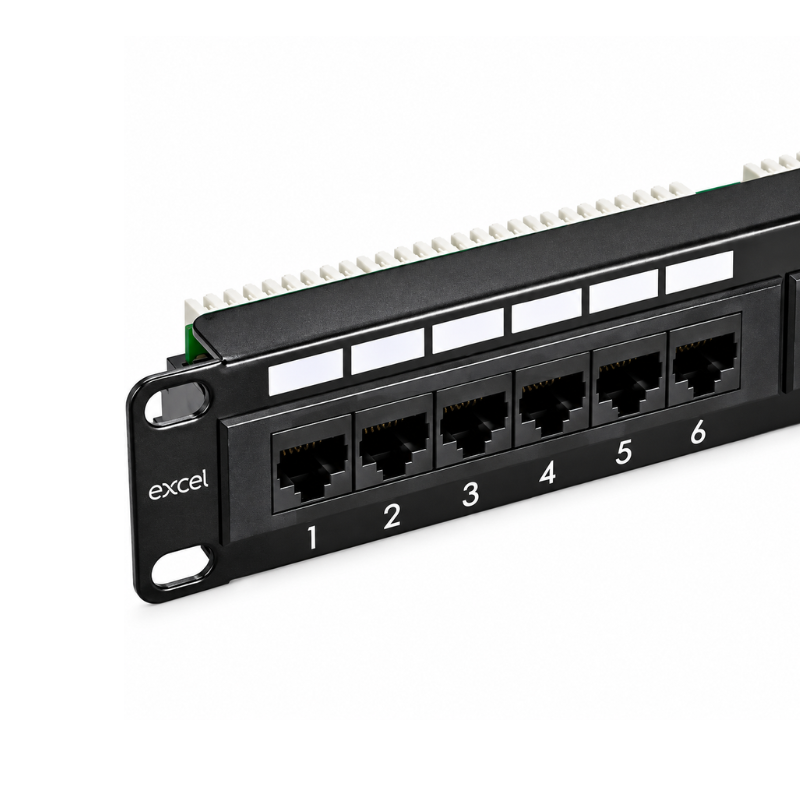

24 x RJ45 ports
-
Category 6 performance
-
Unscreened patch panel
-
Compact 1U rack-mount design
-
Standard 19" mounting format
-

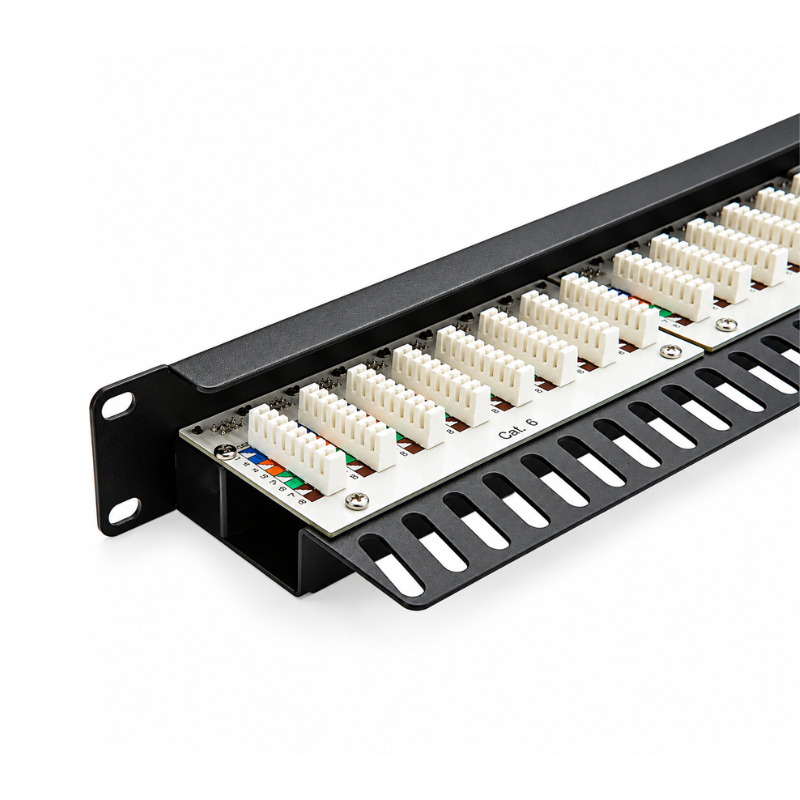

Right-angled LSA punch-down termination
-
Supports T568A and T568B wiring configurations
-
Backwards compatible with older cabling standards
-

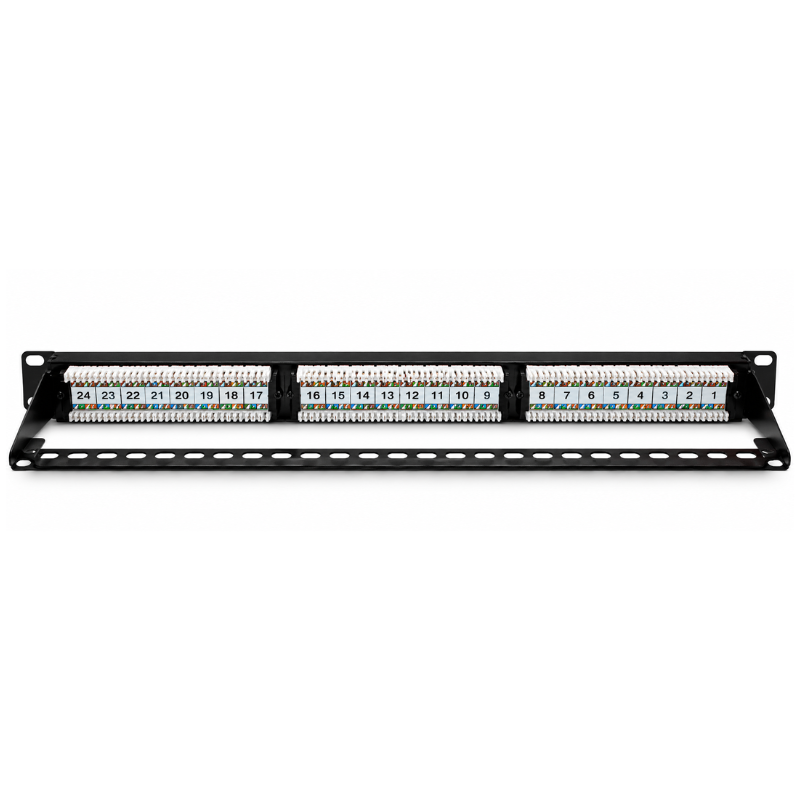

Rear cable management for organised installation
-
Black finish
-
Cage nuts included
-
Mini cable ties included
-
48-port version also available
-
CIBSE TM65 embodied carbon: 28.388kg CO2e
Technical Specifications:
-
Brand: Excel
-
Product Type: Network Patch Panel
-
Category: Cat6
-
Number of Ports: 24
-
Connector Type: RJ45 8(8)
-
Screening: Unscreened
-
Termination Type: LSA Punch Down
-
Termination Orientation: Right Angled
-
Wiring Configuration: T568A/B
-
Rack Units: 1U
-
Mounting: 482.6mm (19") Rack Mount
-
Colour: Black
-
Height: 44mm
-
Width: 480mm
-
Depth: 96mm
-
CIBSE TM65 Embodied Carbon: 28.388kg CO2e
-
Included Accessories: Cage Nuts and Mini Cable Ties
Applications:
-
Cat6 structured cabling networks
-
Data centre network infrastructure
-
Communications rooms
-
Office network installations
-
LAN infrastructure
-
Network cabinets and racks
-
Commercial structured cabling
-
Telecommunications installations
-
Network upgrades and expansions
