Duct Cable – 288F – G657A1 – Singlemode – Per Metre

Duct Cable – 288F – G657A1 – Singlemode – Per Metre

The Duct Cable – 288F – G657A1 – Singlemode – Per Metre is a high-capacity loose tube fibre optic cable engineered for duct installations across telecommunications, broadband and FTTX networks. Designed with 288 bend-resistant G.657A1 single-mode fibres, it delivers exceptional optical performance with ultra-low attenuation, making it ideal for backbone networks, large-scale fibre distribution and high-density infrastructure projects.

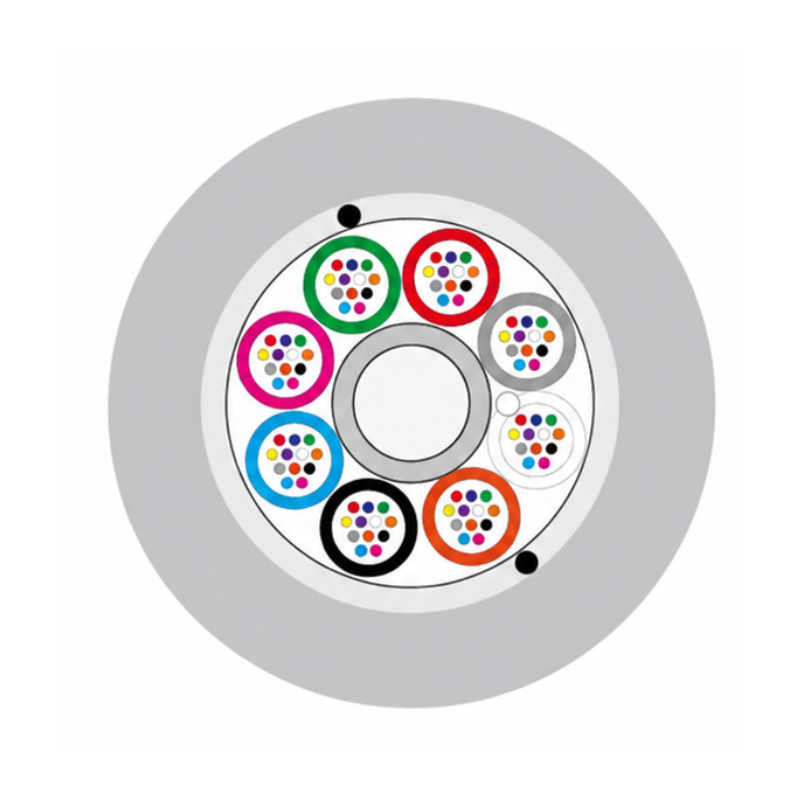

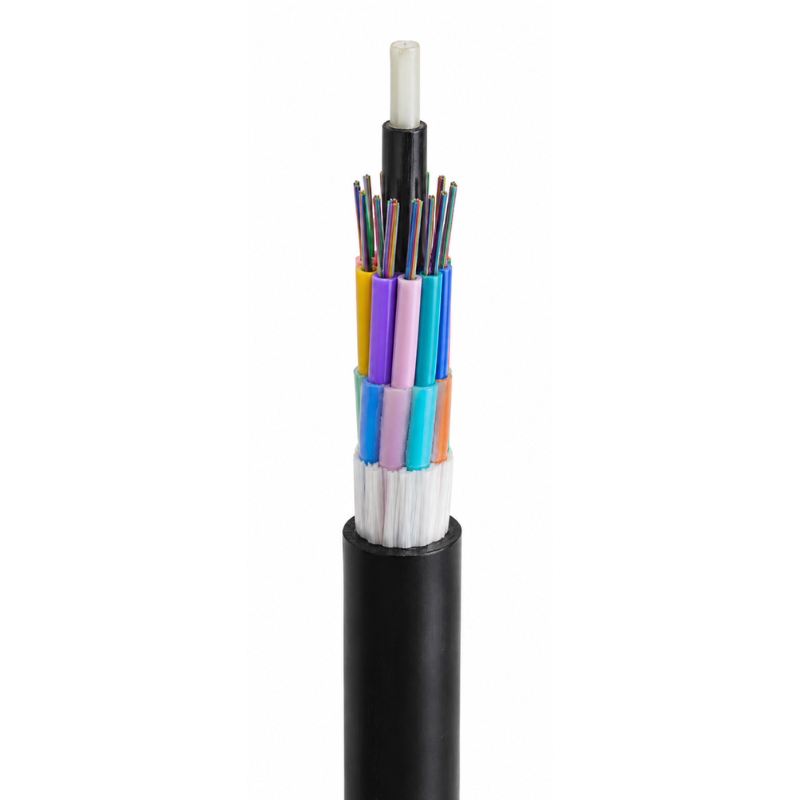

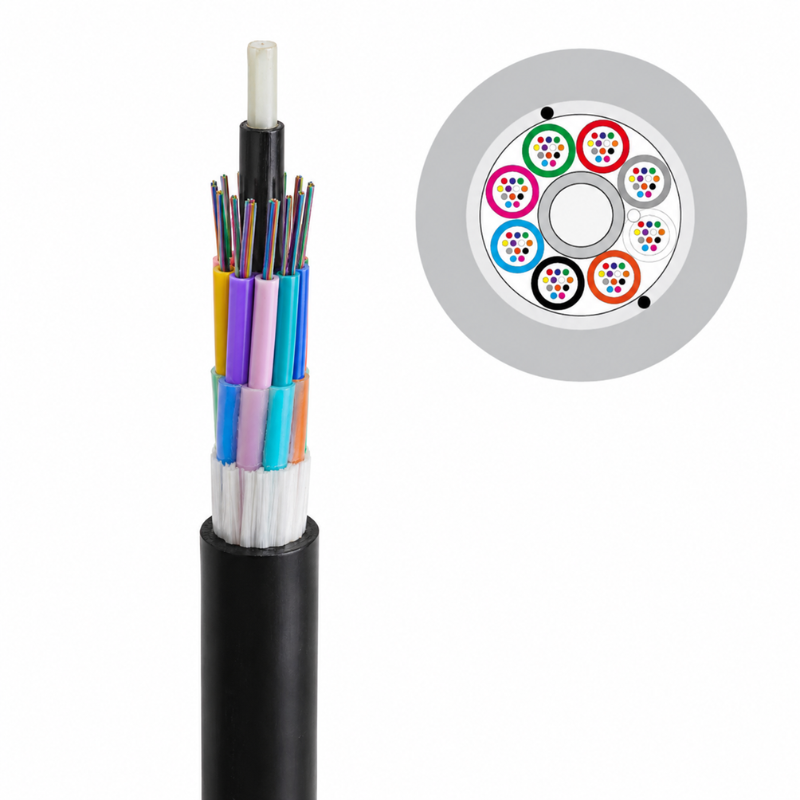

Its water-blocked loose tube construction incorporates gel-filled tubes, water-swellable yarn and a central FRP strength member to protect against moisture ingress and mechanical stress. The durable HDPE anti-rodent outer sheath provides outstanding environmental protection and long-term reliability, ensuring dependable performance in underground duct installations.

Optimised for conventional blowing and pulling installation methods, the cable combines high tensile strength, excellent crush resistance and colour-coded fibres for simplified identification during splicing and termination. It is an ideal solution for telecom operators, broadband providers and data infrastructure projects requiring maximum fibre capacity and dependable long-term performance.

Key Features:

• 288-fibre G.657A1 bend-resistant single-mode cable

• Loose tube construction for duct installations

• Ultra-low attenuation for high-speed optical networks

• Water-blocked design with gel-filled loose tubes

• Water-swellable yarn prevents moisture ingress

• HDPE anti-rodent outer sheath

• FRP central strength member

• Colour-coded fibres for simplified splicing and termination

• Suitable for blowing or pulling into ducts

• Sold per metre

Technical Specifications:

• Product Type: Loose Tube Duct Fibre Optic Cable

• Fibre Count: 288F

• Fibre Type: ITU-T G.657A1 Singlemode

• Cable Diameter: 15.0 ±0.5mm

• Outer Sheath: 1.1mm HDPE (Black)

• Sheath Protection: Anti-Rodent

• Central Strength Member: FRP Rod

• Cable Weight: 170 ±15kg/km

• Tensile Strength: 2000N (IEC 60794-1-21-E1)

• Crush Resistance: 2000N/100mm (IEC 60794-1-21-E3)

• Impact Resistance: 10Nm (IEC 60794-1-21-E4)

• Minimum Bend Radius: 20 × Cable Diameter

• Water Penetration: 1m Water Head, 3m Sample, 24 Hours

• Operating Temperature: -10°C to +85°C

• Storage Temperature: -10°C to +85°C

• Optical Attenuation:

  • ≤0.40dB/km @1270nm

  • ≤0.35dB/km @1310nm

  • ≤0.35dB/km @1383nm

  • ≤0.24dB/km @1490nm

  • ≤0.21dB/km @1550nm

  • ≤0.24dB/km @1625nm

• Sold Per: Metre

Applications:

• FTTH deployments

• FTTX access networks

• Telecommunications infrastructure

• Broadband network roll-outs

• Underground duct installations

• Metro fibre networks

• Campus fibre infrastructure

• Data centre interconnects

• High-capacity backbone and feeder networks

• Utility communications infrastructure
