Duct Bend 110mm – 22.5° – 700mm Radius – Grey uPVC

Duct Bend 110mm – 22.5° – 700mm Radius – Grey uPVC

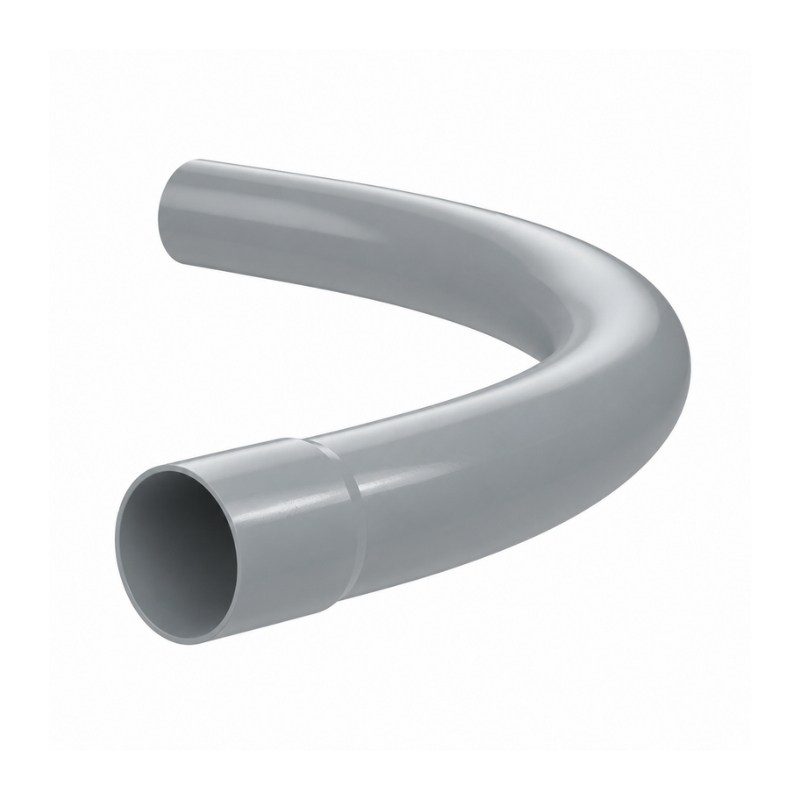

The Duct Bend 110mm – 22.5° – 700mm Radius – Grey is a rigid uPVC telecommunications duct fitting designed to provide a smooth change of direction within underground cable ducting systems. Featuring a 110mm nominal outside diameter, 22.5° bend angle and 700mm radius, it supports controlled cable routing during telecommunications network installations.

Manufactured from solid-wall unplasticised Polyvinyl Chloride (uPVC), the bend provides a durable solution for underground duct networks. Its swept design allows gradual directional changes, helping facilitate the installation of cables and sub-ducts.

The bend features an interference-fit (IF) socket at one end and a spigot at the opposite end, allowing compatible duct sections to be connected using a straightforward push-fit assembly. The connection is designed to achieve an IP4X ingress protection rating, preventing the entry of solid objects greater than 1mm when correctly assembled.

Manufactured to meet BS EN 61386 requirements for 450N-class duct systems, the bend is suitable for compatible telecommunications duct installations where mechanical strength and reliable cable protection are required.

Finished in grey and supplied in bags of 20, this Emtelle duct bend provides a practical solution for telecommunications engineers, utility contractors and civil engineering teams undertaking underground network installations and maintenance.

Key Features:

• Emtelle 110mm telecommunications duct bend

• 22.5° swept angle for gradual directional changes

• 700mm bend radius

• Manufactured from solid-wall uPVC

• Grey finish

• Interference-fit (IF) socket connection

• Spigot connection at opposite end

• Push-fit design for straightforward manual assembly

• IP4X-rated connection when correctly assembled

• Prevents ingress of solid objects greater than 1mm

• Designed to comply with BS EN 61386

• 450N compression strength class

• Suitable for compatible underground telecommunications duct systems

• Smooth directional change for cable and sub-duct installation

• Supplied in bags of 20

• Custom colours available upon request

Technical Specifications:

• Product Type: Telecommunications Duct Bend

• Product Range: PowerProtect+

• Material: uPVC (Unplasticised Polyvinyl Chloride)

• Construction: Solid Wall

• Colour: Grey

• Nominal Outside Diameter: 110mm

• Bend Angle: 22.5°

• Bend Radius: 700mm

• Bend Radius (Metres): 0.7m

• Socket Type: Interference Fit (IF)

• Opposite End Connection: Spigot

• Joint Type: Push Fit

• Ingress Protection Rating: IP4X

• Solid Object Ingress Protection: Greater Than 1mm

• Compression Classification: 450N

• Compression Reference Temperature: 23°C

• Referenced Standard: BS EN 61386

• Former Standard: BS EN 50086-2-4

• Compatible Duct Specification: Emtelle EF450-017

• Manufacturer Datasheet Reference: EF450-011, Issue 4

• Custom Colours Available: Yes

• Pack Quantity: 20 per Bag

Applications:

• Underground telecommunications duct installations

• Fibre optic cable infrastructure

• Copper telecommunications networks

• Underground cable routing

• Telecommunications duct direction changes

• Fibre broadband network deployment

• FTTH and FTTP infrastructure

• Utility duct installations

• Civil engineering and groundwork projects

• Telecommunications chamber connections

• Existing duct network extensions

• Underground network maintenance and upgrades
