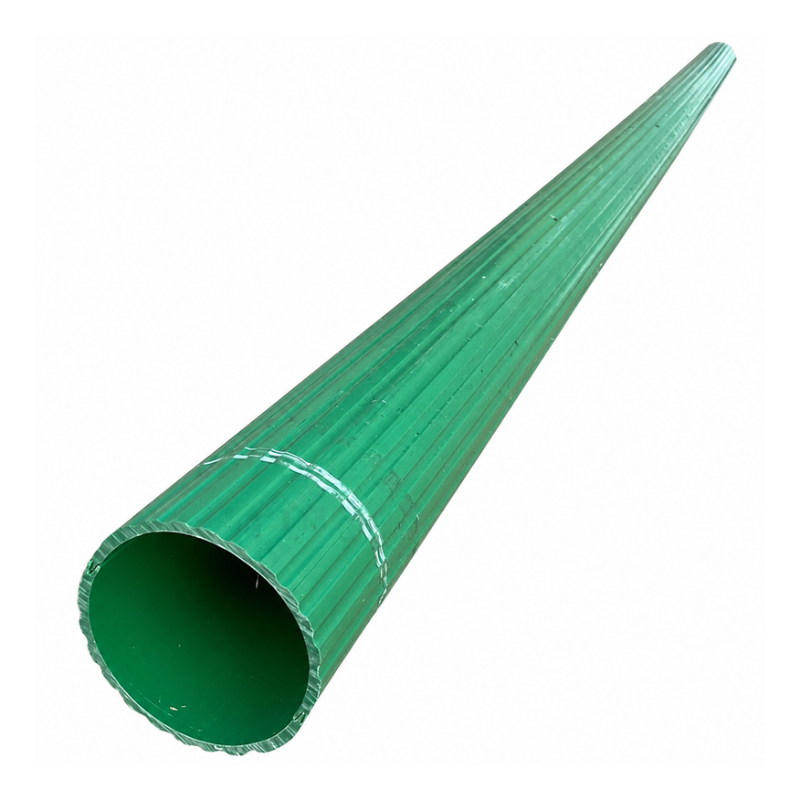

Duct 54D Split – 97mm OD – 3m – Green – Rigid PVC

Duct 54D Split – 97mm OD – 3m – Green – Rigid PVC

The Duct 54D Split – 97mm OD – 3m – Green is a heavy-duty rigid PVC duct designed for repairing existing Duct 54 telecommunications infrastructure. Featuring a thick-wall, tongue-and-groove construction, the duct is split longitudinally into two halves, allowing it to be installed around existing cables without requiring their removal.

Manufactured from rigid PVC, the split duct provides a practical solution for protecting exposed or damaged sections of underground cable ducting. Its two-piece design allows engineers to position the duct around installed cables, making it particularly useful for repairs where cable disconnection or removal is impractical.

The tongue-and-groove profile helps align the two duct halves during assembly, supporting a secure and consistent fit. With a nominal outside diameter of 97.2mm and an internal diameter of 87.6mm, the duct is designed for Duct 54 repair applications.

Supplied in 3-metre lengths and finished in green, the Duct 54D Split is suitable for telecommunications engineers, utility contractors and civil engineering teams carrying out underground duct repairs and network maintenance.

Key Features:

• Heavy-duty split duct for repairing Duct 54 infrastructure

• Manufactured from thick-wall rigid PVC

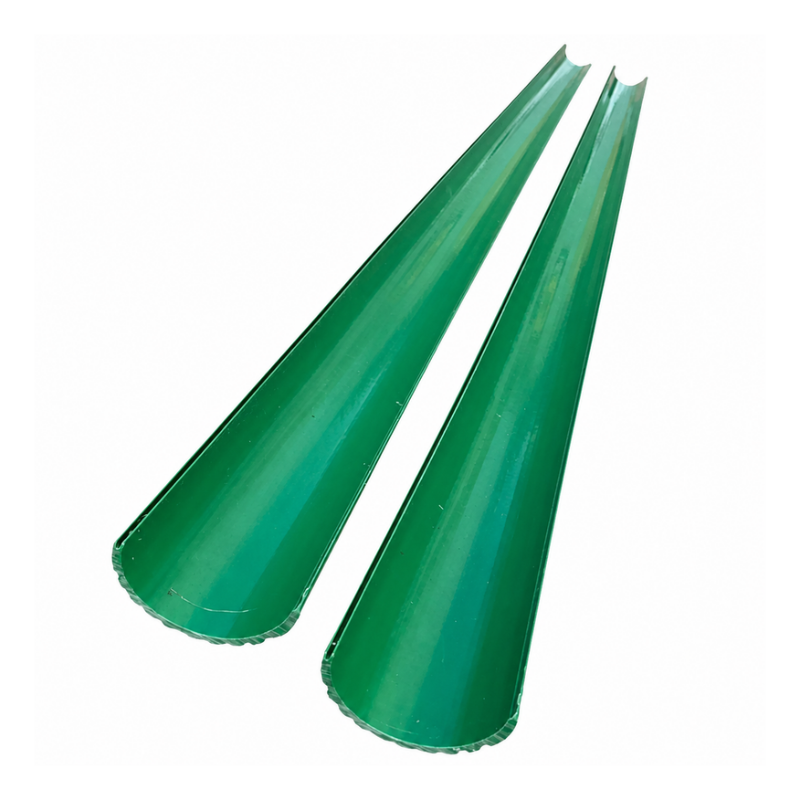

• Longitudinally split into two halves

• Tongue-and-groove profile for accurate alignment

• Designed for installation around existing cables

• Nominal outside diameter of 97.2mm

• Internal diameter of 87.6mm

• Supplied in 3-metre lengths

• Green finish

• Helps protect existing telecommunications cables

• Suitable for underground duct repair applications

• Reduces the need to remove installed cables during repairs

• Ideal for telecommunications and utility infrastructure maintenance

Technical Specifications:

• Product Type: Split Telecommunications Duct

• Duct Designation: 54D

• Compatible Duct Type: Duct 54

• Material: Rigid PVC

• Construction: Thick Wall

• Profile: Tongue and Groove

• Configuration: Longitudinally Split into Two Halves

• Nominal Outside Diameter: 97.2mm

• Internal Diameter: 87.6mm

• Nominal Wall Thickness: 4.8mm

• Length: 3,000mm

• Length (Metres): 3m

• Colour: Green

• Primary Application: Duct 54 Repair

• Installation Environment: Underground Telecommunications Infrastructure

• Pack Quantity: 1 x 3m Length

Applications:

• Repairing existing Duct 54 installations

• Underground telecommunications duct repairs

• Protection of existing copper cables

• Fibre optic cable infrastructure maintenance

• Replacement of damaged duct sections

• Underground cable route refurbishment

• Telecommunications network maintenance

• Utility infrastructure repairs

• Civil engineering and groundwork projects

• Repairing ducting without removing installed cables

• Existing cable protection and duct reinstatement
