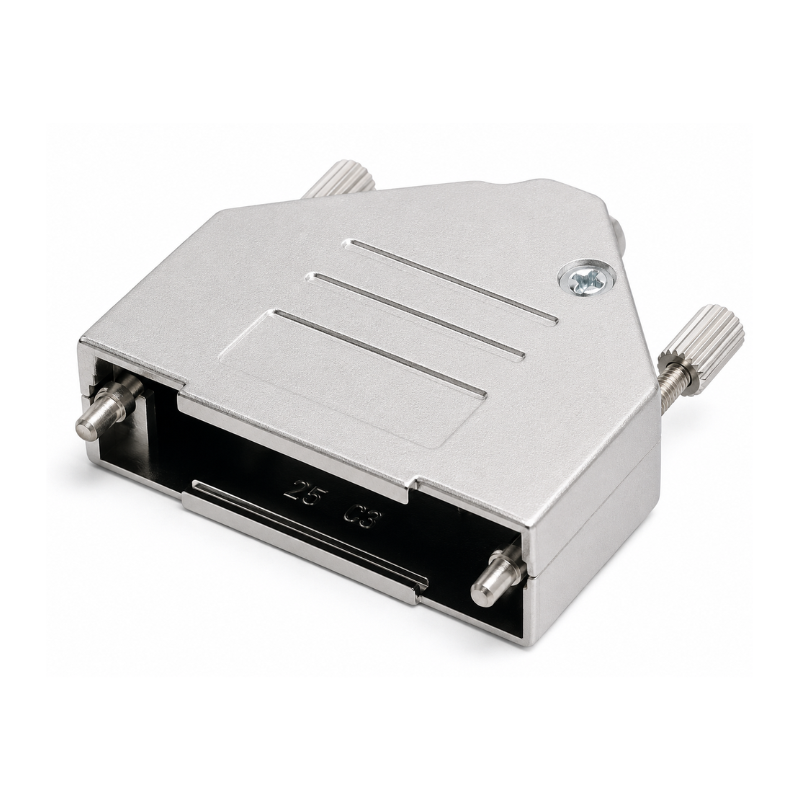

D-Type Hood – Die Cast – 25 Way
The D-Type Hood – Die Cast – 25 Way is a robust connector hood designed to provide reliable protection and strain relief for 25-way D-sub connectors used in industrial, telecommunications and data communications applications.
Manufactured from nickel-plated zinc die-cast, the hood offers excellent mechanical strength, durability and EMC shielding. It features a straight cable outlet with an integrated polycarbonate cable strain relief clamp, accommodating cable diameters from 3.0mm to 13.0mm to ensure secure cable retention and minimise stress on connector terminations.
Fitted with long jackscrews featuring moulded tops for optional colour coding, the hood provides quick and secure installation while supporting efficient cable identification. With an attenuation factor greater than 40dB between 30MHz and 1GHz, it delivers effective shielding for sensitive electronic and communications equipment.
Key Features:
-
25-way D-Type connector hood
-
Zinc die-cast construction
-
Nickel-plated finish
-
Straight cable outlet
-
Integrated polycarbonate cable strain relief
-
Suitable for cable diameters from 3.0mm to 13.0mm
-
Long jackscrews with moulded tops
-
Excellent EMC shielding
-
Durable industrial construction
-
Easy assembly with thread-forming screws
Technical Specifications:
-
Product Type: D-Type Connector Hood
-
Connector Size: 25 Way
-
Material: Zinc Die Cast
-
Finish: Nickel Plated
-
Cable Outlet: Straight
-
Cable Diameter Range: 3.0–13.0mm
-
Cable Strain Relief: Polycarbonate (PC UL94 V-0)
-
Locking Screws: Long Jackscrews with Moulded Top
-
Assembly Screws: Taptite Thread Forming
-
Operating Temperature: -40°C to +120°C
-
Shielding Attenuation: >40dB (30MHz–1GHz)
Applications:
-
D-sub connector assemblies
-
Telecommunications equipment
-
Data communications
-
Industrial control systems
-
Automation equipment
-
Test and measurement equipment
-
Serial communications
-
Network infrastructure
-
Electronic instrumentation
-
Control panels
