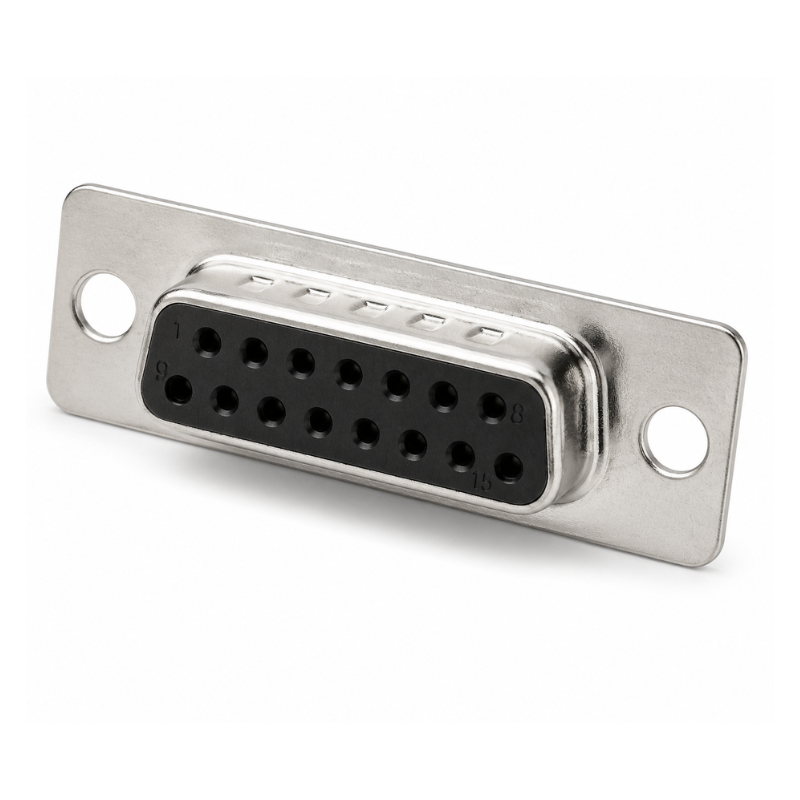

D-Type Connector – Female – Solder Bucket – Black – 15 Way

D-Type Connector – Female – Solder Bucket – Black – 15 Way

The D-Type Connector – Female – Solder Bucket – Black – 15 Way is a high-quality D-sub connector designed for reliable signal transmission in telecommunications, industrial control, instrumentation and data communications applications.

Featuring 15 female contacts with solder bucket terminations, the connector provides secure and dependable cable termination for custom cable assemblies and equipment wiring. The glass-filled polyester insulator offers excellent mechanical strength and electrical insulation, while the tin-plated stamped steel shell provides robust protection and long-lasting durability.

The copper alloy contacts are finished with selective gold over nickel plating, ensuring excellent electrical conductivity, corrosion resistance and reliable mating performance. Suitable for professional cable assembly, this connector is ideal for serial communications, industrial electronics, instrumentation and legacy communications equipment.

Key Features:

• 15-way female D-Type connector

• Solder bucket termination

• Glass-filled polyester insulator

• Tin-plated steel shell

• Copper alloy contacts

• Selective gold over nickel contact plating

• Durable black insulator

• Reliable electrical performance

• Suitable for custom cable assemblies

• Professional industrial construction

Technical Specifications:

• Product Type: D-Type Connector

• Connector Gender: Female

• Number of Contacts: 15 Way

• Termination Type: Solder Bucket

• Insulator Material: Glass-Filled Polyester

• Insulator Colour: Black

• Flammability Rating: UL94 V-0

• Shell Material: Stamped Steel

• Shell Finish: Tin Plated

• Contact Material: Copper Alloy

• Contact Finish: Selective Gold over Nickel

Contact Options

• Stamped & Formed Pins (DB): Class 3 – 100 Mating Cycles Minimum

• Machined Pins (DM): Class 1 – 500 Mating Cycles Minimum

Applications:

• Telecommunications equipment

• Industrial control systems

• Data communications

• Serial communications

• Test and measurement equipment

• Instrumentation

• Control panels

• Electronic equipment

• Custom cable assemblies

• Legacy communications systems
