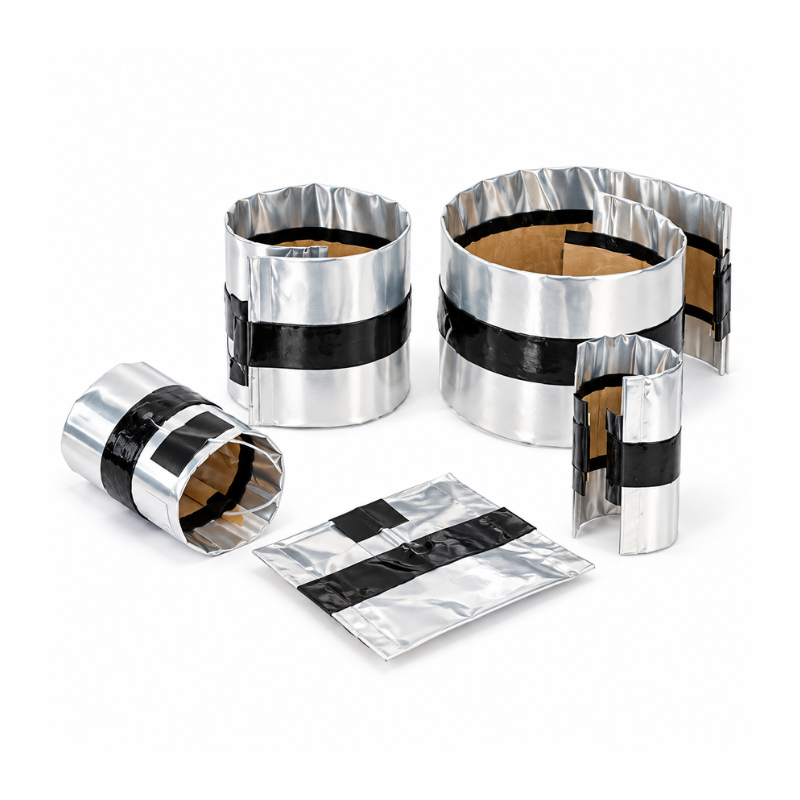

CommScope NCC TDUX Inflatable Duct Seal – 75–110mm – Pack of 10
The CommScope NCC TDUX Inflatable Duct Seal is a flexible and reliable wraparound sealing system designed to permanently seal telecommunications cable ducts and help prevent water ingress into manholes, exchange vaults and underground network infrastructure.
Designed for 75–110mm ducts, the inflatable seal can be installed around existing cables, making it suitable for both new network deployments and maintenance applications. The system is compatible with plastic, concrete and steel ducting, including wall-feed-through installations, and can be used with polyethylene or lead-jacketed cables.
Once inflated, the TDUX seal provides a water- and airtight barrier up to 50kPa, helping protect fibre and telecommunications infrastructure from environmental ingress. Its flexible wraparound construction also makes installation straightforward within congested enclosures and locations with restricted access.
The seals are resistant to chemicals and bacteria, environmentally friendly and non-toxic. They can also be removed when future access to the duct or cable is required. Supplied as a pack of 10 for larger network installations and ongoing maintenance requirements.
Key Features:
-
CommScope NCC TDUX inflatable duct sealing system
-
Suitable for 75–110mm ducts
-
Supplied as a pack of 10
-
Flexible wraparound construction
-
Helps prevent water ingress through telecommunications ducts
-
Water- and airtight up to 50kPa
-
Suitable for plastic, concrete and steel ducting
-
Compatible with wall-feed-through systems
-
Suitable for polyethylene and lead-jacketed cables
-
Fast and straightforward installation
-
Suitable for congested enclosures
-
Resistant to chemicals and bacteria
-
Environmentally friendly and non-toxic
-
Designed for straightforward removal when required
Technical Specifications:
-
Brand: CommScope
-
Range: NCC TDUX
-
Product Type: Inflatable Duct Seal
-
Seal Type: Inflatable Wraparound
-
Duct Size: 75–110mm
-
Pressure Rating: Water- and Airtight up to 50kPa
-
Compatible Duct Materials: Plastic, Concrete and Steel
-
Compatible Cable Types: Polyethylene and Lead-Jacketed Cables
-
Chemical Resistance: Yes
-
Bacteria Resistance: Yes
-
Non-Toxic: Yes
-
Pack Quantity: 10
Applications:
-
Telecommunications cable ducts
-
Fibre optic duct networks
-
Underground telecom infrastructure
-
Manholes
-
Exchange vaults
-
Wall-feed-through systems
-
Cable duct water ingress protection
-
Fibre network rollouts
-
Network maintenance and upgrades
