CommScope NCC TDUX Inflatable Duct Seal – 45–60mm – Pack of 10

CommScope NCC TDUX Inflatable Duct Seal – 45–60mm – Pack of 10

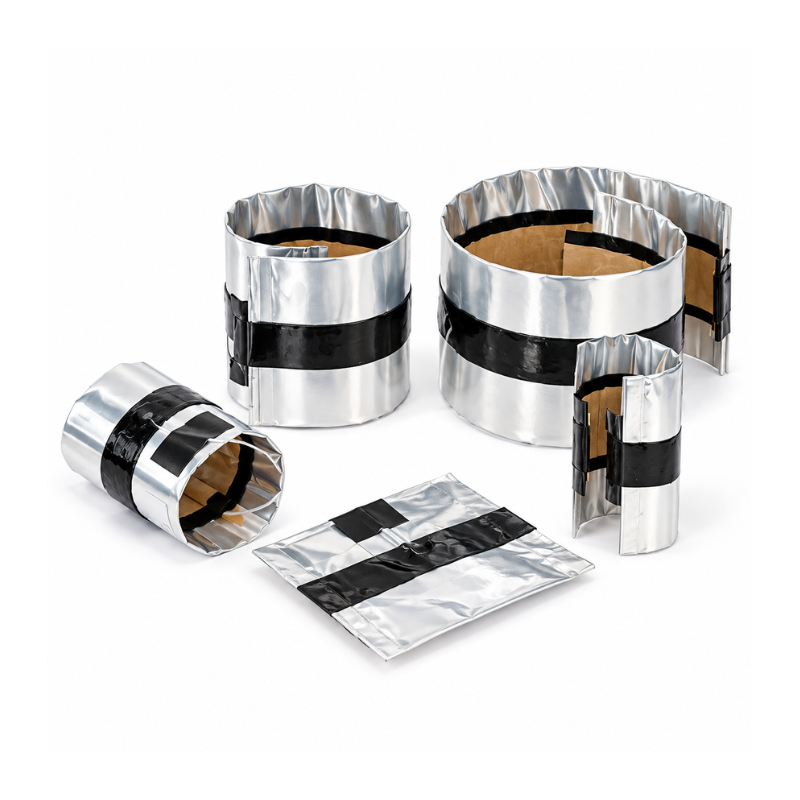

The CommScope NCC TDUX Inflatable Duct Seal is a flexible and reliable wraparound sealing system designed to permanently seal telecommunications cable ducts and help prevent water leakage into exchange vaults, manholes and other underground network infrastructure.

Designed for ducts measuring 45–60mm, the inflatable system can be used with plastic, concrete or steel ducting and wall-feed-through systems, as well as polyethylene and lead-jacketed cables. Its wraparound construction allows for quick installation, including within congested enclosures where access around existing cables may be restricted.

Once inflated, the TDUX system provides a water- and airtight seal up to 50kPa. The seal is also resistant to chemicals and bacteria, providing dependable protection for telecommunications infrastructure in demanding underground environments.

Supplied as a pack of 10, the seals are environmentally friendly, non-toxic and designed for straightforward installation and removal when network access or maintenance is required.

Key Features:

• Inflatable wraparound telecommunications duct sealing system

• Suitable for 45–60mm ducts

• Helps prevent water ingress through cable ducts

• Water- and airtight up to 50kPa

• Suitable for plastic, concrete and steel ducting

• Compatible with wall-feed-through systems

• Suitable for polyethylene and lead-jacketed cables

• Fast and straightforward installation

• Suitable for congested enclosures

• Resistant to chemicals and bacteria

• Environmentally friendly and non-toxic

• Designed for easy and fast removal

• Suitable for underground telecom infrastructure

• Supplied as a pack of 10

Technical Specifications:

• Brand: CommScope

• Range: NCC TDUX

• Product Type: Inflatable Duct Seal

• Seal Type: Inflatable Wraparound

• Duct Size: 45–60mm

• Pressure Rating: Water- and Airtight up to 50kPa

• Compatible Duct Materials: Plastic, Concrete and Steel

• Compatible Cable Types: Polyethylene and Lead-Jacketed Cables

• Chemical Resistance: Yes

• Bacteria Resistance: Yes

• Non-Toxic: Yes

• Pack Quantity: 10

Applications:

• Telecommunications cable ducts

• Fibre optic duct networks

• Underground telecom infrastructure

• Exchange vaults

• Manholes

• Wall-feed-through systems

• Cable duct water ingress protection

• New network installations

• Network maintenance and upgrades
