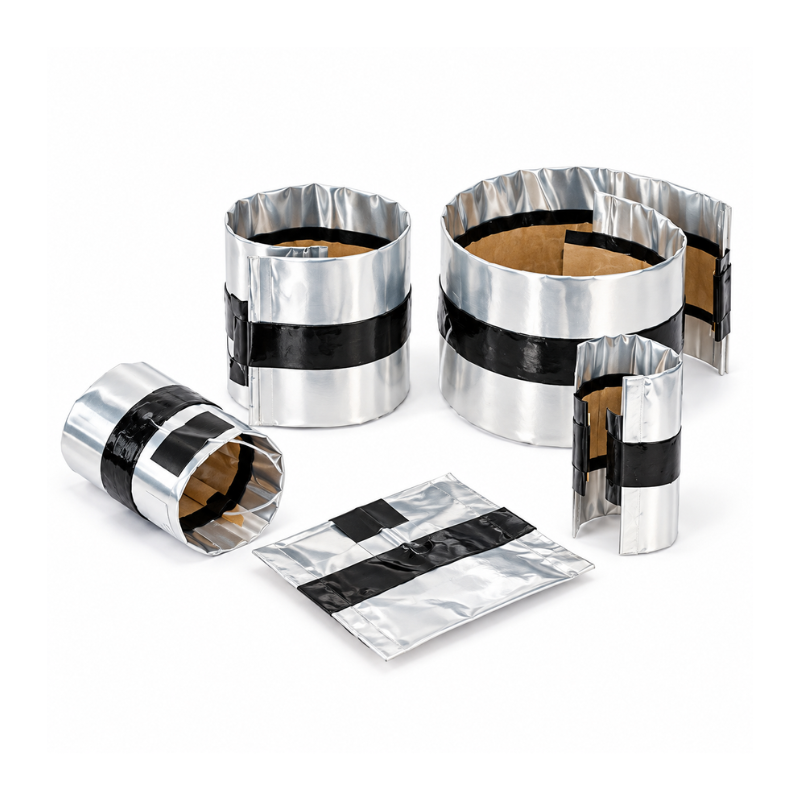

CommScope NCC TDUX-90 Duct Seal 1A – 60–110mm – Pack of 10

CommScope TDUX-90 Duct Seal 1A – 60–110mm – Pack of 10

The CommScope TDUX-90 Duct Seal 1A is a flexible inflatable duct sealing solution designed to help prevent water ingress into telecommunications ducts, manholes, exchange vaults and underground network infrastructure.

Designed for use with 60–110mm ducts, the TDUX-90 uses an inflatable wraparound design that allows installation around existing cables. This makes it suitable for both new network deployments and maintenance applications where effective sealing around installed telecommunications or fibre cables is required.

The TDUX system provides a water- and airtight seal up to 50kPa and can be used with plastic, concrete or steel ducting and wall-feed-through systems. Its flexible construction enables installation within congested underground environments where access around existing cables may be restricted.

The duct seals are resistant to chemicals and bacteria, non-toxic and designed for straightforward removal when future access to the cable or duct is required. Supplied as a pack of 10 for network rollouts, installation projects and ongoing maintenance.

Key Features:

• CommScope TDUX-90 Duct Seal 1A

• Designed for 60–110mm ducts

• Supplied as a pack of 10

• Inflatable wraparound duct sealing system

• Helps protect underground networks against water ingress

• Water- and airtight up to 50kPa

• Suitable for installation around existing cables

• Suitable for plastic, concrete and steel ducting

• Compatible with wall-feed-through systems

• Fast and straightforward installation

• Suitable for congested underground environments

• Resistant to chemicals and bacteria

• Non-toxic construction

• Designed for straightforward removal when required

Technical Specifications:

• Brand: CommScope

• Range: TDUX

• Model: TDUX-90

• Product Type: Inflatable Duct Seal

• Seal Type: 1A

• Construction: Inflatable Wraparound

• Suitable Duct Size: 60–110mm

• Pressure Rating: Water- and Airtight up to 50kPa

• Compatible Duct Materials: Plastic, Concrete and Steel

• Chemical Resistance: Yes

• Bacteria Resistance: Yes

• Non-Toxic: Yes

• Pack Quantity: 10

Applications:

• Telecommunications cable ducts

• Fibre optic duct networks

• Underground telecom infrastructure

• Manholes and chambers

• Exchange vaults

• Wall-feed-through systems

• Cable duct water ingress protection

• Fibre network rollouts

• Network maintenance and upgrades
