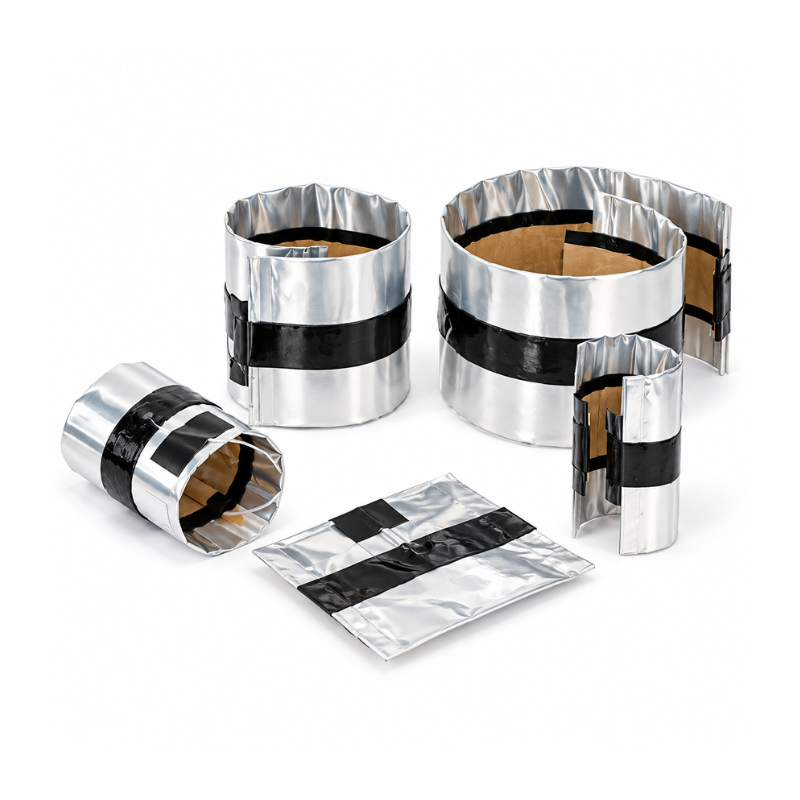

CommScope NCC TDUX-125 Duct Seal 1D – 110–125mm – Pack of 10
The CommScope NCC TDUX-125 Duct Seal 1D is a flexible inflatable wraparound sealing system designed to help protect telecommunications cable ducts against water ingress. Suitable for 110–125mm ducts, it provides a reliable sealing solution for underground fibre and telecommunications infrastructure.
The wraparound construction allows the TDUX-125 to be installed around existing cables, making it suitable for both new network deployments and maintenance applications. The system can be used with plastic, concrete or steel ducting, including wall-feed-through installations.
Once inflated, the TDUX system provides a water- and airtight seal up to 50kPa, helping protect cables and network infrastructure within manholes, chambers and exchange vaults. Its flexible design also supports installation within congested locations where access around existing cables may be restricted.
The seal is resistant to chemicals and bacteria, non-toxic and designed for straightforward removal when future access to the duct or cable is required. Supplied as a pack of 10 for fibre network rollouts, infrastructure projects and ongoing maintenance.
Key Features:
-
CommScope NCC TDUX-125 inflatable duct seal
-
Duct Seal 1D configuration
-
Suitable for 110–125mm ducts
-
Supplied as a pack of 10
-
Flexible inflatable wraparound construction
-
Helps prevent water ingress through cable ducts
-
Water- and airtight up to 50kPa
-
Suitable for installation around existing cables
-
Suitable for plastic, concrete and steel ducting
-
Compatible with wall-feed-through systems
-
Fast and straightforward installation
-
Suitable for congested underground environments
-
Resistant to chemicals and bacteria
-
Non-toxic construction
-
Designed for straightforward removal when required
Technical Specifications:
-
Brand: CommScope
-
Range: NCC TDUX
-
Model: TDUX-125
-
Product Type: Inflatable Duct Seal
-
Seal Type: 1D
-
Construction: Inflatable Wraparound
-
Suitable Duct Size: 110–125mm
-
Pressure Rating: Water- and Airtight up to 50kPa
-
Compatible Duct Materials: Plastic, Concrete and Steel
-
Chemical Resistance: Yes
-
Bacteria Resistance: Yes
-
Non-Toxic: Yes
-
Pack Quantity: 10
Applications:
-
Telecommunications cable ducts
-
Fibre optic duct networks
-
Underground telecom infrastructure
-
Manholes and chambers
-
Exchange vaults
-
Wall-feed-through systems
-
Cable duct water ingress protection
-
Fibre network installations
-
Network maintenance and upgrades
