Combination Preparation Tool – 1/2" CELLFLEX SCF – Rapid Fit 070/072 – TRIM-SET-S12-D01

Combination Preparation Tool 1/2" CELLFLEX SCF – RAPID FIT 070/072 – TRIM-SET-S12-D01

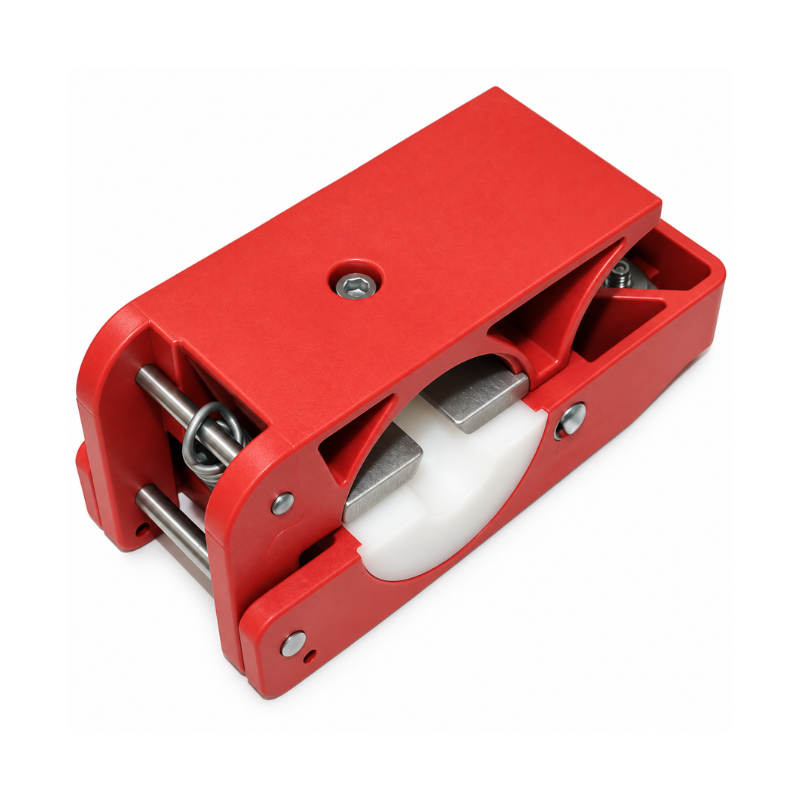

The TRIM-SET-S12-D01 Combination Preparation Tool is a specialist cable trimming tool designed to simplify and improve cable preparation prior to RF connector attachment. Its combined design incorporates the necessary preparation functions into a single tool, eliminating the need for additional tools during the preparation process.

Designed for use with 1/2" CELLFLEX® SCF12-50 foam dielectric cables, the tool is compatible with the OMNI FIT Premium D01 connector family and RAPID FIT 070/072 connector families. This provides installers with a dedicated preparation solution for achieving consistent cable preparation before connector installation.

The tool forms part of the Universal Trimming Tools Series, which offers additional flexibility through interchangeable inserts. By changing the insert, the tool can be converted for different connector families and cable sizes, including 1/4", 3/8", 1/2" and 7/8".

Different inserts are available separately as optional items, allowing the core tool to be adapted to suit a wider range of cable preparation requirements.

Key Features:

• Combination cable preparation and trimming tool

• Designed for 1/2" CELLFLEX SCF cable

• Suitable for CELLFLEX SCF12-50 foam dielectric cable

• Compatible with OMNI FIT Premium D01 connectors

• Compatible with RAPID FIT 070 and 072 connector families

• Combines necessary cable preparation functions into one tool

• No additional tools required for cable preparation

• Helps simplify preparation prior to connector attachment

• Part of the Universal Trimming Tools Series

• Convertible using interchangeable inserts

• Can accommodate different connector families with suitable inserts

• Supports 1/4", 3/8", 1/2" and 7/8" cable sizes with appropriate inserts

• Additional inserts available separately

Technical Specifications:

• Product Type: Combination Cable Preparation Tool

• Reference: TRIM-SET-S12-D01

• Cable Size: 1/2"

• Compatible Cable: CELLFLEX SCF12-50

• Cable Type: Foam Dielectric Cable

• Connector Family: OMNI FIT Premium D01

• RAPID FIT Compatibility: 070 / 072

• Tool Series: Universal Trimming Tools Series

• Interchangeable Inserts: Yes

• Convertible Cable Sizes: 1/4", 3/8", 1/2" and 7/8" with appropriate inserts

• Additional Inserts: Available separately

Applications:

• RF coaxial cable preparation

• CELLFLEX SCF12-50 cable preparation

• 1/2" coaxial cable trimming

• OMNI FIT Premium connector preparation

• RAPID FIT connector preparation

• Telecommunications installations

• Mobile network infrastructure

• RF cable and connector installation
