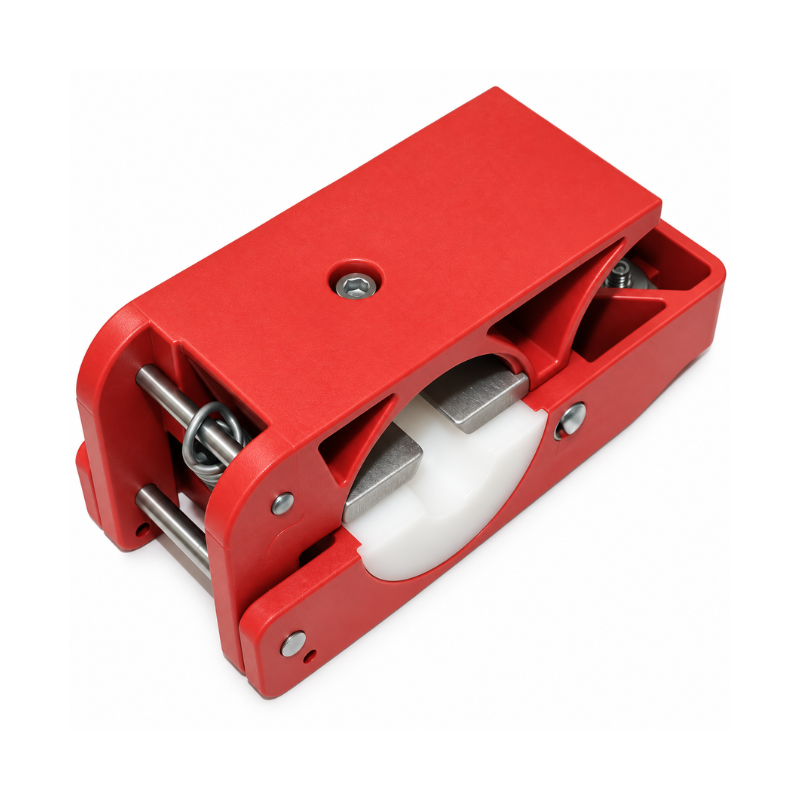

CELLFLEX 1/2" Cable Preparation Tool – OMNI FIT Premium Connectors
The CELLFLEX 1/2" Cable Preparation Tool is designed to simplify the preparation of CELLFLEX foam dielectric coaxial cable prior to OMNI FIT Premium connector installation. Its combined trimming design brings the required cable preparation functions together in a single tool, helping installers achieve consistent cable preparation without requiring multiple separate tools.
Designed for 1/2" CELLFLEX SCF12-50 cable, the preparation tool can be used with compatible OMNI FIT Premium connectors. It provides a dedicated method of preparing the cable correctly before connector attachment, supporting efficient and repeatable RF installation work.
The tool forms part of a universal trimming system that can be adapted for different cable sizes and connector families using interchangeable inserts. Compatible inserts are available separately, allowing the tool platform to be configured for 1/4", 3/8", 1/2" and 7/8" cable sizes where the appropriate insert is fitted.
Key Features:
-
Professional CELLFLEX cable preparation tool
-
Designed for 1/2" CELLFLEX cable
-
Suitable for CELLFLEX SCF12-50 foam dielectric cable
-
Designed for preparation prior to OMNI FIT Premium connector attachment
-
Combines multiple cable preparation functions in one tool
-
Helps reduce the need for separate preparation tools
-
Supports consistent and repeatable cable preparation
-
Part of a universal trimming tool system
-
Convertible using interchangeable inserts
-
Supports different connector families with appropriate inserts
-
Tool platform supports 1/4", 3/8", 1/2" and 7/8" cable sizes with suitable inserts
-
Additional inserts available separately
Technical Specifications:
-
Product Type: Coaxial Cable Preparation Tool
-
Cable Range: CELLFLEX
-
Cable Size: 1/2"
-
Compatible Cable: CELLFLEX SCF12-50
-
Cable Construction: Foam Dielectric
-
Connector Compatibility: OMNI FIT Premium
-
Interchangeable Inserts: Yes
-
Additional Supported Cable Sizes: 1/4", 3/8" and 7/8" with appropriate inserts
-
Application: Cable Preparation Prior to Connector Installation
Applications:
-
CELLFLEX coaxial cable preparation
-
OMNI FIT Premium connector installation
-
RF coaxial cable trimming
-
Mobile network infrastructure
-
Antenna and feeder installations
-
Telecommunications installations
-
RF cable installation and maintenance
