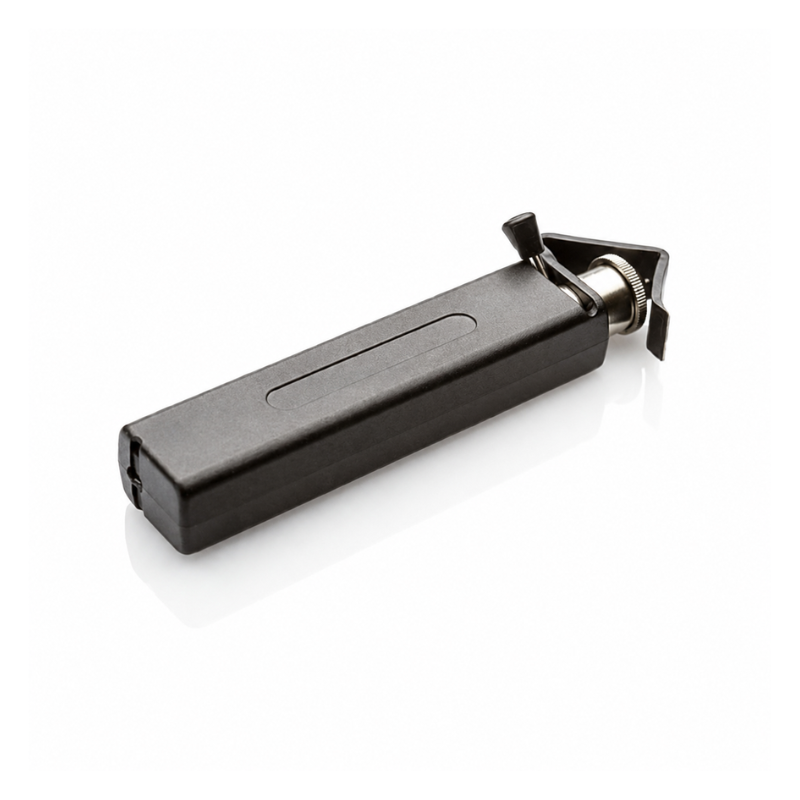

Cable Ringing Tool – 4.0–25mm
The Cable Ringing Tool – 4.0–25mm is a versatile cable stripping tool designed for the safe and accurate removal of PVC and rubber cable insulation from cables ranging from 4mm to 25mm in diameter. Suitable for both end and mid-span stripping, it provides clean, controlled cuts without damaging the conductor.
The spring-loaded cable retention arm securely holds the cable in place while an adjustable cutting blade allows the insulation cutting depth to be precisely set up to 3mm. The blade rotates through 90°, enabling both circumferential ringing cuts and longitudinal slitting for quick sheath removal, making it an essential tool for electricians, telecom engineers and cable installers.
Key Features:
-
Suitable for cables from 4mm to 25mm diameter
-
End and mid-span cable stripping
-
Removes PVC and rubber insulation
-
Spring-loaded cable retention arm
-
Adjustable blade depth up to 3mm
-
90° rotating blade for longitudinal cuts
-
Fast and accurate insulation removal
-
Reduces risk of conductor damage
-
Lightweight and easy to use
-
Suitable for professional and trade use
Technical Specifications:
-
Product Type: Cable Ringing Tool
-
Cable Diameter Range: 4.0–25mm
-
Suitable Cable Types: PVC and Rubber Insulated Cables
-
Stripping Type:
-
End Stripping
-
Mid-Span Stripping
-
Blade Rotation: 90°
-
Adjustable Cutting Depth: Up to 3mm
-
Cable Retention: Spring-Loaded Holding Arm
Applications:
-
Cable sheath removal
-
Electrical installations
-
Telecommunications
-
Fibre optic cable preparation
-
Control cable installation
-
Industrial maintenance
-
Utility cable work
-
Cable repairs
-
Panel wiring
-
General cable preparation
