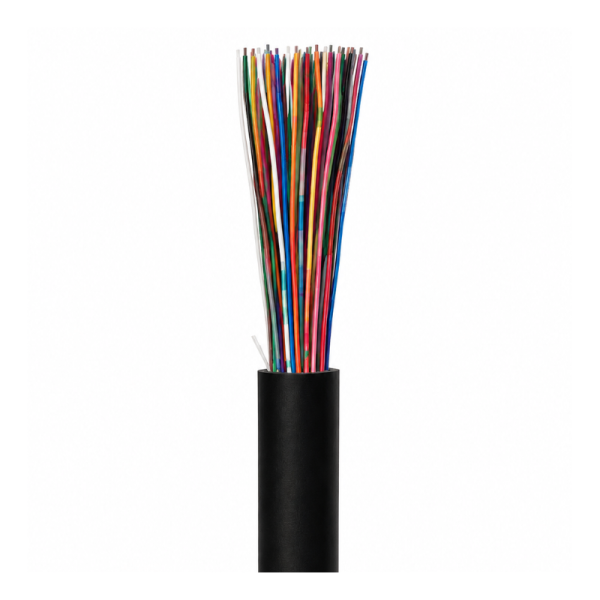

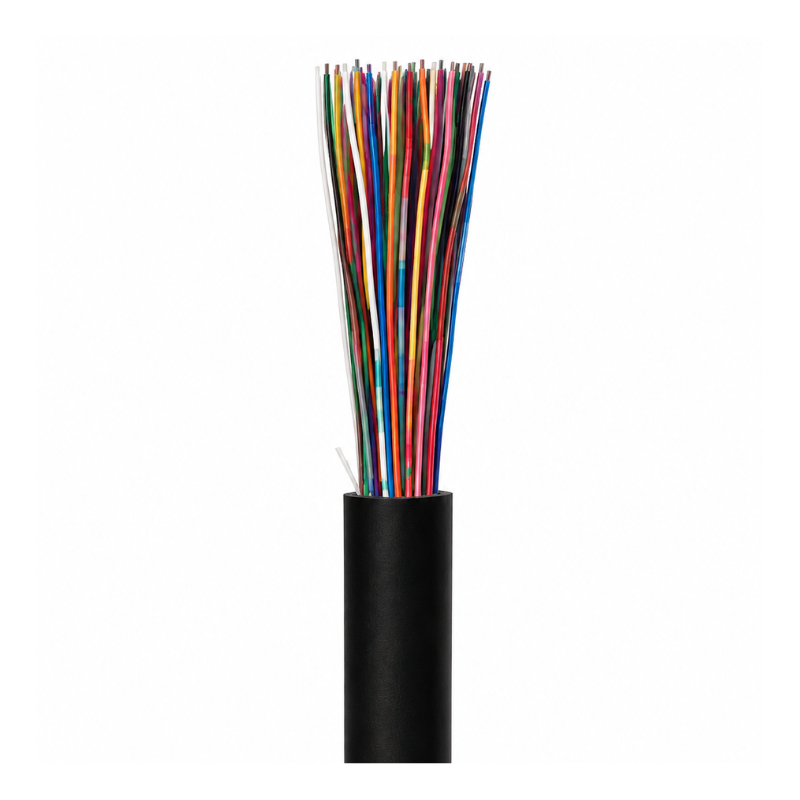

Cable CW1308 – 10 Pair – Black - Per Metre

Cable CW1308 – 10 Pair – Black – Per Metre

The Cable CW1308 – 10 Pair – Black – Per Metre is a high-quality multi-pair telecommunications cable designed for internal and external voice, data and signalling applications.

Manufactured with 10 pairs of solid 0.5mm copper conductors, an integrated earth conductor and a durable LSZH (Low Smoke Zero Halogen) outer sheath, this cable provides reliable performance while reducing smoke and hazardous gas emissions in the event of fire. An aluminium-polyethylene moisture barrier offers additional protection against moisture ingress, making the cable suitable for a wide range of indoor and outdoor installations.

Designed for fixed telecommunications wiring, the cable features a polyester tape separator, excellent electrical characteristics and a minimum bending radius of 8 times the overall cable diameter for easy installation. Supplied per metre, it allows installers to purchase the precise length required for each project.

Key Features:

• 10 pair telecommunications cable

• Sold per metre

• Black LSZH outer sheath

• Solid 0.5mm copper conductors

• Integrated earth conductor

• Aluminium-polyethylene moisture barrier

• Suitable for internal and external installations

• Flame retardant construction

• Low Smoke Zero Halogen sheath

• Excellent electrical performance

Technical Specifications:

• Product Type: CW1308 Telecommunications Cable

• Number of Pairs: 10 Pair + Earth

• Supply Length: Per Metre

• Conductor: Plain Solid Copper

• Conductor Diameter: 0.5mm

• Conductor Size: 0.2mm²

• Earth Conductor: 1.38mm

• Insulation: PVC (Polyvinyl Chloride)

• Tape: Polyester

• Moisture Barrier: Aluminium-Polyethylene Tape

• Outer Sheath: LSZH (Low Smoke Zero Halogen)

• Sheath Colour: Black

• Overall Diameter: 7.0mm

• Approximate Weight: 98kg/km

• Maximum Conductor Resistance (20°C): 97.8Ω/km

• Minimum Insulation Resistance (20°C): 50MΩ/km

• Maximum Capacitance Unbalance: 500pF/km

• Minimum Bending Radius: 8 × Overall Diameter

• Operating Temperature: Up to +70°C

• Minimum Installation Temperature (Bending): 0°C

Standards

• BS CW1308

• IEC 60332-1 Flame Retardant

• IEC 60754-1 Acid Gas Emission

• IEC 60754-2 Corrosivity

Applications:

• Telephone systems

• Internal building communications

• External telecommunications installations

• Voice and signalling circuits

• Security systems

• Building management systems

• Control systems

• Low-voltage communications

• Commercial buildings

• Industrial telecommunications
