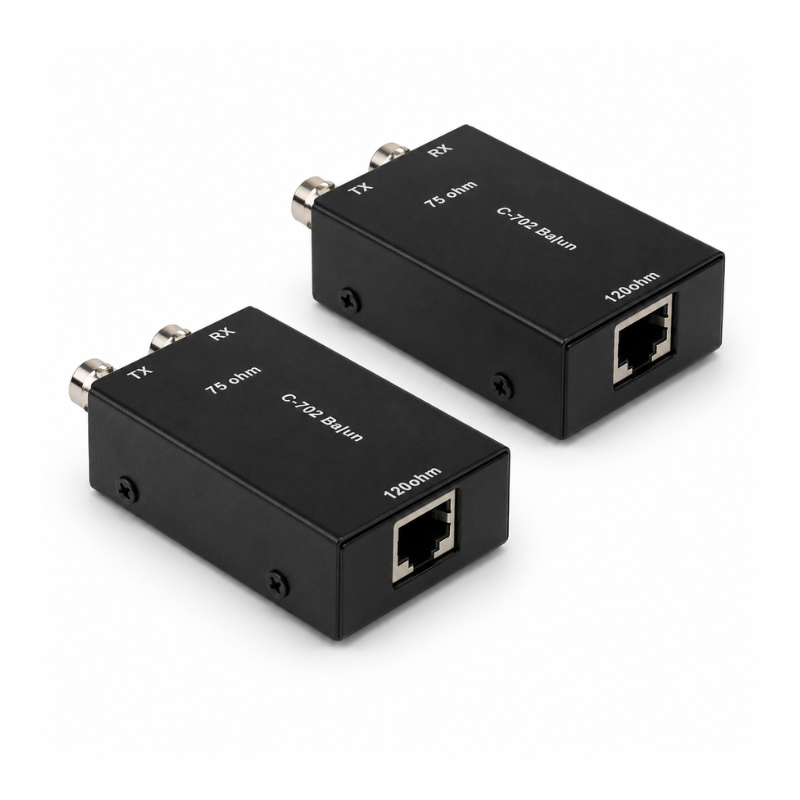

BNC Balun – RJ45 to 2x BNC (F)
The BNC Balun – RJ45 to 2x BNC (F) is a compact impedance converter designed to enable seamless transmission between 75Ω coaxial cable and 120Ω balanced twisted pair cable in G.703 telecommunications networks.
Supporting ITU-T G.703 2.048Mbit/s applications, the balun converts signals between dual female BNC connectors and an RJ45 interface, providing a simple and reliable solution for connecting legacy coaxial infrastructure to structured cabling systems. With excellent signal integrity, low insertion loss and high crosstalk isolation, it is ideal for E1 transmission circuits, telecommunications equipment and network upgrades.
The compact housing is suitable for rack rooms, communications cabinets and telecom installations, offering quick installation without requiring external power. Designed for professional telecommunications environments, the balun provides dependable impedance matching and signal conversion for voice and data applications.
Key Features:
-
Converts 75Ω coaxial to 120Ω balanced twisted pair
-
Dual female BNC to RJ45 interface
-
Supports ITU-T G.703 E1 applications
-
2.048Mbit/s transmission
-
Low insertion loss
-
High crosstalk isolation
-
Compact, passive design
-
No external power required
-
Easy installation
-
Professional telecommunications solution
Technical Specifications:
-
Product Type: G.703 Balun
-
Model: HXSP-G703
-
Connector A: 2 × Female BNC (75Ω)
-
Connector B: RJ45 (120Ω)
-
Impedance Conversion: 75Ω Unbalanced to 120Ω Balanced
-
Supported Bit Rate: 2.048Mbit/s (ITU-T G.703)
-
Return Loss: Complies with G.703 Requirements
-
Insertion Loss: <0.9dB (51kHz – 51.55MHz)
-
Crosstalk: >60dB (51kHz – 51.55MHz)
-
Signal Level: 2.37V Nominal Peak
-
Isolation Voltage: 250V DC for 1 Minute
-
Pulse Test: 3kV (ITU-T K.17)
-
Dimensions: 78 × 42 × 20.5mm
-
RJ45 Interface: Standard Twisted Pair Wiring
-
BNC Interface: Female BNC (IEC169-8)
Applications:
-
G.703 E1 networks
-
Telecommunications infrastructure
-
Digital transmission systems
-
PBX systems
-
Voice and data communications
-
Network upgrades
-
Coaxial to twisted pair conversion
-
Communications cabinets
-
Telecom exchanges
-
Structured cabling systems
