Blown Cable – 72F – G657A1 – Singlemode – 250µm – 12FO Tube – Per Metre

Blown Cable – 72F – G657A1 – Singlemode – 250µm – 12FO Tube – Per Metre

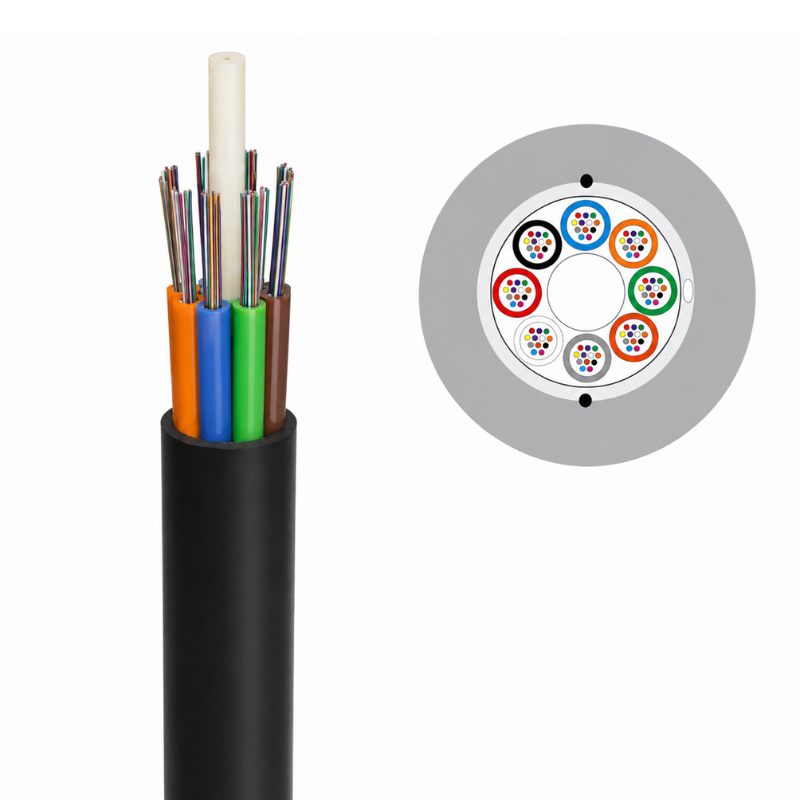

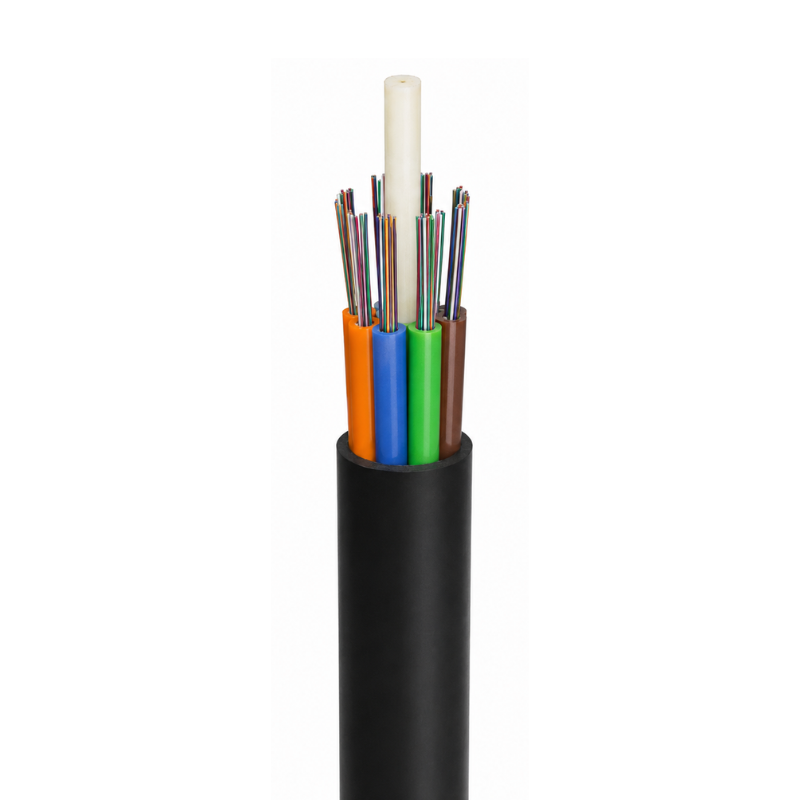

The Blown Cable – 72F – G657A1 – Singlemode – 250µm – 12FO Tube – Per Metre is a high-capacity fibre optic micro cable engineered for blown fibre installations in FTTH, FTTX and high-density telecommunications networks. Manufactured with 72 bend-resistant G.657A1 single-mode fibres, this compact cable delivers exceptional optical performance while maximising fibre density within microduct infrastructure.

Designed with 250µm bend-loss optimised fibres, the cable provides excellent flexibility and reliable signal transmission through microduct systems while maintaining outstanding mechanical performance. Its lightweight construction, water-blocked design and durable HDPE anti-rodent outer sheath provide long-term environmental protection and enable rapid, efficient installation.

Manufactured to meet stringent international standards including IEC, ITU-T, Telcordia GR-20, RoHS and REACH, this blown fibre cable is an ideal solution for telecom operators, broadband providers and infrastructure contractors requiring high-capacity, reliable fibre deployment.

Key Features:

• 72-fibre G.657A1 bend-resistant single-mode cable

• 250µm bend-loss optimised fibres

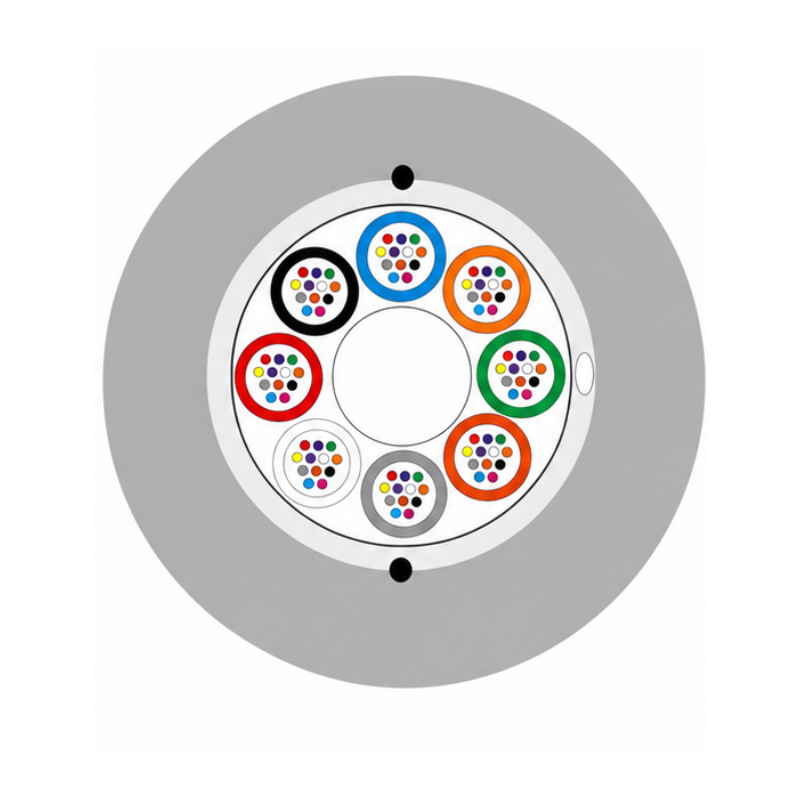

• 12 fibres per loose tube (12FO tube design)

• Designed for blown fibre microduct installations

• High fibre density within a compact cable design

• Water-blocked construction

• HDPE anti-rodent outer sheath

• Lightweight for faster installation

• Manufactured to IEC, ITU-T, Telcordia GR-20, RoHS and REACH standards

• Sold per metre

Technical Specifications:

• Product Type: Blown Fibre Optic Cable

• Fibre Count: 72F

• Fibre Tube Configuration: 12FO Tube

• Fibre Type: ITU-T G.657A1 Singlemode

• Fibre Size: 250µm

• Outer Sheath: HDPE (Black)

• Sheath Protection: Anti-Rodent

• Water Blocking: Gel-Filled Tubes and Water-Swellable Yarn

• Cable Diameter: 4.5 ±0.3mm

• Cable Weight: 15 ±5kg/km

• Tensile Strength: 200N

• Crush Resistance: 1000N (IEC 60794-1-21-E3)

• Impact Resistance: 1Nm (IEC 60794-1-21-E4)

• Minimum Bend Radius: 20 × Cable Diameter

• Water Penetration: 1m Water Head, 3m Sample, 24 Hours

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -20°C to +70°C

• Optical Attenuation:

  • ≤0.36dB/km @1310nm

  • ≤0.23dB/km @1550nm

• Compliance:

  • IEC

  • ITU-T G.657A1

  • Telcordia GR-20

  • RoHS

  • REACH

• Sold Per: Metre

Applications:

• FTTH network deployments

• FTTX infrastructure

• Blown fibre installations

• Microduct fibre networks

• Telecommunications infrastructure

• Broadband network expansion

• High-density fibre deployments

• Metropolitan access networks

• Campus fibre installations

• ISP backbone networks
