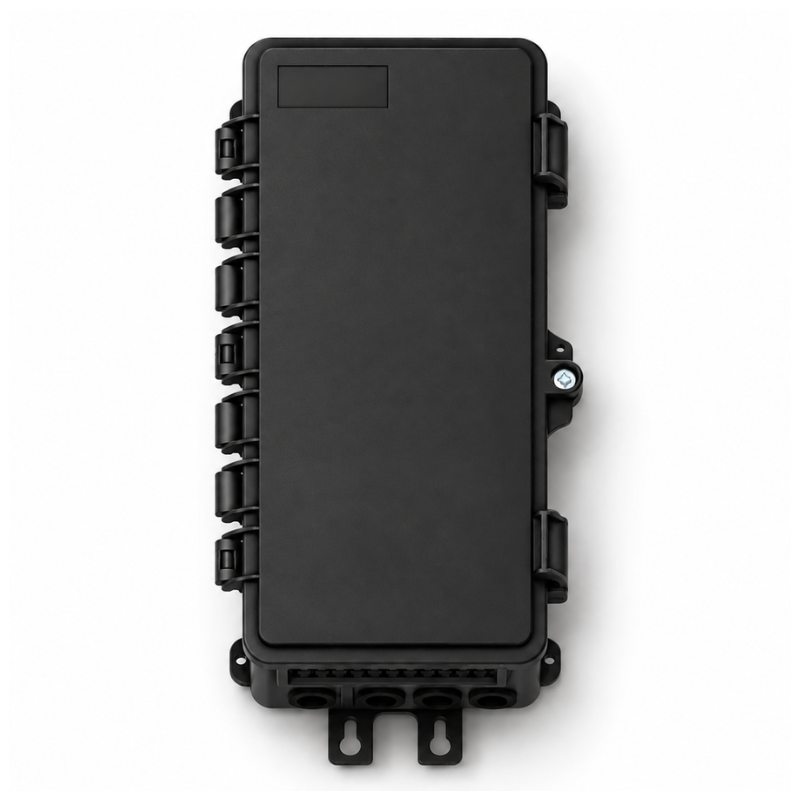

ASN 24F – Loaded with 24 LC/APC Adaptors – Black
The ASN 24F – Loaded with 24 LC/APC Adaptors – Black is a compact 24-fibre distribution point (FDP) designed for FTTH access networks, providing a secure solution for fibre splicing, termination and customer connections. Supplied with 24 pre-installed LC/APC adaptors, it offers a convenient and efficient platform for fibre distribution while simplifying installation, commissioning and future network expansion.
Designed for both wall and pole mounting, the enclosure features 24-fibre splice capacity, integrated cable storage, feeder and drop cable management, an IP54-rated enclosure and support for mid-span cable entry. Manufactured from PC+ABS UL94 V-0 material, it provides reliable protection for indoor and outdoor FTTH deployments.
Its compact design enables fast installation while maintaining organised cable routing and secure fibre management, making it ideal for fibre access networks, customer connection points and passive optical network (PON) deployments.
Key Features:
-
24-fibre splice capacity
-
Supplied with 24 LC/APC adaptors
-
Wall and pole mounting
-
IP54-rated enclosure
-
Supports feeder and drop cable management
-
Mid-span cable entry capability
-
Integrated cable storage bracket
-
Manufactured from PC+ABS UL94 V-0
-
Black enclosure
-
Suitable for indoor and outdoor FTTH installations
Technical Specifications:
-
Product Type: FTTH Fibre Distribution Point (FDP)
-
Splice Capacity: 24 Fibres
-
Connector Type: LC/APC
-
Number of Adaptors: 24
-
Mounting: Wall or Pole
-
Protection Rating: IP54
-
Material: PC+ABS UL94 V-0
-
Colour: Black
-
Feeder Cable Entry Points: 4
-
Feeder Cable Diameter: 5–14mm
-
Drop Cable Exit Points: 24
-
Drop Cable Diameter: 2–5mm
-
Splice Method: Heat Shrink
-
Cable Configuration: Mid-Span Compatible
Applications:
-
FTTH distribution networks
-
Fibre access networks
-
Customer connection points
-
External fibre distribution
-
Pole-mounted fibre installations
-
Wall-mounted fibre installations
-
Residential broadband deployments
-
Multi-dwelling unit (MDU) networks
-
Passive optical networks (PON)
-
Telecommunications infrastructure
