VIAVI SmartOTDR PREMIUM Install & Maintenance Kit
The VIAVI SmartOTDR PREMIUM Install & Maintenance Kit is a complete, field-ready testing solution designed for fibre network installation, certification, and maintenance. Combining precision, portability, and practicality, this all-in-one kit is ideal for FTTH and access network engineers who require reliable performance and easy operation on site.
Equipped with a SmartOTDR handheld tester featuring 1310/1550/filtered 1650nm wavelengths, the kit delivers fast, accurate fault detection and loss measurement, while the included accessories ensure maximum versatility and convenience for any fibre testing scenario.
Key Features:
-

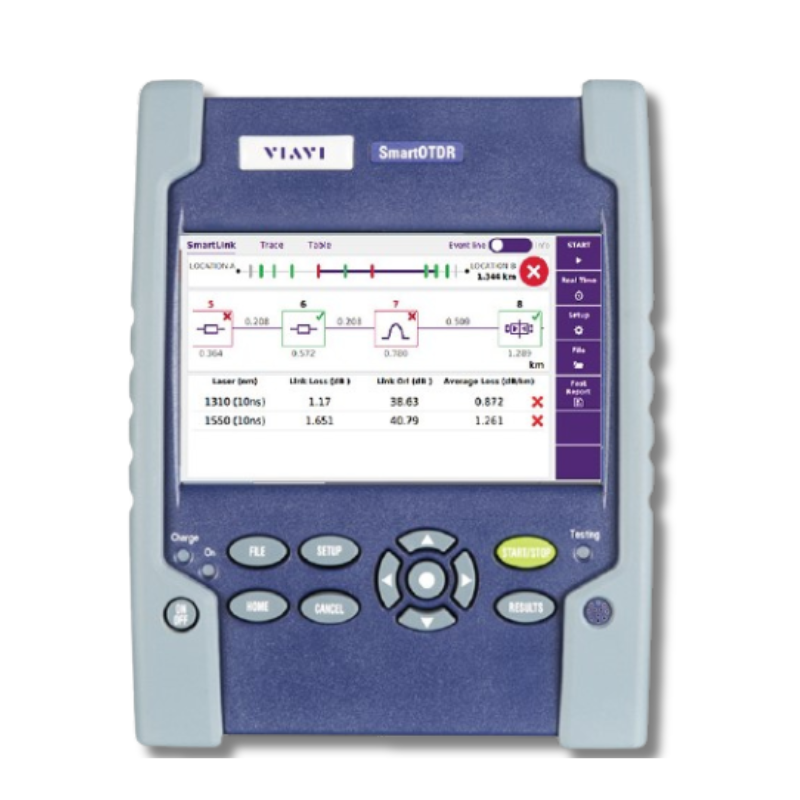

SmartOTDR handheld tester (1310/1550/filtered 1650nm B-range) with integrated Optical Light Source
-
Optical Power Meter (E10PM) using the same port as OTDR
-
Visual Fault Locator (E10VFL) with 2.5mm UPP adapter for quick fibre break detection
-
Built-in WiFi connectivity (E10WIFI) for remote control and data sharing
-
Additional Lithium Polymer battery (E10LiPo) for extended operation time
-
Hands-free soft case with neck strap (E10GLOVE) for convenient field use
-
SC/APC port adaptor (EUSCADS-APC) for compatibility with FTTH connectors
-
Large, durable carrying case (FBPP-SCASE2) for safe transport and storage
-
Tailored FTTH OTDR application (ESMARTFTTH-100-BASE) for PON network testing and analysis
Technical Specifications:
-
Wavelengths: 1310nm / 1550nm / filtered 1650nm
-
Dynamic Range: B-range (ideal for FTTH and access networks)
-
Functions: OTDR, Optical Light Source, Power Meter, VFL
-
Connectivity: Built-in WiFi
-
Battery: Rechargeable Li-ion (with spare included)
-
Interface: Touchscreen display with intuitive SmartOS software
-
Applications: FTTH installation, PON architecture validation, fault location, and maintenance
-
Accessories Included: Case, adaptors, batteries, WiFi module, FTTH app licence
