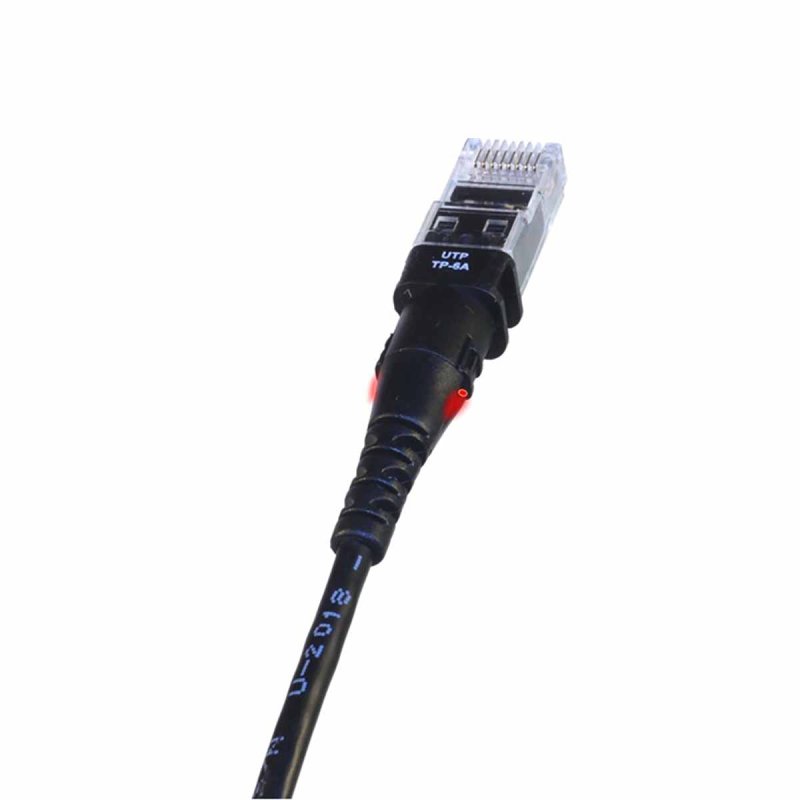

The RJ45 cable with light identification integrates Patchsee and Patchclip technologies, offering easy and quick identification. Compatible with Pro-Patchlight light injectors, this cable facilitates connection and accessibility, especially in high-density environments.
Key Features:
Patchsee and Patchclip technologies for simple identification (16 available colors)
11 available lengths from 0.6m to 4.9m
Black sheath and reference and length marking on the sleeve
UTP and FTP 100 Ohms versions
Compatible with categories 5e, 6, 6a (TIA/EIA-568.2-D and ISO/IEC 11801-2:2017 standards)
Application up to 10 Gbit/s
Slim sleeve aligned with RJ45 connector for better density
AWG 28 tinned copper conductor and plastic fiber optic waveguide
Overall diameter: 3.8 mm and bending radius of 11.4 mm
Technical Specifications:
4 pairs - Type: U-UTP
Tinned copper wire, 7 / 0.124 +/- 0.003 mm
Insulation: High-density polyethylene
Optical waveguide: 2 plastic optical fibers of 0.5 mm
PVC sheath |
